Запчасти Bobcat E16 BOOM CYLINDER HYDRAULIC SYSTEM

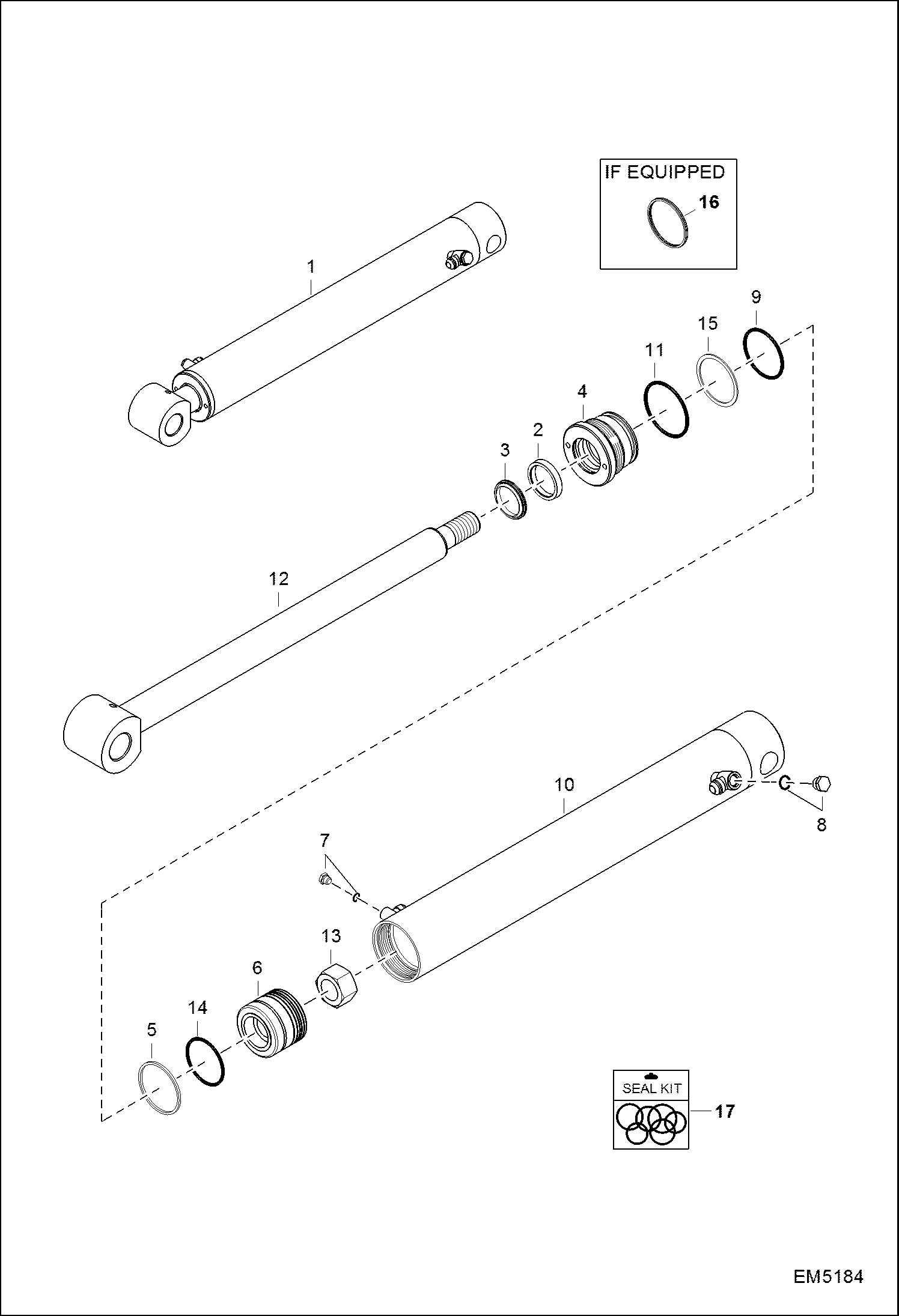

Схема запчастей Bobcat E16 - BOOM CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7168435

CYLINDER ASSY BOOM Ref. 2-15

2

6669267

SEAL

3

6687000

WIPER ROD

4

6800686

HEAD, CYL TILT

5

6516229

PISTON SEAL

6

6810539

NUT

7

6812170

PLUG

7

75K3

O-RING

8

6812171

PLUG

8

75K3

O-RING

9

73K332

RING

10

7168437

TUBE ASSY W/Ref. 7-8 & 11

11

54K40224

O-RING

12

7168439

SHAFT

13

7169086

PISTON

14

54K30210

O-RING

15

54K60212

O-RING Was 7008356 - D

16

7135489

KIT, SEAL Ref. 2-3, 5-6, 9, 11 & 14-15

Выбрано товаров: 18
