Запчасти Bobcat E16 TRACK CYLINDER (Used W/ Expandable Undercarriage Option) ACCESSORIES & OPTIONS

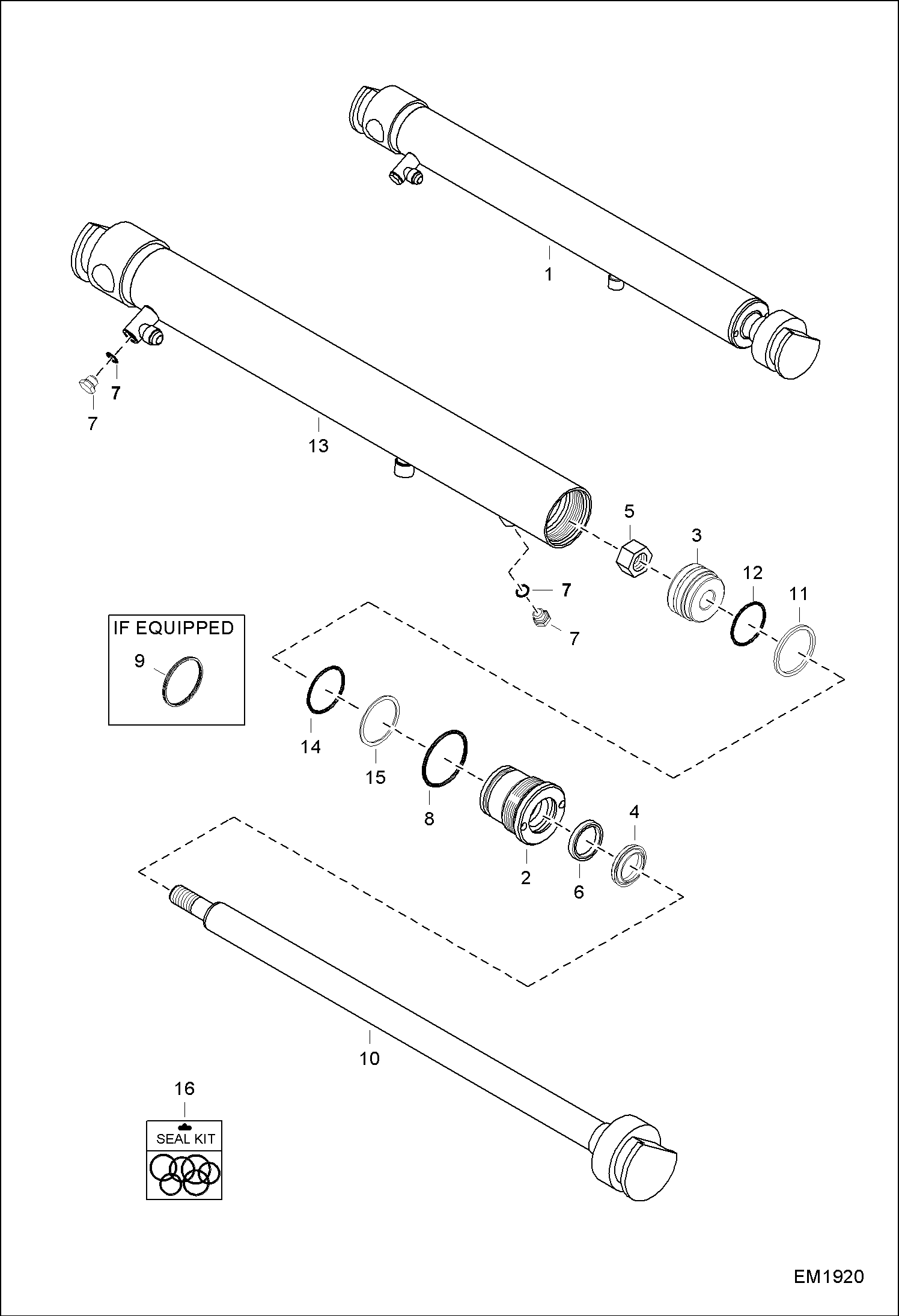

Схема запчастей Bobcat E16 - TRACK CYLINDER (Used W/ Expandable Undercarriage Option) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7114692

CYLINDERASSY 319K UC Ref. 2-15

2

6586542

HEAD

3

6586543

PISTON

4

6666542

SEAL, WIPER ROD

5

92D10

NUT

6

6667323

SEAL

7

6812170

PLUG

7

75K3

O-RING

8

82K132

O-RING HYDRAULIC Was 58K000132 - A

9

7008782

SEAL, QUAD

10

7114693

SHAFT W/A

11

6532453

RING

12

25K30110

O RING 10 Was 54K30110 - A

13

7114696

TUBE ASSY SERVICE W/Ref. 7 & 8

14

58K222

O-RING

15

73K222

RING

16

7138014

SEAL KIT Ref. 4-6, 8-9 & 11-12

Выбрано товаров: 17
