Запчасти Bobcat E14 HYDRAULIC CIRCUITRY (Boom) HYDRAULIC SYSTEM

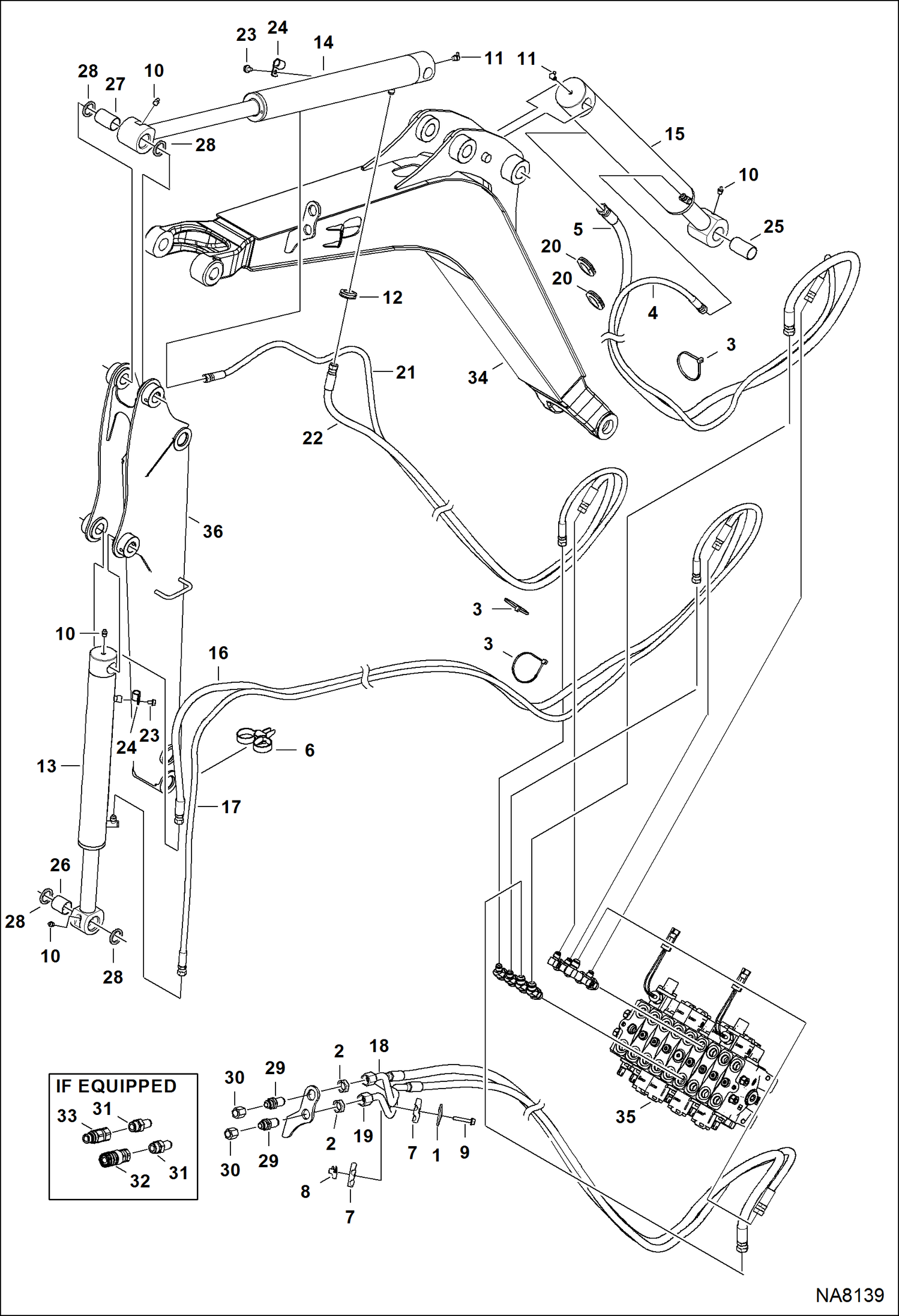

Схема запчастей Bobcat E14 - HYDRAULIC CIRCUITRY (Boom) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6652521

PLATE

2

86F7

LOCK NUT

3

6624289

STRAP, TIE

4

7174956

HOSE, HYD

5

7204433

HOSE, HYD Was 7174957 - A

6

6678668

STRAP, DUAL TIE

7

6701893

CLAMP

8

6676169

NUT

9

29CM845

BOLT

10

10H25

FITTING, GREASE 5

11

12H15

FITTING, GREASE 5

12

7135240

GROMMET ELIPTICAL

13

7167729

CYLINDER, BUCKET

14

7168938

CYLINDER, ARM

15

7169170

CYLINDER, BOOM

16

7173103

HOSE, HYD

17

7173104

HOSE, HYD

18

7173105

TUBELINE

18

7228884

TUBELINE

19

7173106

TUBELINE

20

7173764

GROMMET

21

7174954

HOSE, HYD

22

7174955

HOSE, HYD

Выбрано товаров: 23
