Запчасти Bobcat E14 HYDRAULIC CIRCUTRY (Lower Group) (AHNM22001 & Above) HYDRAULIC SYSTEM

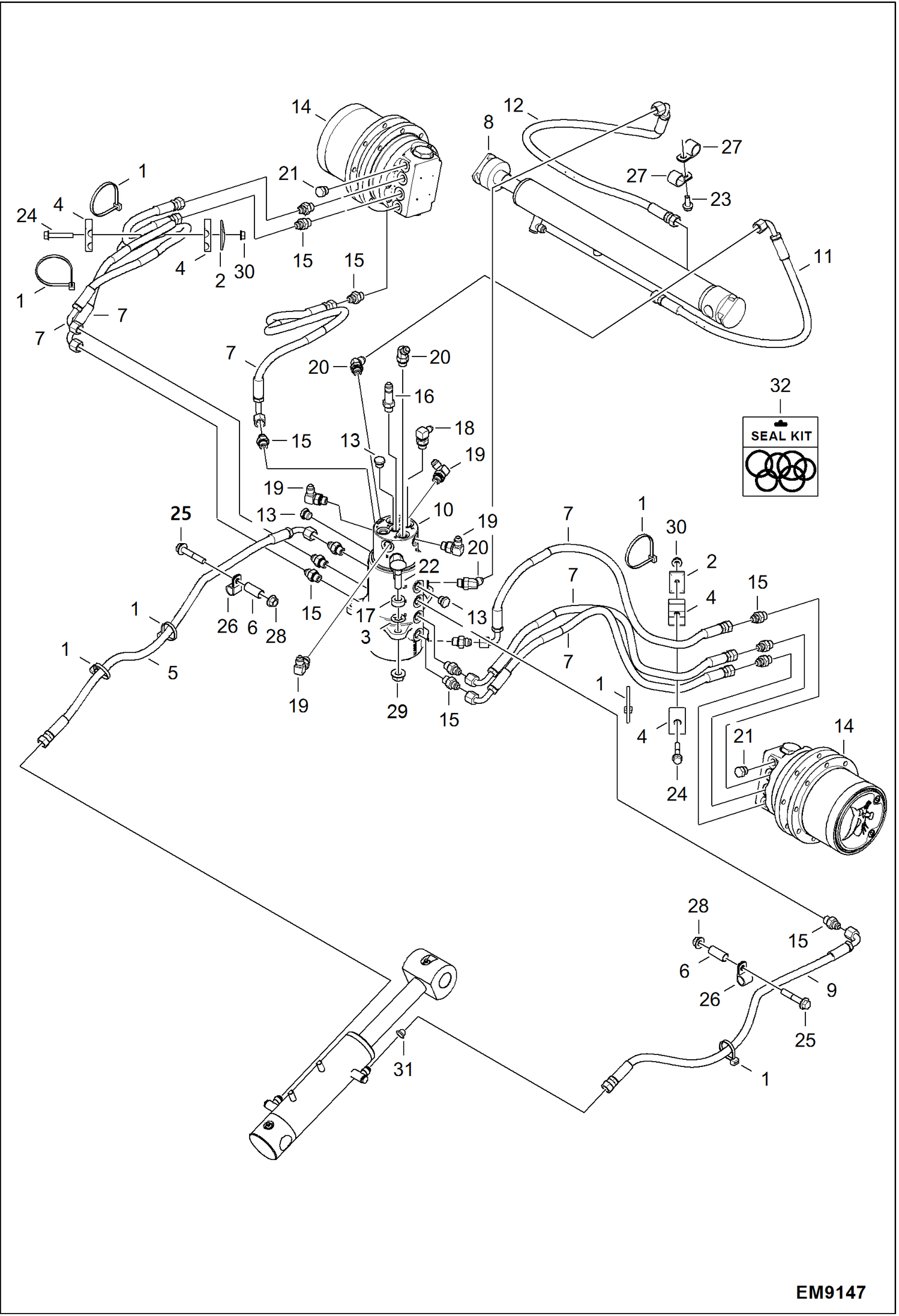

Схема запчастей Bobcat E14 - HYDRAULIC CIRCUTRY (Lower Group) (AHNM22001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6652521

PLATE

3

6690637

RETAINER

4

6701893

CLAMP

5

6805758

HOSE

6

6805878

SPACER

7

7103834

HOSE ASSY

8

7114692

CYLINDERASSY 319K UC

9

7117443

HOSE ASSY

10

7199077

SWIVEL ASSY

11

7179273

HOSE, HYD

12

7179274

HOSE, HYD

13

6812171

PLUG one speed only

14

6685976

MOTOR, DRIVE

15

15KB0606

FITTING, HYD CONNECTOR

15

79K6

O RING 10

16

16KB0606

FTG HYD L CONNECTOR

16

79K6

O RING 10

17

7199635

WASHER

18

17KB0406

FITTING, HYD ELBOW

18

79K6

O RING 10

19

17KB0606

FITTING

19

79K6

O RING 10

20

18KB0606

FITTING, HYD ELBOW

20

79K6

O RING 10

21

24K5

PLUG

22

33CM1250

BOLT

23

29CM816

SCREW

24

29CM845

BOLT

25

29CM1055

BOLT

26

30H38

CLIP

27

30H65

CLIP

28

43DM10

NUT

29

51DM12

NUT

30

51DM8

NUT

31

6586430

ORIFICE

32

7000439

KIT MAJOR REBUILT major rebuild

Выбрано товаров: 37
