Запчасти Bobcat E14 HYDRAULIC CIRCUITRY (Upper Group) (AHNM22001 & Above) HYDRAULIC SYSTEM

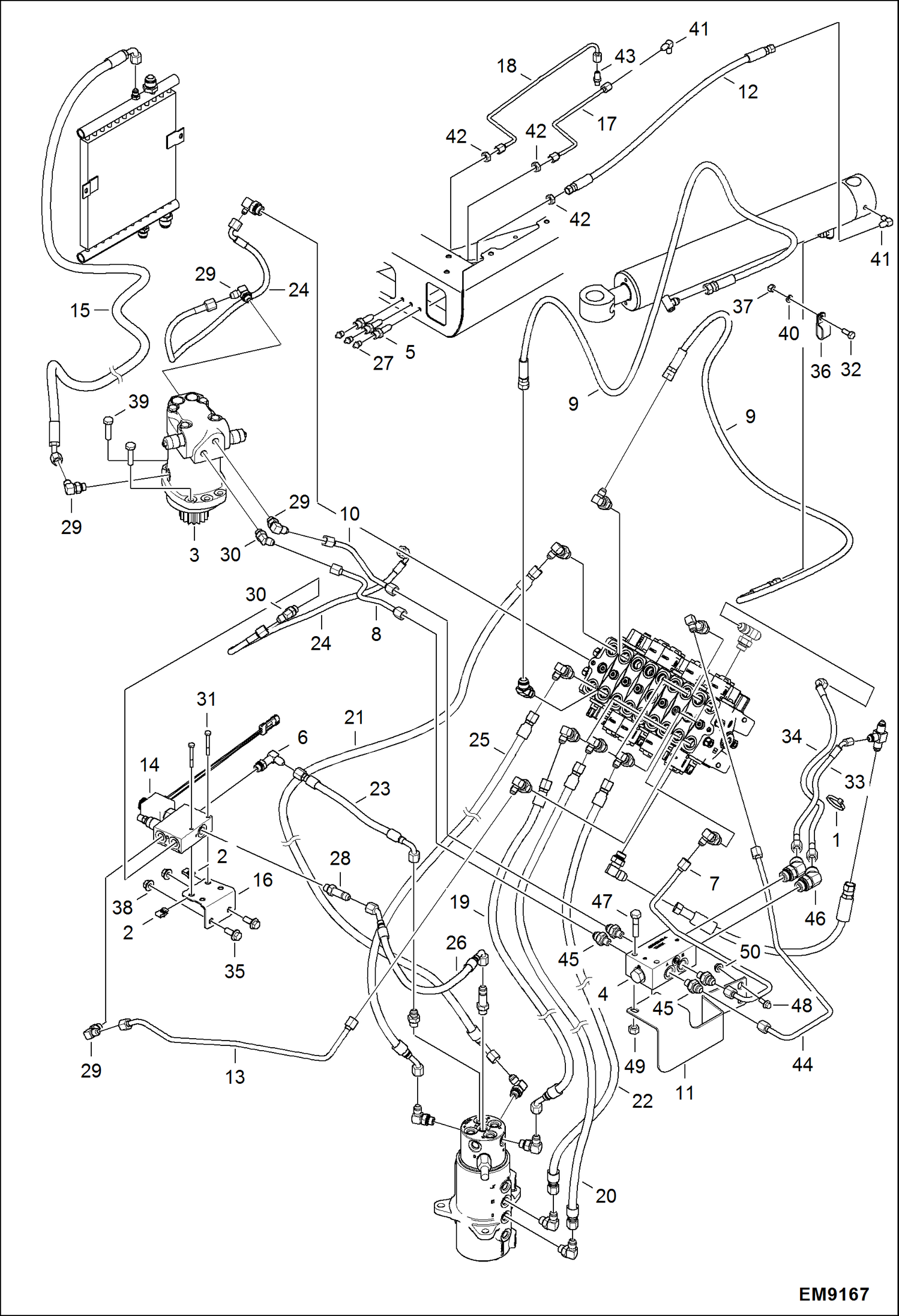

Схема запчастей Bobcat E14 - HYDRAULIC CIRCUITRY (Upper Group) (AHNM22001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6682345

STRAP, TIE 8

2

6676026

NUT

3

6685834

MOTOR

4

7003480

VALVE, LOCK SLEW

5

6807184

FITTING

6

6812815

FITTING

7

7170107

TUBELINE

8

7170340

TUBELINE

9

7108857

HOSE ASSY

10

7170341

TUBELINE

11

7170402

HOLDER

12

7112340

HOSE ASSY

13

7185723

TUBELINE

14

7186806

VALVE SELECTOR

15

6727058

HOSE Was 7186934 - A

16

7188014

BRACKET

17

7190196

TUBELINE

18

7190197

TUBELINE

19

7198574

HOSE HYDRAULIC ASSY

20

7198575

HOSE HYDRAULIC ASSY

21

7198577

HOSE HYDRAULIC ASSY

22

7198578

HOSE HYDRAULIC ASSY

23

7198580

HOSE HYDRAULIC ASSY

24

7198581

HOSE HYDRAULIC ASSY

25

7236801

HOSE, HYD Was 7198583 - A

26

7212677

HOSE, HYD

27

10H25

FITTING, GREASE 5

28

16KB0606

FTG HYD L CONNECTOR

28

79K6

O RING 10

29

17KB0606

FITTING

29

79K6

O RING 10

30

18KB0606

FITTING, HYD ELBOW

30

79K6

O RING 10

31

1CM650

SCREW

32

1CM820

BOLT

33

7175451

HOSE, HYD

34

7175450

HOSE, HYD

35

29CM1025

BOLT

36

31H31

CLIP

37

4DM8

NUT

38

51DM10

NUT

39

53CM1040

SCREW

40

6EM80

WASHER, SPRING

41

83F3

ELBOW 5

42

86F3

LOCKNUT

43

89F3

ADAPTOR

44

7209609

TUBELINE

45

15KB0608

FITTING, HYD CONNECTOR

45

79K8

O RING 10

46

18KB0404

FTG HYD ELBOW 45

46

79K4

O RING 10

47

29CM1070

BOLT

48

29CM825

BOLT

49

51DM10

NUT

50

51DM8

NUT

Выбрано товаров: 55
