Запчасти Bobcat E14 STEERING CONTROLS (AHNM22001 & Above) CONTROLS

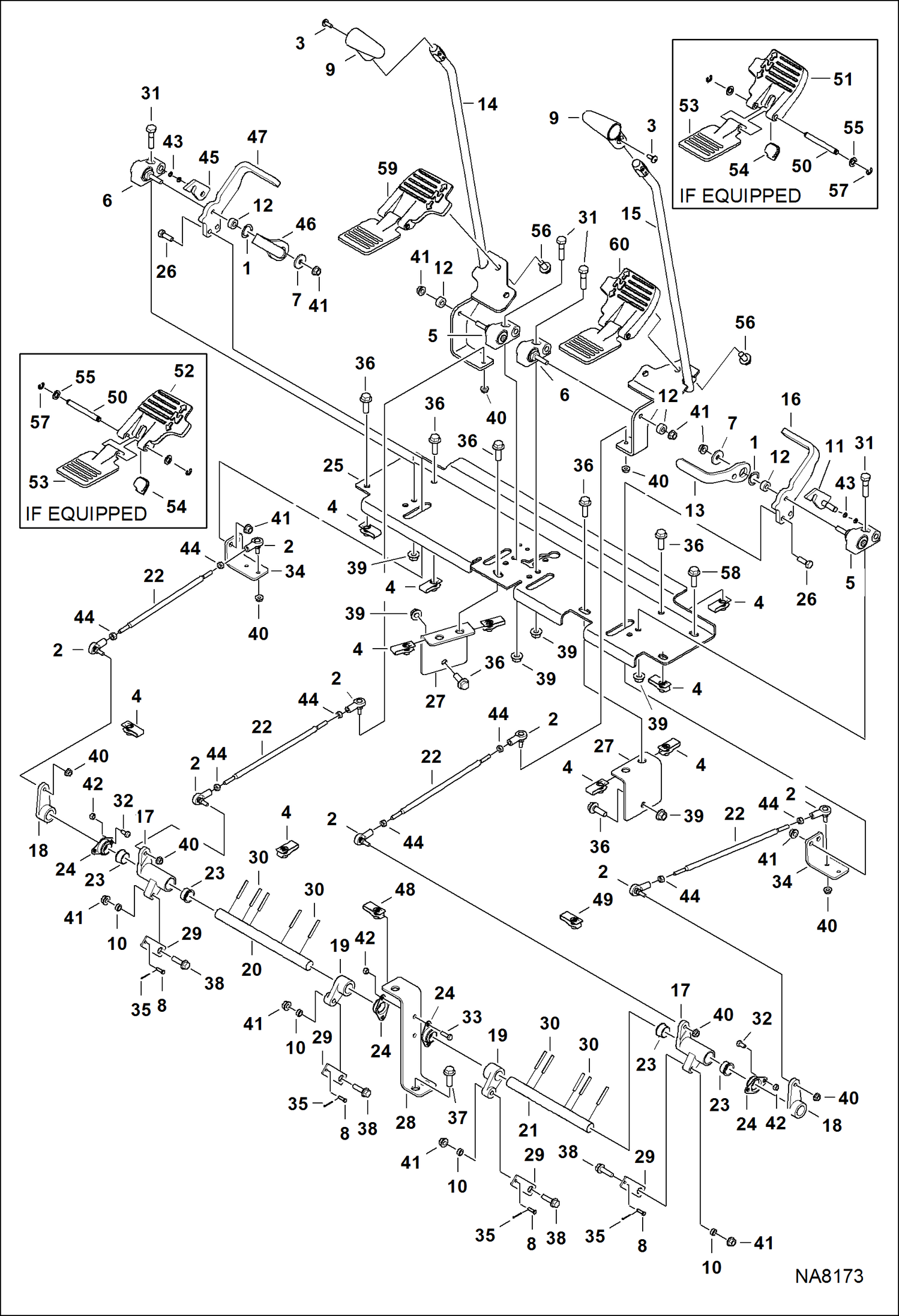

Схема запчастей Bobcat E14 - STEERING CONTROLS (AHNM22001 & Above) CONTROLS

Артикул

Название

Примечание

Количество

1

6536803

WASHER

2

6631036

JOINT

3

6803202

SCREW

4

6675722

NUT

5

6677904

BEARING

6

6677908

BEARING

7

6701174

WASHER

8

6801068

PIN

9

7163788

HANDLE, LEVER CONTROL

10

6807220

SPACER

11

6809194

LOCK

12

6810303

SPACER

13

6810508

PEDAL

14

7218711

LEVER, CONTROL

15

7218712

LEVER, CONTROL

16

7179863

PEDAL

17

7108516

BELLCRANK MACHINED

18

7108518

BELLCRANK MACHINED

19

7108520

BELLCRANK MACHINED

20

7108920

SHAFT

21

7108924

SHAFT

22

7108966

ROD THREADED

23

7111975

BUSHING

24

7112044

BEARING FLANGE

25

7218771

PLATE

26

1CM825

BOLT

27

7114500

BRACKET

28

7186069

BRACKET

29

7114502

LINK

30

14J2124

ROLLPIN

31

1CM1040

BOLT

32

1CM612

BOLT

33

1CM620

BOLT

34

7172666

LINK, PEDAL

35

1F212

PIN

36

29CM1030

BOLT

37

29CM816

SCREW

38

29CM830

CAPSCREW

39

51DM10

NUT

40

98D4

NUT

41

51DM8

NUT

42

53DM6

NUT

43

54K20008

O-RING

44

62D4

NUT

45

6808930

LOCK

46

6810511

PEDAL

47

7116275

PEDAL LH

48

6676169

NUT

49

7186077

CLIP

50

7164061

PIN, HINGE

51

7167166

PEDAL, RH

52

7167167

PEDAL, LH

53

7167168

PEDAL, BACK

54

7181057

GROMMET

55

15EM100

WASHER

56

29CM1020

BOLT

57

9JM70

RETAINER SHAFT

58

29CM1025

BOLT

59

7210820

PEDAL ASSY RH

60

7210821

PEDAL ASSY LH

Выбрано товаров: 60
