WATER FLANGE AND THERMOSTAT

Запчасти Bobcat E08 WATER FLANGE AND THERMOSTAT POWER UNIT

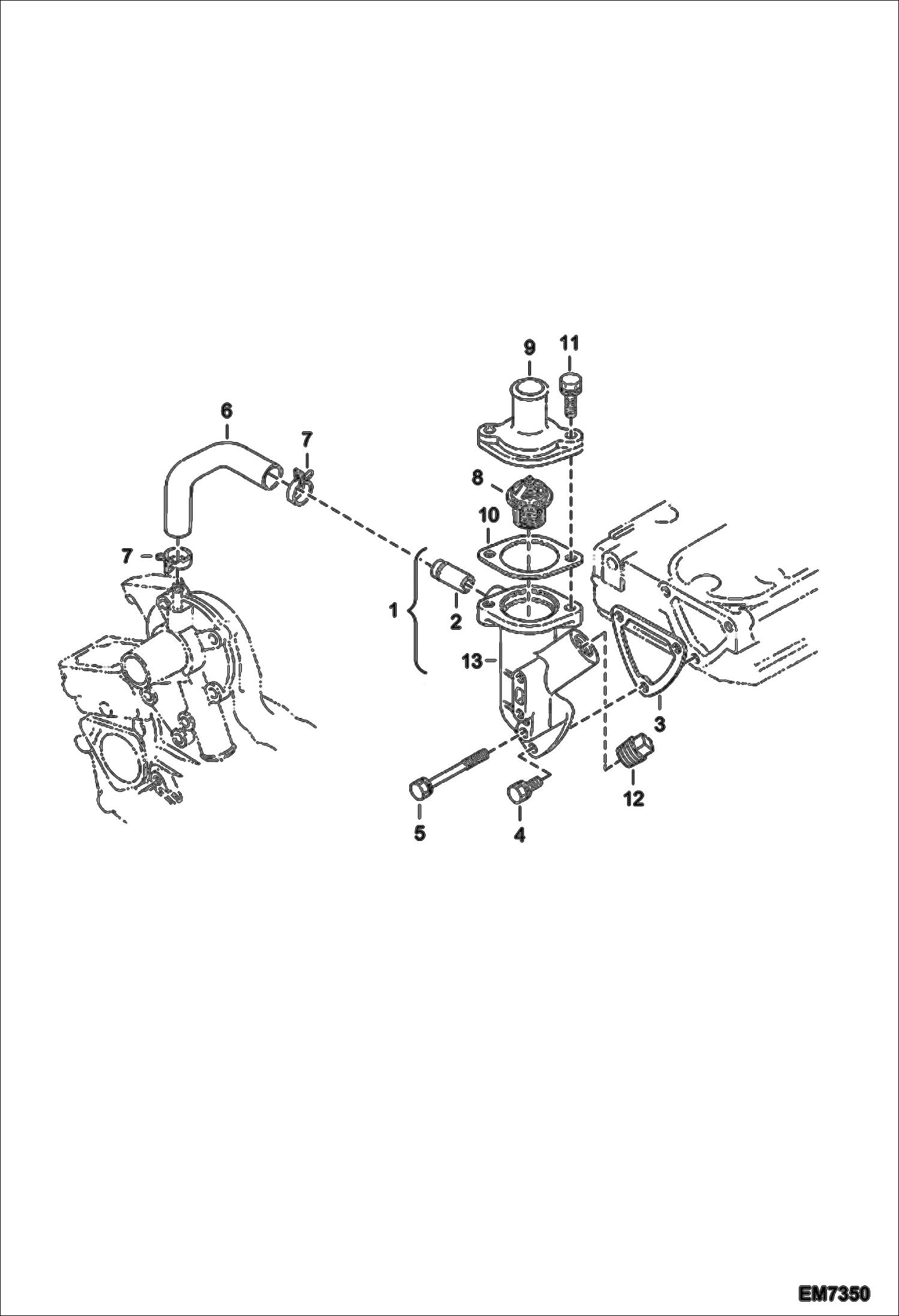

Схема запчастей Bobcat E08 - WATER FLANGE AND THERMOSTAT POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6670499

FLANGE W/Ref. 2 & 13

2

6670785

PIPE

3

6670500

GASKET

4

1CM616

SCREW Was 4CM616 - A

5

6670770

BOLT

6

6670502

HOSE

7

6680580

CLAMP

8

6652760

THERMOSTAT

9

6688082

COVER

10

6681757

GASKET THERMOSTAT

11

6653584

BOLT

12

6684857

PLUG

13

FLANGE, WATER NLA - Order Ref. 1
