FUEL CAMSHAFT AND GOVERNOR SHAFT

Запчасти Bobcat E08 FUEL CAMSHAFT AND GOVERNOR SHAFT POWER UNIT

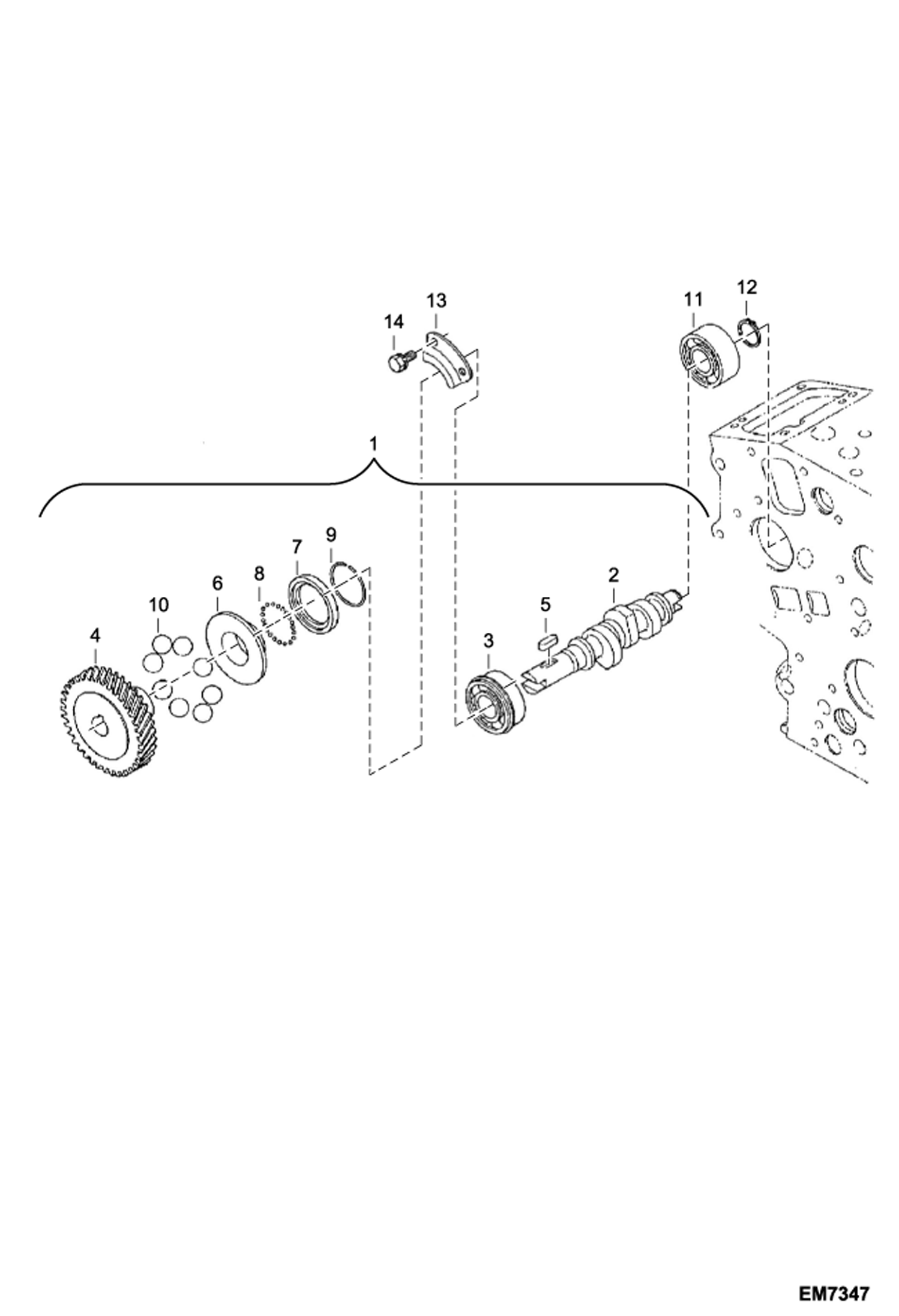

Схема запчастей Bobcat E08 - FUEL CAMSHAFT AND GOVERNOR SHAFT POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6670416

CAMSHAFT, FUEL W/Ref. 2-10

2

6670417

CAMSHAFT, FUEL

3

6683018

BEARING BALL

4

6670418

GEAR

5

3974226

KEY

6

7000495

SLEEVE

7

6670420

CASE, GOVERNOR BALL

8

6683019

BALL

9

3974210

RING

10

6652680

BALL

11

6687677

BEARING

12

6670422

CIR-CLIP

13

6670423

STOPPER

14

6652682

BOLT
