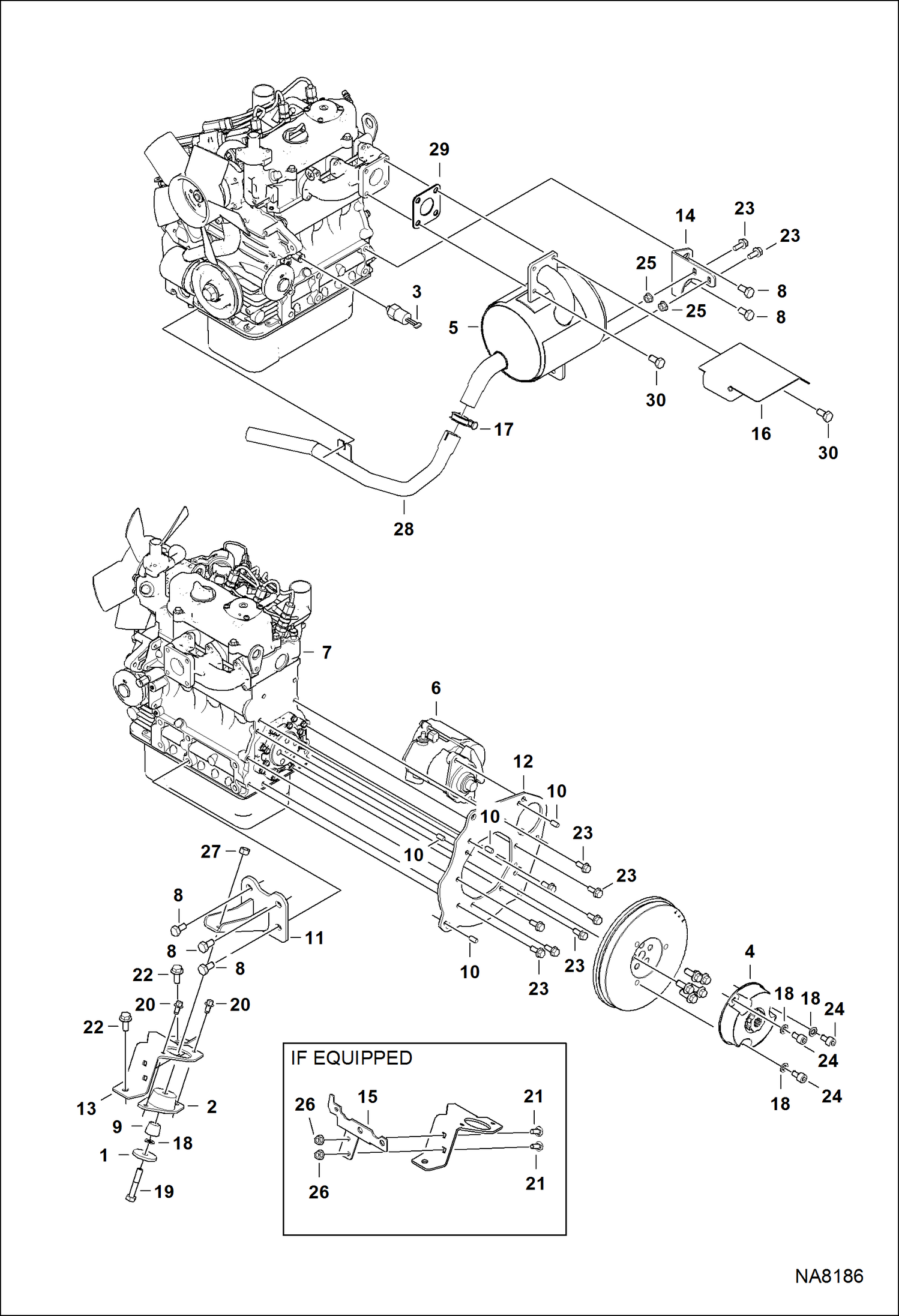

Запчасти Bobcat E08 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler) POWER UNIT

1

872229

WASHER

2

6653764

MOUNT

3

6676053

SWITCH

4

6691068

COUPLER PUMP

5

6691283

MUFFLER SPARK ARSR

6

6691621

STARTER

7

6696969

ENG, D722 10.2 HP EPA TIER 2 - EU STAGE II See Following Pages for Details

8

6733378

SCREW

9

6804522

SPACER

10

7101341

PIN

11

7116317

MOUNT ASSY, ENGINE - Was 71163117 - D

12

7133178

BASE HOUSING

13

7134687

BRACKET ENGINE

14

7135293

SUPPORT MUFFLER

15

7144187

MOUNT VALVE if equipped

16

7148327

SHIELD

17

7152905

CLAMP EXHAUST

18

15EM100

WASHER

19

1CM1055

BOLT

20

26GM8016

SCREW

21

28CM820

BOLT if equipped

22

29CM1025

BOLT - Was 29CM1020 - A

23

29CM820

SCREW

24

3GM1016

SCREW HEX SOCKT 12.9

25

43DM8

NUT

26

51DM8

NUT if equipped

27

53DM10

NUT

28

6693359

PIPE TAIL

29

6960259

GASKET See Illustration COOLANT FILLER CAP/ EM7365

30

4CM822

BOLT See Illustration COOLANT FILLER CAP/ EM7365
