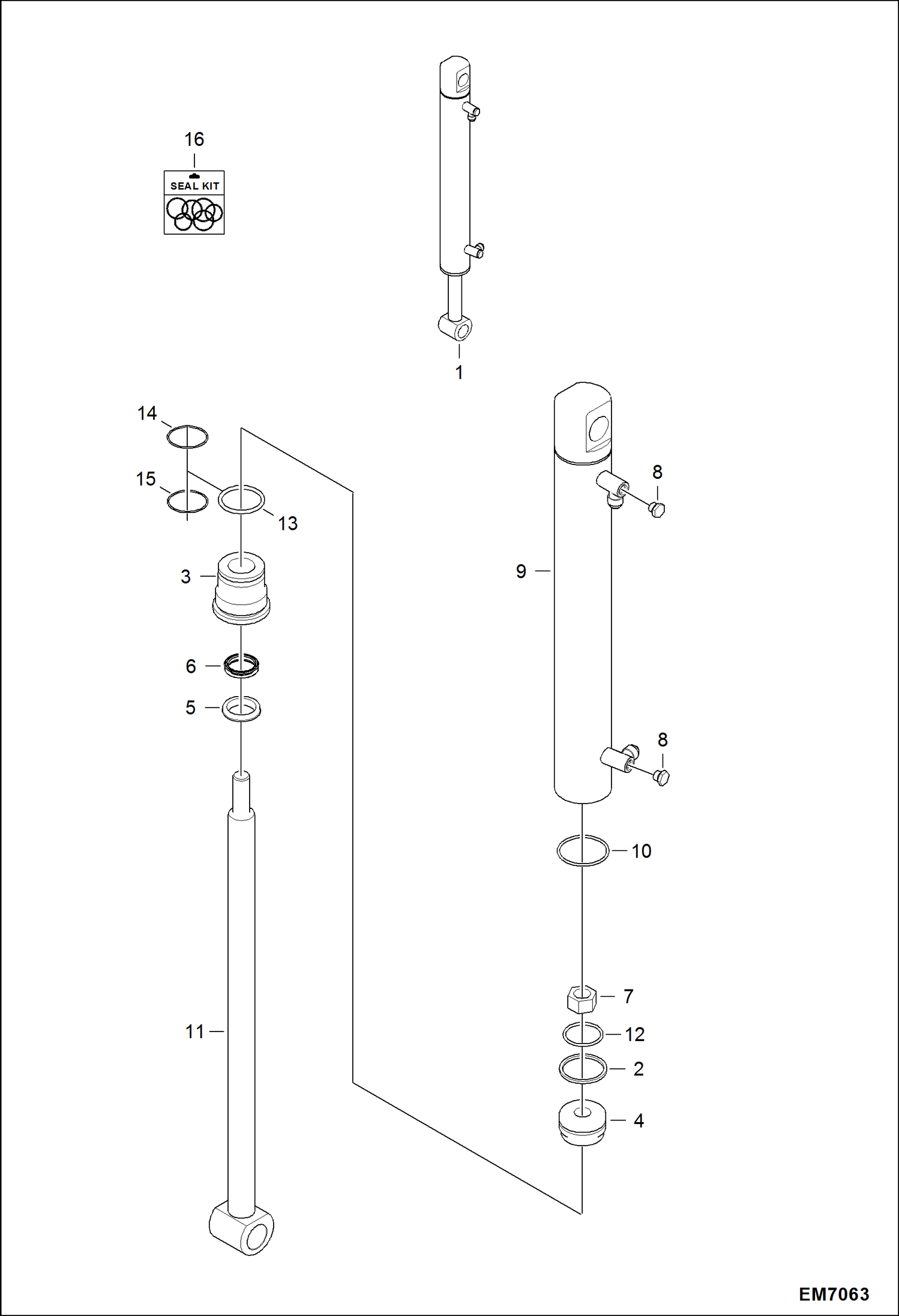

Запчасти Bobcat E08 TRACK FRAME EXPANSION CYLINDER HYDRAULIC SYSTEM

1

7141954

CYLINDER ASSY Ref. 2-15

2

6532453

RING

3

6586542

HEAD

4

6586543

PISTON

5

6666542

SEAL, WIPER ROD

6

6667323

SEAL

7

92D10

NUT

8

6812170

PLUG

8

75K3

O-RING

9

7141961

TUBE ASSY SERVICE W/Ref. 8 & 10

10

82K132

O-RING HYDRAULIC

11

7133244

SHAFT W/A

12

25K30110

O RING 10 Was 54K30110 - A

13

7008782

SEAL, QUAD Was 54K40116 - A

14

58K222

O-RING

15

73K328

RING

16

7138014

SEAL KIT Ref. 2-3, 6-7, 10, & 12-13
