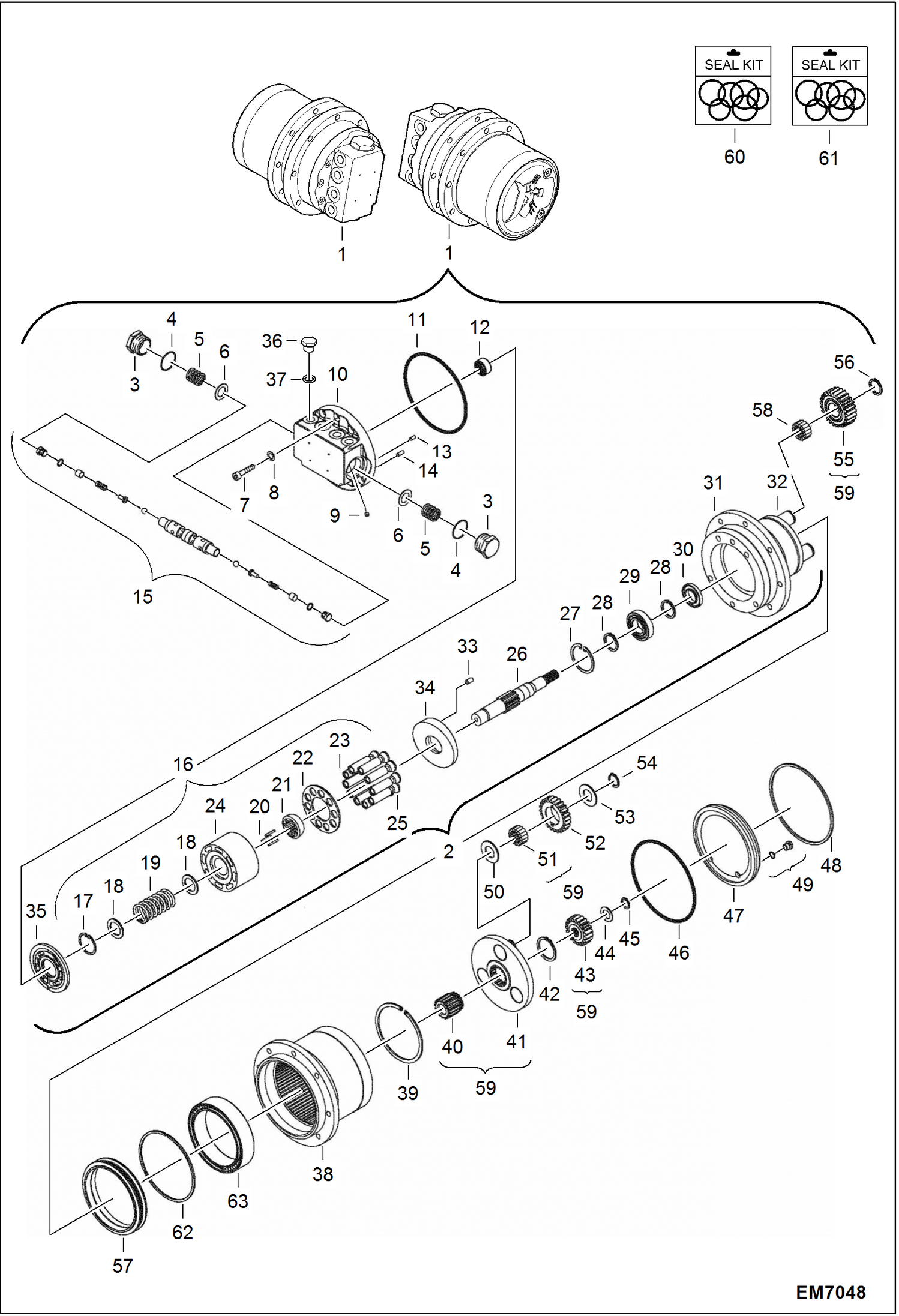

Запчасти Bobcat E08 DRIVE MOTOR (1 Speed) HYDRAULIC SYSTEM

1

6691106

MOTOR DRIVE 1 speed - W/Ref. 2-59

2

7000423

MOTOR W/O gear drive - W/Ref. 3-37

3

6688104

PLUG

4

7017789

O-RING

5

6688105

SPRING

6

6688106

WASHER

7

6688108

BOLT

8

6667788

WASHER

9

7000436

REGULATOR

10

7000424

COVER MOTOR

11

6667779

O-RING

12

6667781

BEARING

13

6667782

DOWEL PIN

14

6688111

PIN

15

6688115

VALVE

16

6667778

PISTON ASSY Ref. 17-25

17

7000433

RING RETAINING

18

7000427

WASHER

19

7000426

SPRING PUMPING DRUM

20

7017787

PIN

21

7000430

SUPPORT PISTON

22

7000428

PLATE PISTON

23

7000434

PISTON

24

7000425

DRUM PUMPING

25

7000429

BLOCK SLIDING

26

7017788

SHAFT

27

6667762

SNAP RING

28

6667756

SNAP RING

29

6688114

BEARING

30

6667774

SEAL

31

7000437

HUB

32

7000418

PIN

33

6671913

PIN

34

7010970

PLATE, SWASH

35

6671905

PLATE

36

6693118

PLASTIC PLUG

37

6692863

ORING

38

7000402

HOUSING OUTPUT

39

7000407

ACCESSORY SEEGER D.100

40

7000416

GEAR SUN

41

7000415

CARRIER PLANETARY

42

7000422

RING EXTERNAL SNAP

43

7000405

GEAR SUN

44

6688119

SHIM

45

6688118

RING

46

7000410

ORING

47

7000403

COVER END

48

7000409

RETAINER INT. BR130

49

6676161

PLUG W/ O-ring

50

7000420

WASHER

51

6667763

BEARING

52

7000417

GEAR PLANETARY

53

7000419

WASHER

54

7000421

RING EXTERNAL SNAP

55

7000404

GEAR PLANETARY

56

7000406

RING EXTERNAL SNAP

57

7000411

SEAL DOUBLE FRONT

58

7000412

BEARING NEEDLE

59

7000414

GEAR PLANETARY SET W/Ref. 40-41, 43, 52 & 55

60

7000439

KIT MAJOR REBUILT major rebuild - Ref. 4, 11, 30, 37, 46 & 57

61

7000438

KIT, BASE SEAL Ref. 4, 11, 30, 37 & 46

62

7000408

RING INTERNAL SNAP BR125

63

7000413

BEARING BALL
