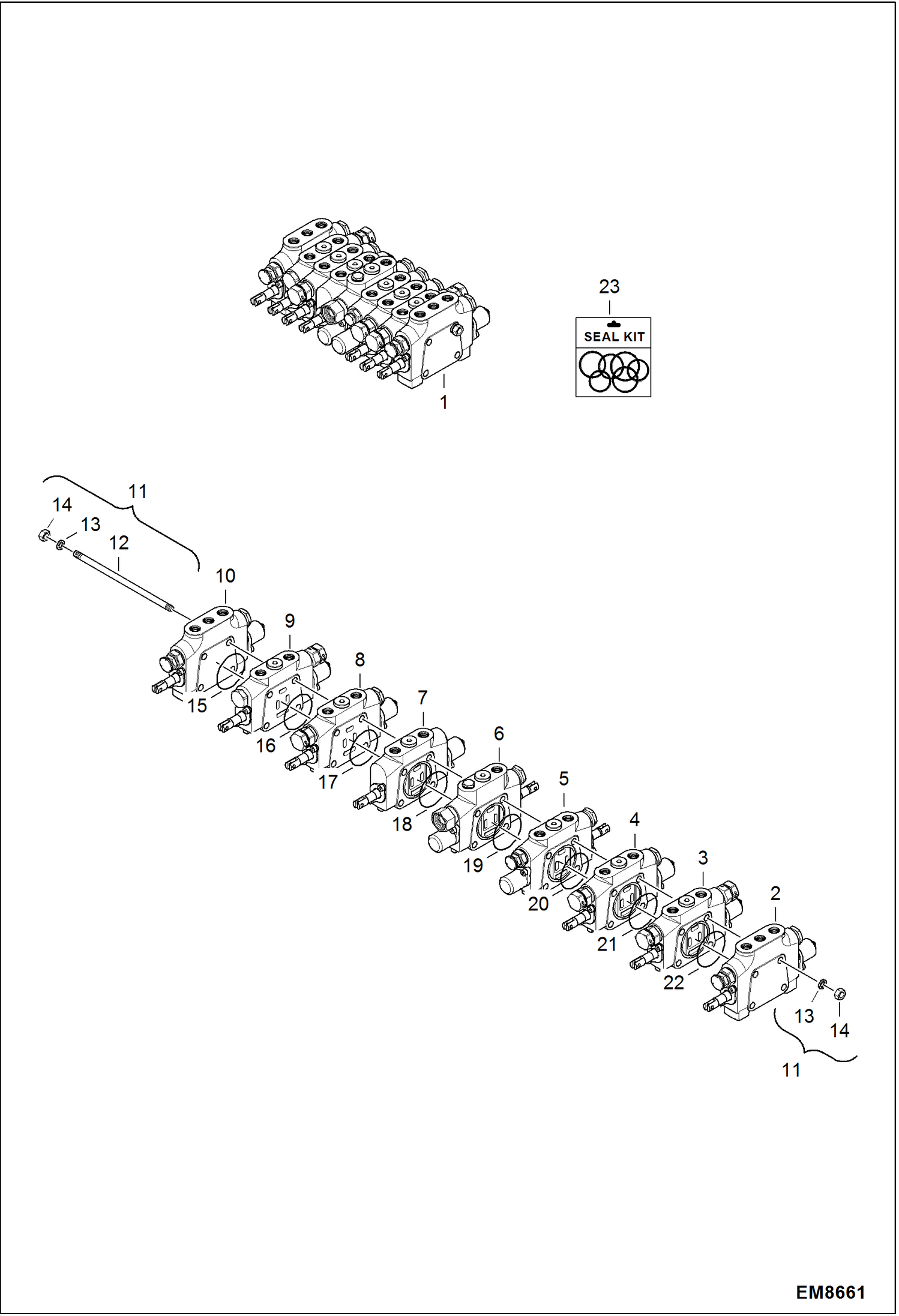

Запчасти Bobcat E08 CONTROL VALVE (Model 60100564MQ) (S/N A4BP11392 & Above) HYDRAULIC SYSTEM

1

7201898

VALVE, CONTROL Model 60100564MQ - Ref. 2-22

2

7000525

VALVE SECTION See Illustration VALVE SECTION/ EM7193 L.H. travel

3

7022008

VALVE, SECTION See Illustration VALVE SECTION/ EM8115 slew

4

7022009

VALVE, SECTION See Illustration VALVE SECTION/ EM8121 arm

5

7000528

VALVE SECTION See Illustration VALVE SECTION/ EM7182 offset

6

7000529

VALVE SECTION See Illustration VALVE SECTION/ EM7188 aux

7

7000530

VALVE SECTION See Illustration VALVE SECTION/ EM7196 blade

8

7022010

VALVE, SECTION See Illustration VALVE SECTION/ EM8122 bucket

9

7022011

VALVE, SECTION See Illustration VALVE SECTION/ EM8123 boom

10

7000533

VALVE SECTION See Illustration VALVE SECTION/ EM7166 R.H. travel

11

7000514

KIT TIE ROD Ref. 12-14

12

ROD, TIE NLA - Order Ref. 11

13

WASHER NLA - Order Ref. 11

14

NUT NLA - Order Ref. 11

15

SEAL NLA - Order Ref. 23

16

SEAL NLA - Order Ref. 23

17

SEAL NLA - Order Ref. 23

18

SEAL NLA - Order Ref. 23

19

SEAL NLA - Order Ref. 23

20

SEAL NLA - Order Ref. 23

21

SEAL NLA - Order Ref. 23

22

SEAL NLA - Order Ref. 23

23

7022012

KIT, SEAL Ref. 15-22
