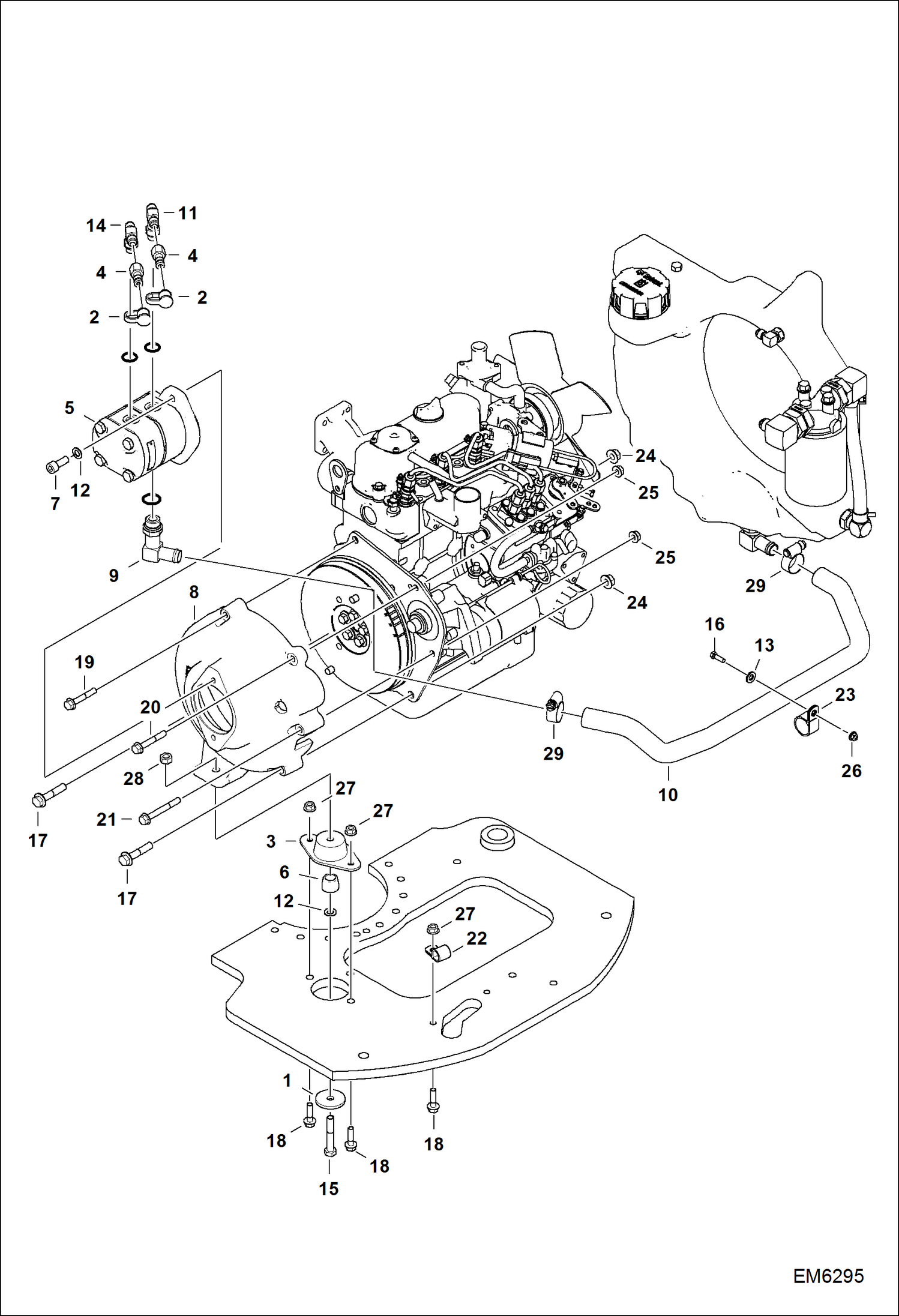

Запчасти Bobcat E08 HYDRAULIC PUMP CIRCUITRY HYDRAULIC SYSTEM

1

872229

WASHER

2

6630367

CAP

3

6653764

MOUNT

4

6661753

PLUG

5

6691175

PUMP GEAR See Illustration HYDRAULIC PUMP/ EM7007

6

6804522

SPACER

7

6805750

SCREW

8

7128152

MOUNT PUMP MACH

9

7135583

FITTING 90 DEADED W/ O-ring

9

79K10

O RING 10

10

7143814

HOSE FORMED OIL

11

7149331

FTG BRANCH TEE LONG W/ O-ring

11

79K10

O RING 10

12

15EM100

WASHER

13

15EM60

WASHER

14

19KB0606

TEE Was 19KB606 - D

14

79K6

O RING 10

15

1CM1060

BOLT

16

1CM620

BOLT

17

29CM1050

BOLT

18

29CM830

CAPSCREW

19

29CM850

SCREW

20

29CM855

SCREW HX FLGD HD CAP

21

29CM870

BOLT

22

30H38

CLIP

23

30H73

CLAMP

24

43DM10

NUT

25

43DM8

NUT

26

51DM6

NUT

27

51DM8

NUT

28

53DM10

NUT

29

5HM30

CLAMP
