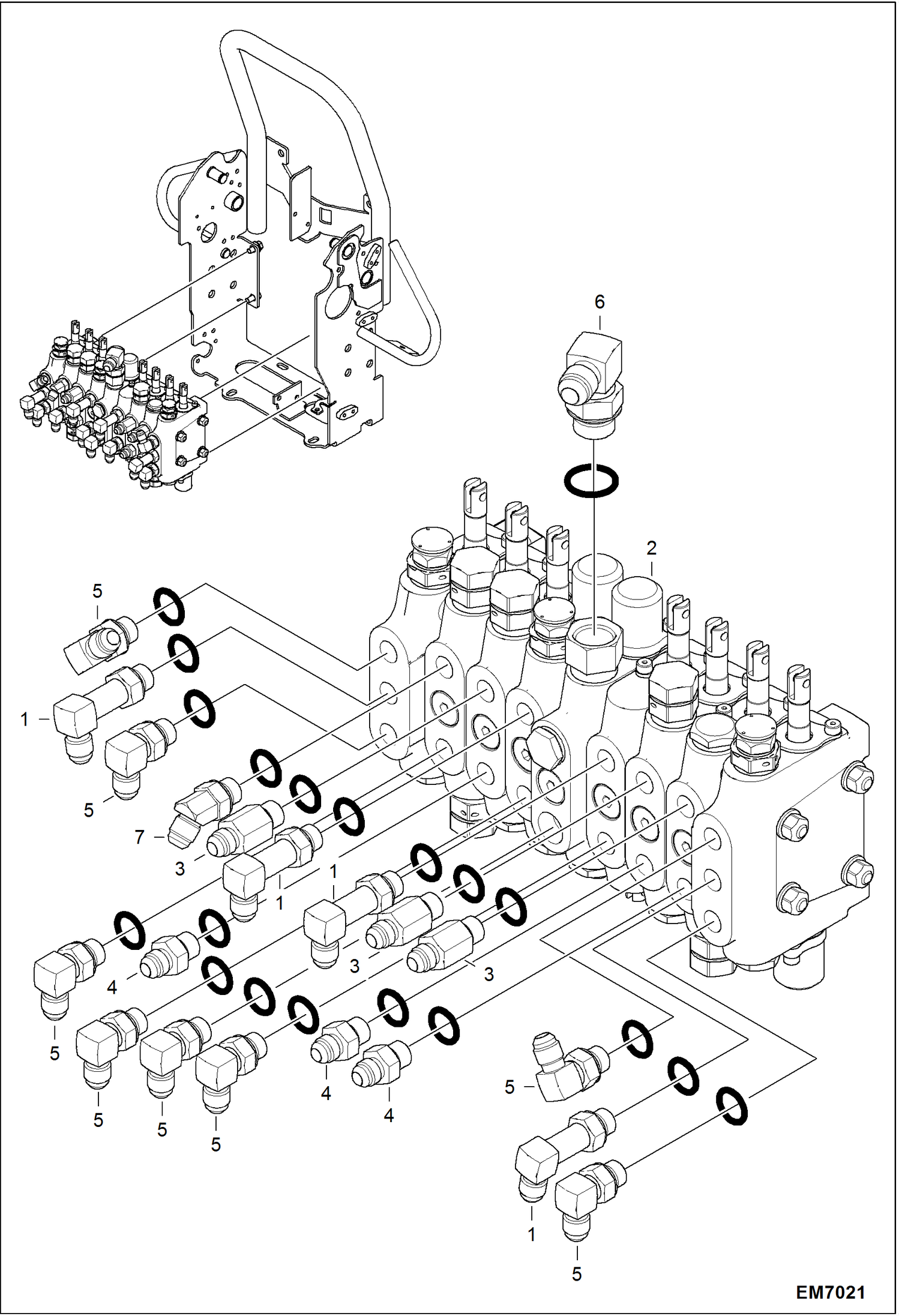

Запчасти Bobcat E08 HYDRAULIC CIRCUITRY (Control Valve Installation) HYDRAULIC SYSTEM

1

6812815

FITTING

1

79K6

O RING 10

2

VALVE, CONTROL See Illustration CONTROL VALVE/ EM7163 NLA Was 6691088 - A

2

VALVE, CONTROL See Illustration CONTROL VALVE/ EM7164 NLA Was 7003388 - A

2

7201898

VALVE, CONTROL See Illustration CONTROL VALVE/ EM8661

3

7135942

FTG STRAIGHT LONG

3

79K6

O RING 10

4

15KB0606

FITTING, HYD CONNECTOR Was 15KB606 - D

4

79K6

O RING 10

5

17KB0606

FITTING Was 17KB606 - D

5

79K6

O RING 10

6

17KB0810

FITTING, HYD ELBOW Was 17KB810 - D

6

79K10

O RING 10

7

18KB0606

FITTING, HYD ELBOW Was 18KB606 - D

7

79K6

O RING 10
