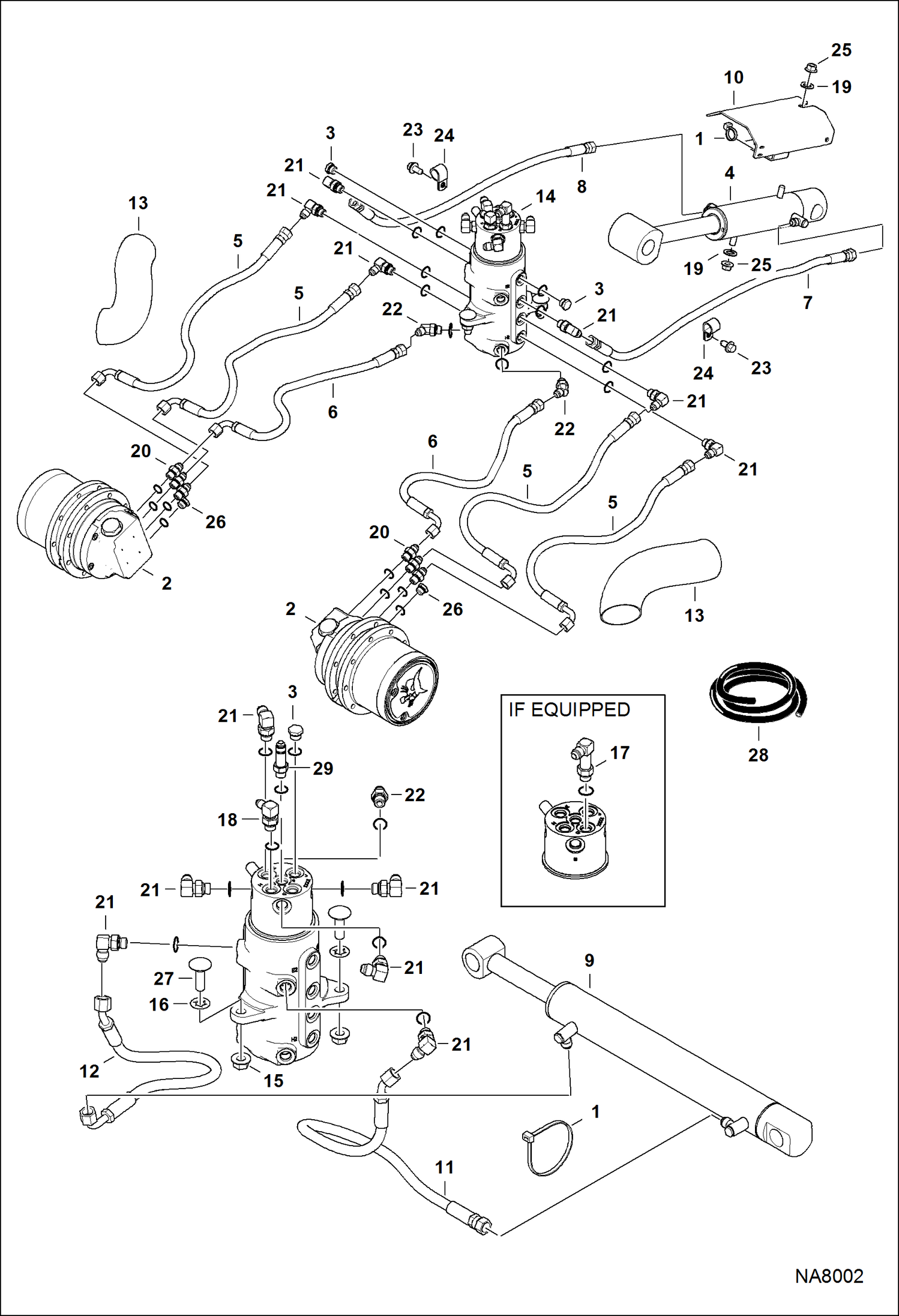

Запчасти Bobcat E08 HYDRAULIC CIRCUITRY (Lower) (S/N A4BP11468 & Above) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6691106

MOTOR DRIVE 1 speed

3

6812171

PLUG W/ O-ring

3

75K6

O-RING

4

7103256

CYL ASSY 319 BLADE

5

7132564

HOSE ASSY

6

7132565

HOSE ASSY

7

7132568

HOSE HYDRAULIC ASSEMBLY

8

7132569

HOSE HYDRAULIC ASSEMBLY

9

7141954

CYLINDER ASSY

10

7142331

SHIELD CYL W/A

11

7150634

HOSE

12

7150635

HOSE

13

COVER, HOSE NLA - 272 mm (10.7'') long - Order Ref. 28

14

7199077

SWIVEL ASSY

15

51DM12

NUT

16

6690637

RETAINER

17

6812815

FITTING if equipped

18

17KB0406

FITTING, HYD ELBOW

18

79K6

O RING 10

19

15EM140

WASHER

20

15KB0606

FITTING, HYD CONNECTOR

20

79K6

O RING 10

21

17KB0606

FITTING

21

79K6

O RING 10

22

18KB0606

FITTING, HYD ELBOW

22

79K6

O RING 10

23

26GM10020

BOLT

24

30H65

CLIP

25

43DM10

NUT

26

24K5

PLUG

26

79K6

O RING 10

27

33CM1240

BOLT

28

7154027

HOSE COVER BULK bulk - sold per foot

29

15KB0606

FITTING, HYD CONNECTOR See Illustration HYDRAULIC CIRCUITRY/ NA8005 - 0.56'' length above nut - Use W/7199408 hose medium drop

29

16KB0606

FTG HYD L CONNECTOR See Illustration HYDRAULIC CIRCUITRY/ NA8005 - 1.56'' length above nut - Use W/7226450 hose short drop

29

79K6

O RING 10
