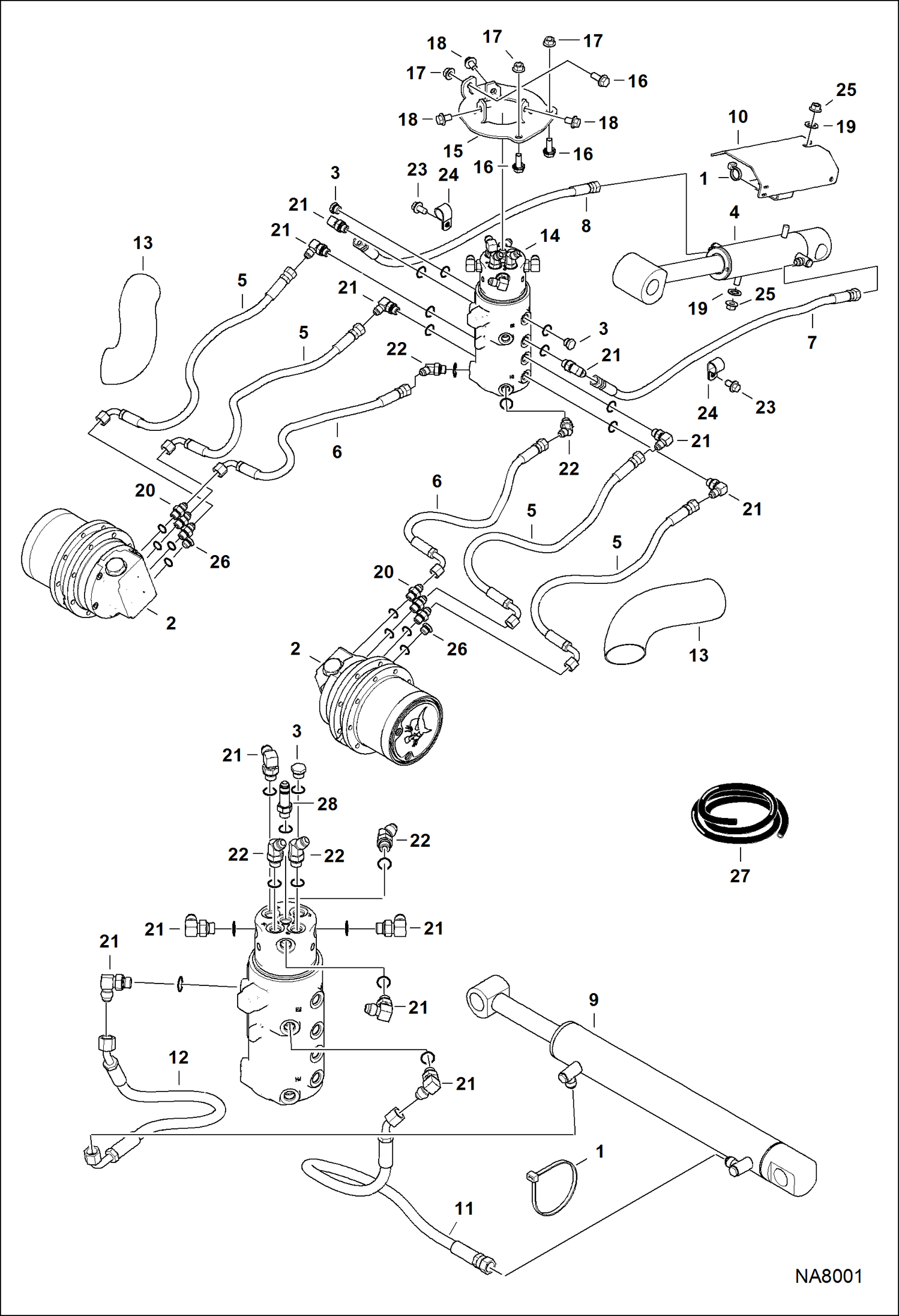

Запчасти Bobcat E08 HYDRAULIC CIRCUITRY (Lower) (S/N A4BP11001 - 11467) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6691106

MOTOR DRIVE See Illustration DRIVE MOTOR/ EM7048 1 speed

3

6812171

PLUG W/ O-ring

3

75K6

O-RING

4

7103256

CYL ASSY 319 BLADE See Illustration BLADE CYLINDER/ EM7034

5

7132564

HOSE ASSY

6

7132565

HOSE ASSY

7

7132568

HOSE HYDRAULIC ASSEMBLY

8

7132569

HOSE HYDRAULIC ASSEMBLY

9

7141954

CYLINDER ASSY See Illustration TRACK FRAME EXPANSION CYLINDER/ EM7063

10

7142331

SHIELD CYL W/A

11

7150634

HOSE

12

7150635

HOSE

13

COVER, HOSE NLA - 272 mm (10.7'') long - Order Ref. 27

14

SWIVEL ASSY See Illustration SWIVEL JOINT/ EM7054 NLA Was 7102237 - A

14

7156120

SWIVEL, HYD ASSY See Illustration SWIVEL JOINT/ EM7050

15

7164191

PLATE

16

7164841

SCREW

17

7164867

NUT

18

7183437

SCREW

19

15EM140

WASHER

20

15KB0606

FITTING, HYD CONNECTOR Was 15KB606 - D

20

79K6

O RING 10

21

17KB0606

FITTING Was 17KB606 - D

21

79K6

O RING 10

22

18KB0606

FITTING, HYD ELBOW Was 18KB606 - D

22

79K6

O RING 10

23

26GM10020

BOLT

24

30H65

CLIP

25

43DM10

NUT

26

24K5

PLUG

26

79K6

O RING 10

27

7154027

HOSE COVER BULK bulk - sold per foot

28

15KB0606

FITTING, HYD CONNECTOR See Illustration HYDRAULIC CIRCUITRY/ NA8005 - 0.56'' length above nut - Use W/7199408 hose medium drop

28

16KB0606

FTG HYD L CONNECTOR See Illustration HYDRAULIC CIRCUITRY/ NA8005 - 1.56'' length above nut - Use W/7226450 hose short drop

28

79K6

O RING 10
