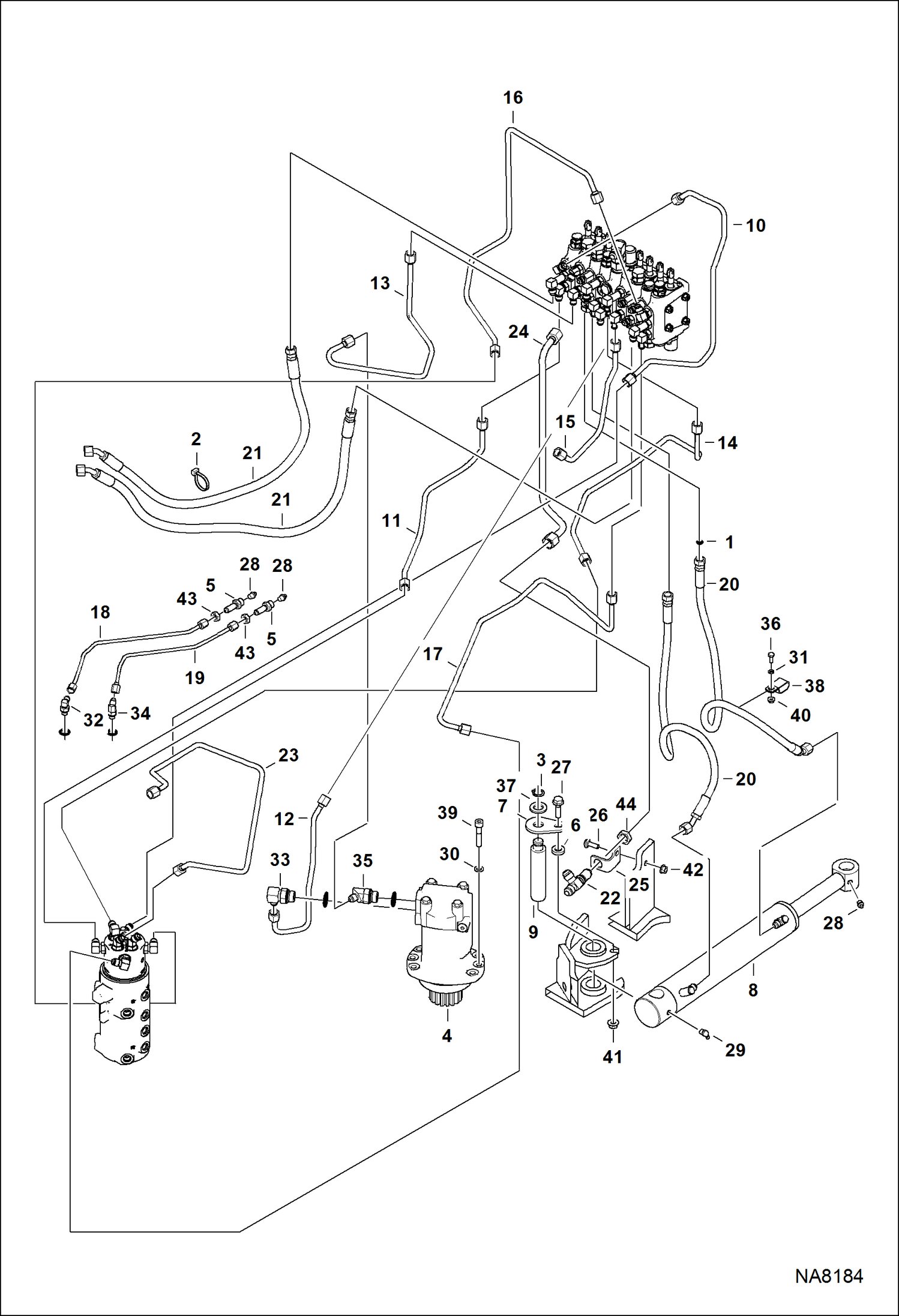

Запчасти Bobcat E08 HYDRAULIC CIRCUITRY (Upper) (S/N A4BP11001 - 11467) HYDRAULIC SYSTEM

1

6586430

ORIFICE if equipped

2

6624289

STRAP, TIE

3

6662745

SNAP RING

4

6693416

SLEW MOTOR See Illustration SLEW MOTOR/ EM7156

5

6807184

FITTING

6

6814436

WASHER

7

7112322

EAR

8

7222481

CYLINDER See Illustration SWING CYLINDER/ NA8017 - Was 7133312 - A

9

7135395

PIN

10

7138932

TUBELINE

11

7138933

TUBELINE

12

7138934

TUBELINE

13

7138935

TUBELINE

14

7138936

TUBELINE

15

7138937

TUBELINE

16

7138940

TUBELINE

17

7138941

TUBELINE

18

7138944

TUBELINE

19

7138945

TUBELINE

20

7143545

HOSE ASSY

21

7144749

HOSE

22

91K6

TEE

23

7145141

TUBELINE

24

7150754

TUBELINE

25

7150761

HOLDER

26

7159145

BOLT

27

7159236

BOLT

28

10H25

FITTING, GREASE 5

29

11H15

GREASE FITTING 45 degree

30

15EM100

WASHER

31

15EM60

WASHER

32

17KB0404

FTG HYD ELBOW 90

32

79K4

O RING 10

33

17KB0610

FITTING

33

79K10

O RING 10

34

18KB0404

FTG HYD ELBOW 45

34

79K4

O RING 10

35

18KB0610

FITTING

35

79K10

O RING 10

36

1CM616

SCREW

37

1EM180

WASHER

38

31H31

CLIP

39

3GM1050

SCREW

40

43DM6

NUT

41

51DM10

NUT

42

51DM8

NUT

43

86F3

LOCKNUT

44

86F6

NUT
