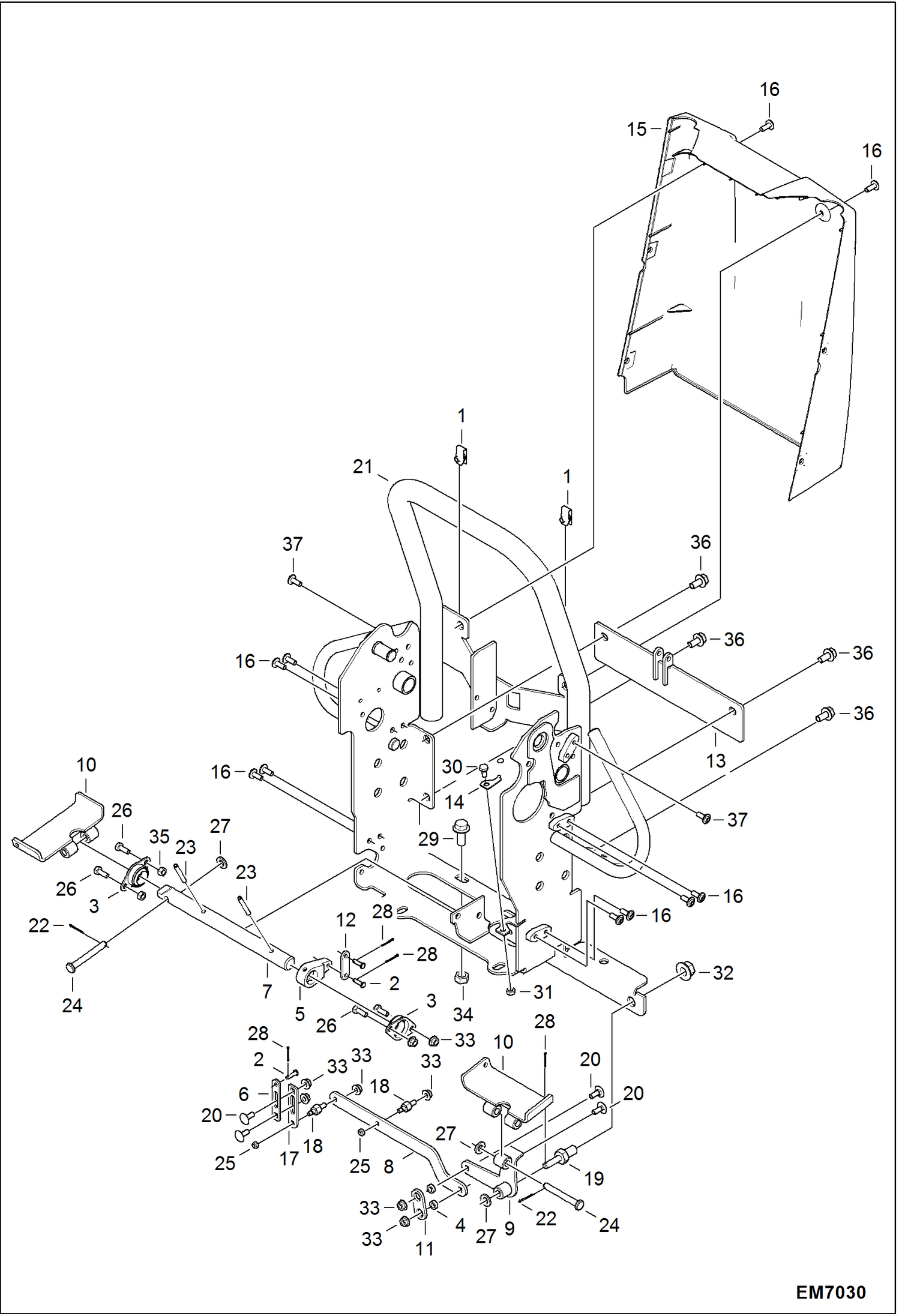

Запчасти Bobcat E08 CENTRAL CONSOLE CONTROLS

1

6676026

NUT

2

6801068

PIN

3

7112044

BEARING FLANGE

4

7134716

SPACER

5

7134742

CASTING

6

7134748

DRAWBAR

7

7134750

SHAFT

8

7134751

DRAWBAR

9

7134754

MOUNT PEDAL RH W/A

10

7134757

PEDAL W/A

11

7134760

DRAWBAR

12

7134762

DRAWBAR

13

7140229

MOUNT

14

7141300

PLATE THROTTLE

15

7151900

COVER COLUMN REAR

16

7153055

SCREW LOW HEAD

17

7156506

DRAWBAR

18

7156553

PIN

19

7156555

PIN

20

7156775

BOLT

21

7182734

HOUSING, VALVE Was 7135180 - A

22

13JM20020

PIN COTTER

23

14J2124

ROLLPIN

24

14JM865

CLEVIS PINS WITH HEA

25

16DM5

NUT

26

1CM616

SCREW

27

1EM80

WASHER

28

1F212

PIN

29

29CM1025

BOLT

30

1CM612

BOLT Was 4CM612 - A

31

4DM6

NUT

32

51DM12

NUT

33

51DM6

NUT

34

53DM10

NUT

35

53DM6

NUT

36

59CM816

BOLT

37

7186731

SCREW LOW HEAD
