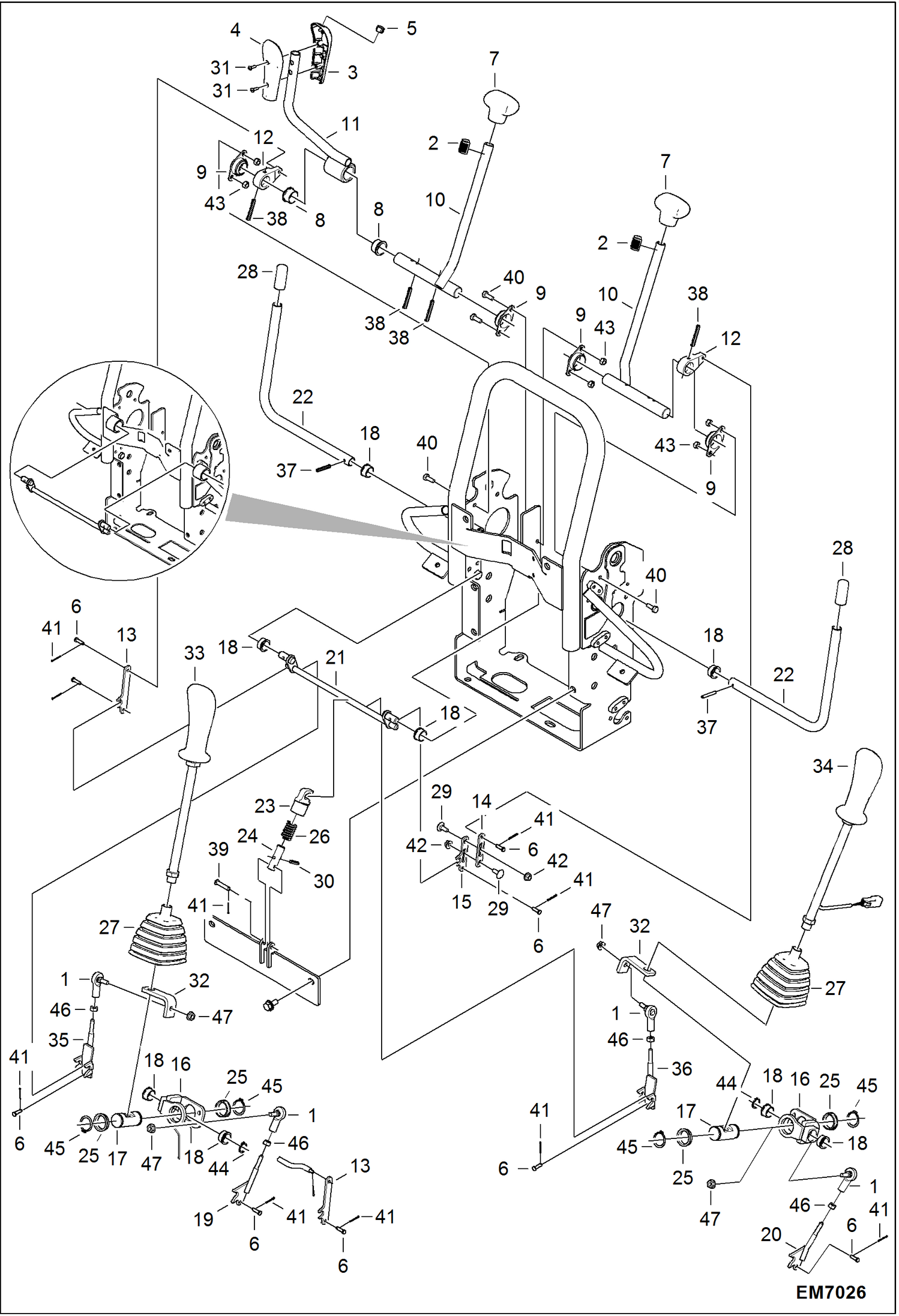

Запчасти Bobcat E08 STEERING CONTROLS CONTROLS

1

6631036

JOINT

2

6672494

RING

3

6675831

HANDLE

4

6675832

HANDLE

5

6684644

INSERT

6

6801068

PIN

7

6804068

HANDLE

8

7111975

BUSHING

9

7112044

BEARING FLANGE

10

7134738

SHAFT CONTROL W/A

11

7134741

BLADE CONTROL W/A

12

7134742

CASTING

13

7134746

DRAWBAR

14

7134748

DRAWBAR

15

7134764

DRAWBAR

16

7135184

CONTROLS

17

7135188

SHAFT

18

7135189

BUSHING

19

7135193

DRAWBAR

20

7135195

DRAWBAR

21

7135197

CONTROL

22

7135198

CONTROL

23

7135199

LOCK

24

7135206

PIN

25

7140235

BUSHING

26

7141746

SPRING Was 7141764 - D

27

7153508

BOOT

28

7156036

GRIP

29

7156775

BOLT

30

7159483

PIN

31

58G610

SCREW PNH CRSEC TAP

32

7161769

PLATE MECH CONTROLS

33

7163750

HANDLE RH

34

7163751

HANDLE LH

35

7167275

DRAWBAR

36

7167277

DRAWBAR

37

14J1820

PIN

38

14J2124

ROLLPIN

39

14JM630

PIN

40

1CM616

SCREW

41

1F212

PIN

42

51DM6

NUT

43

53DM6

NUT

44

5JM16

SNAPRING

45

5JM24

CIRCLIP

46

62D4

NUT

47

98D4

NUT
