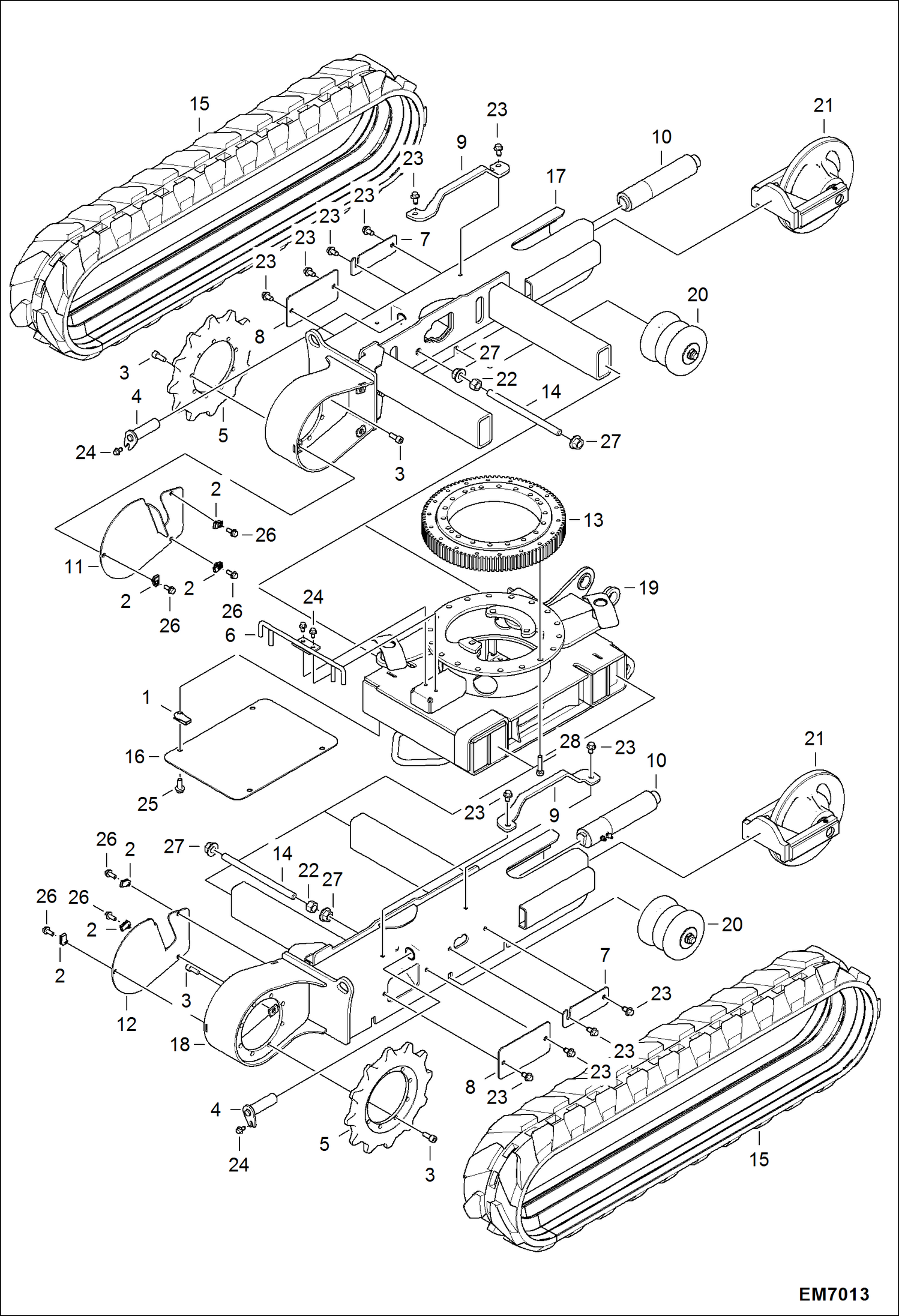

Запчасти Bobcat E08 UNDERCARRIAGE UNDERCARRIAGE

1

6675722

NUT

2

6676169

NUT

3

6805750

SCREW

4

7131880

PIN W/A

5

7134493

SPROCKET

6

7135003

HOLDER HOSES

7

7135111

COVER

8

7135112

COVER

9

7135937

GUIDE TRACK

10

7136901

CYL ASSY GRS 317/418 See Illustration UNDERCARRIAGE/ EM7075

11

7137741

COVER LH

12

7137742

COVER RH

13

7139455

RING SLEW

14

7145658

ROD

15

7153420

TRACK, RUBBER (180X72X39) 7'' BOBCAT

16

7162600

PLATE COVER

17

7162601

FRAME TRACK W/A LH

18

7162602

FRAME TRACK W/A RH

19

7162603

UNDERCARRIAGE W/A

19

7199415

UNDERCARRIAGE, W/A

20

7165324

ROLLER ASSY See Illustration UNDERCARRIAGE/ EM7153

21

IDLER ASSY, RH See Illustration UNDERCARRIAGE/ EM7065 NLA Was 7145226 - C

21

IDLER ASSY, LH See Illustration UNDERCARRIAGE/ EM7066 NLA Was 7145227 - C

21

7187172

IDLER ASSY See Illustration UNDERCARRIAGE/ EM6084

22

1DM16

NUT

22

1DM16

NUT

23

26GM10020

BOLT

24

26GM8016

SCREW

25

29CM1025

BOLT

26

29CM820

SCREW

27

51DM16

NUT

27

51DM16

NUT

28

56CM1045

SCREW
