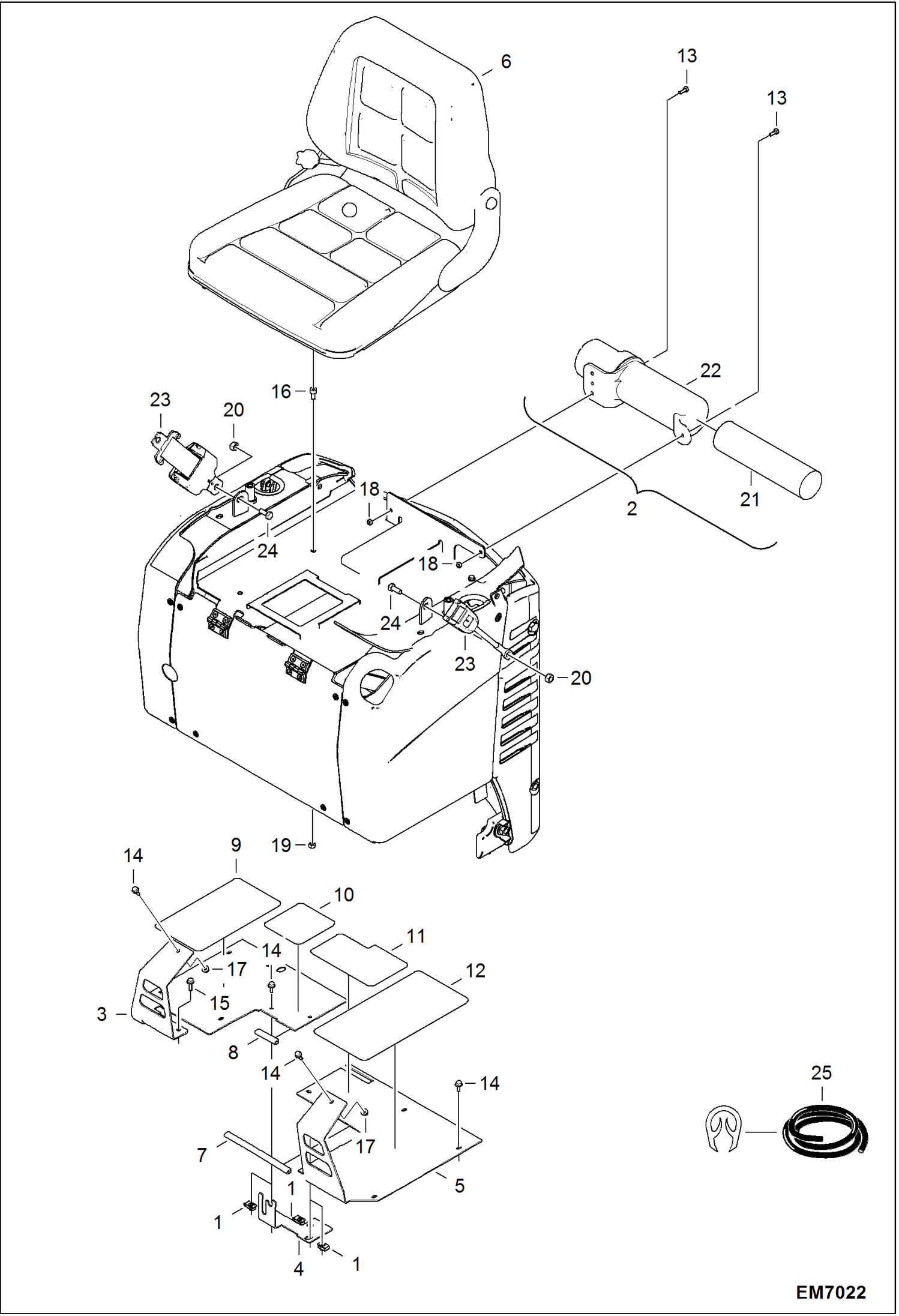

Запчасти Bobcat E08 OPERATOR CAB (Seat) MAIN FRAME

1

6676026

NUT

2

7108147

CONTAINER, MANUAL W/Ref. 21-22

3

7133225

FLOOR RH

4

7133226

HOLDER FLOOR

5

7133227

FLOOR LH

6

SEAT ASSY See Illustration SEAT/ EM7023

7

SEAL NLA - 190 mm (7.48'') long - Order Ref. 25

8

SEAL NLA - 58 mm (2.28'') long - Order Ref . 25

9

7153911

TREAD SAFETY

10

7153912

TREAD SAFETY

11

7153913

TREAD SAFETY

12

7153914

TREAD SAFETY

13

1CM616

SCREW

14

29CM616

BOLT

15

29CM620

SCREW

16

3GM816

BOLT use W/seat model ET 97-1 only

17

51DM6

NUT

18

53DM6

NUT

19

53DM8

NUT

20

53DM10

NUT

21

6686517

TUBE

22

CONTAINER, MANUAL NLA - Order Ref. 2 - Was 6737260 - A

23

7207354

BELT, SEAT Was 7143563 - A

24

1CM1025

BOLT

25

7153821

SEAL BULK bulk - sold per foot
