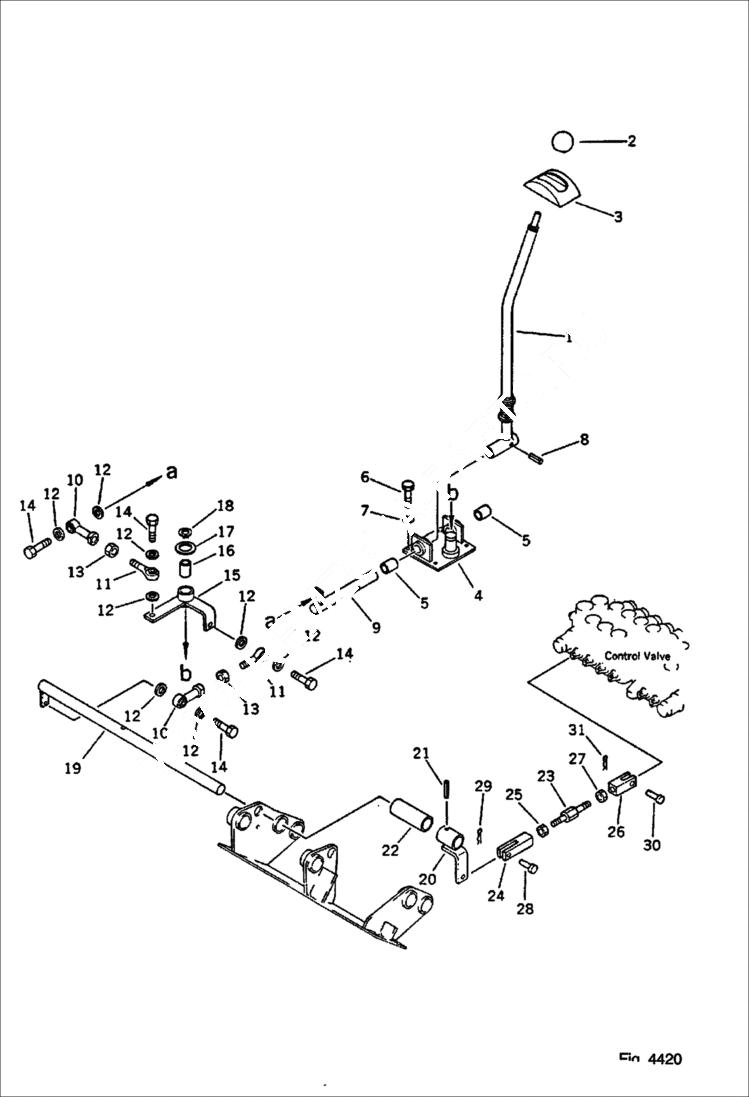

Запчасти Bobcat 76 BOOM SWING CONTROL LEVER SWING CONTROL SYSTEM

1

6642553

LEVER Komatsu S/N 10301 & Abv.

2

6638566

KNOB

3

6638686

COVER

4

6644820

BRACKET Komatsu S/N 10301 & Abv.

5

6637746

BUSHING Komatsu S/N 10301 & Abv.

6

6636958

BOLT Komatsu S/N 10301 & Abv.

7

6637134

WASHER Komatsu S/N 10301 & Abv.

8

6637191

PIN, ROLL Komatsu S/N 10301 & Abv.

9

6642555

SHAFT Komatsu S/N 10301 & Abv.

10

6637309

ROD END Komatsu S/N 10301 & Abv.

11

6637313

END Komatsu S/N 10301 & Abv.

12

6637315

SHIM Komatsu S/N 10301 & Abv.

13

6637107

NUT Komatsu S/N 10301 & Abv.

14

6636960

BOLT Komatsu S/N 10301 & Abv.

15

6642554

LEVER Komatsu S/N 10301 & Abv.

16

6637751

BUSHING Komatsu S/N 10301 & Abv.

17

6642043

WASHER Komatsu S/N 10301 & Abv.

18

6637221

RING, SNAP Komatsu S/N 10301 & Abv.

19

6638293

SHAFT Komatsu S/N 10301 & Abv.

20

6638277

LEVER Komatsu S/N 10301 & Abv.

21

6637191

PIN, ROLL Komatsu S/N 10301 & Abv.

22

6638276

COLLAR Komatsu S/N 10301 & Abv.

23

6638265

ROD Komatsu S/N 10301 & Abv.

24

6637267

YOKE Komatsu S/N 10301 & Abv.

25

6637107

NUT Komatsu S/N 10301 & Abv.

26

6638264

YOKE l. h. thread - Komatsu S/N 10301 & Abv.

27

6642030

NUT l. h. thread - Komatsu S/N 10301 & Abv.

28

6637255

PIN Komatsu S/N 10301 & Abv.

29

6637212

PIN Komatsu S/N 10301 & Abv.

30

6637248

PIN Komatsu S/N 10301 & Abv.

31

6637210

PIN Komatsu S/N 10301 & Abv.
