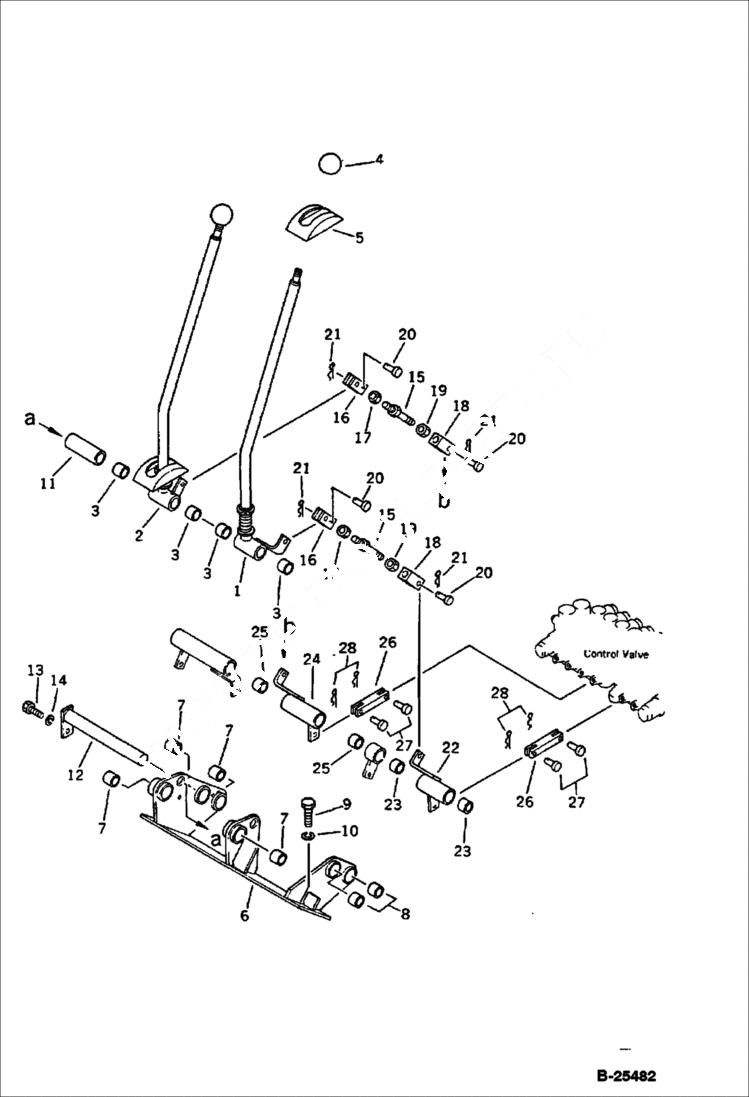

Запчасти Bobcat 76 TRAVEL CONTROL LEVER AND LINKAGE SWING CONTROL SYSTEM

1

6638267

LEVER Komatsu S/N 10301 & Abv.

2

6638266

LEVER Komatsu S/N 10301 & Abv.

3

6637748

BUSHING

4

6638565

KNOB

5

6638686

COVER Komatsu S/N 10301 & Abv.

6

6638262

BRACKET Komatsu S/N 10301 & Abv.

7

6637751

BUSHING Komatsu S/N 10301 & Abv.

8

6637750

BUSHING Komatsu S/N 10301 & Abv.

9

6636967

BOLT Komatsu S/N 10301 & Abv.

10

6637135

WASHER Komatsu S/N 10301 & Abv.

11

6638275

COLLAR Komatsu S/N 10301 & Abv.

12

6638260

SHAFT

13

6636966

BOLT

14

6637135

WASHER

15

ROD Komatsu S/N 10301 & Abv. - Was 04248-10809

16

6637267

YOKE Komatsu S/N 10301 & Abv.

17

6637107

NUT Komatsu S/N 10301 & Abv.

18

6637273

YOKE l. h. thread - Komatsu S/N 10301 & Abv.

19

6642030

NUT l. h. thread - Komatsu S/N 10301 & Abv.

20

6637255

PIN Komatsu S/N 10301 & Abv.

21

6637212

PIN Komatsu S/N 10301 & Abv.

22

6638268

LEVER Komatsu S/N 10301 & Abv.

23

6637749

BUSHING Komatsu S/N 10301 & Abv.

24

6638269

LEVER Komatsu S/N 10301 & Abv.

25

6637749

BUSHING Komatsu S/N 10301 & Abv.

26

6638259

YOKE

27

6637246

PIN

28

6637210

PIN Komatsu S/N 10301 & Abv.
