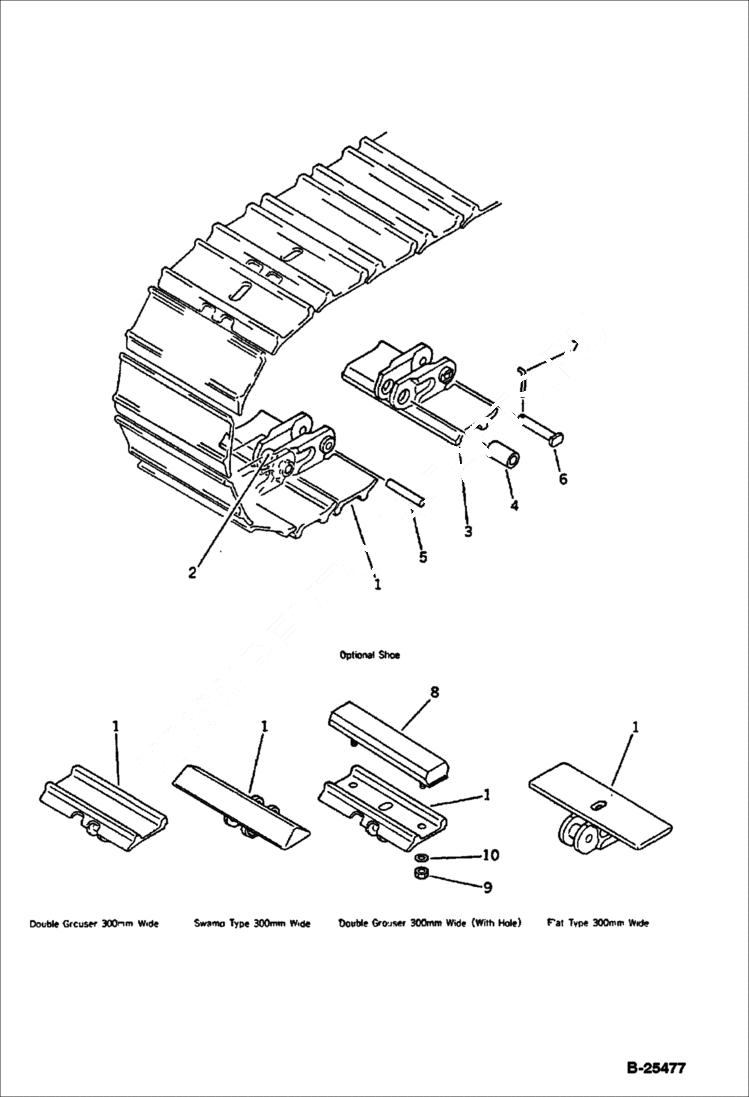

Запчасти Bobcat 76 TRACK SHOE UNDERCARRIAGE

1

6642460

SHOE ASSY double grouser - 300mm wide - with hole

1

6645771

SHOE ASSY regular - double grouser - 300mm wide - with hole

1

6642457

SHOE ASSY flat type - 300mm wide

1

6642462

SHOE ASSY regular - flat type - 300mm wide

2

6642464

BUSHING double grouser - 300mm wide - with hole

2

6642464

BUSHING flat type - 300mm wide

3

6645772

SHOE ASSY master - double grouser - 300mm wide - with hole

3

6642463

SHOE ASSY master - flat type - 300mm wide

4

6642464

BUSHING double grouser - 300mm wide - with hole

4

6642464

BUSHING flat type - 300mm wide

5

6640923

PIN, REG double grouser - 300mm wide - with hole

5

6640923

PIN, REG flat type - 300mm wide

6

6638257

PIN master - double grouser - 300mm wide - with hole

6

6638257

PIN master - flat type - 300mm wide

7

6636159

PIN double grouser - 300mm wide - with hole

7

6636159

PIN flat type - 300mm wide

8

6642467

RUBBER AS double grouser - 300mm wide - with hole

8

6658435

CUSHION double grouser - 300mm wide - with hole

9

6637109

NUT double grouser - 300mm wide - with hole

10

6637158

WASHER double grouser - 300mm wide - with hole
