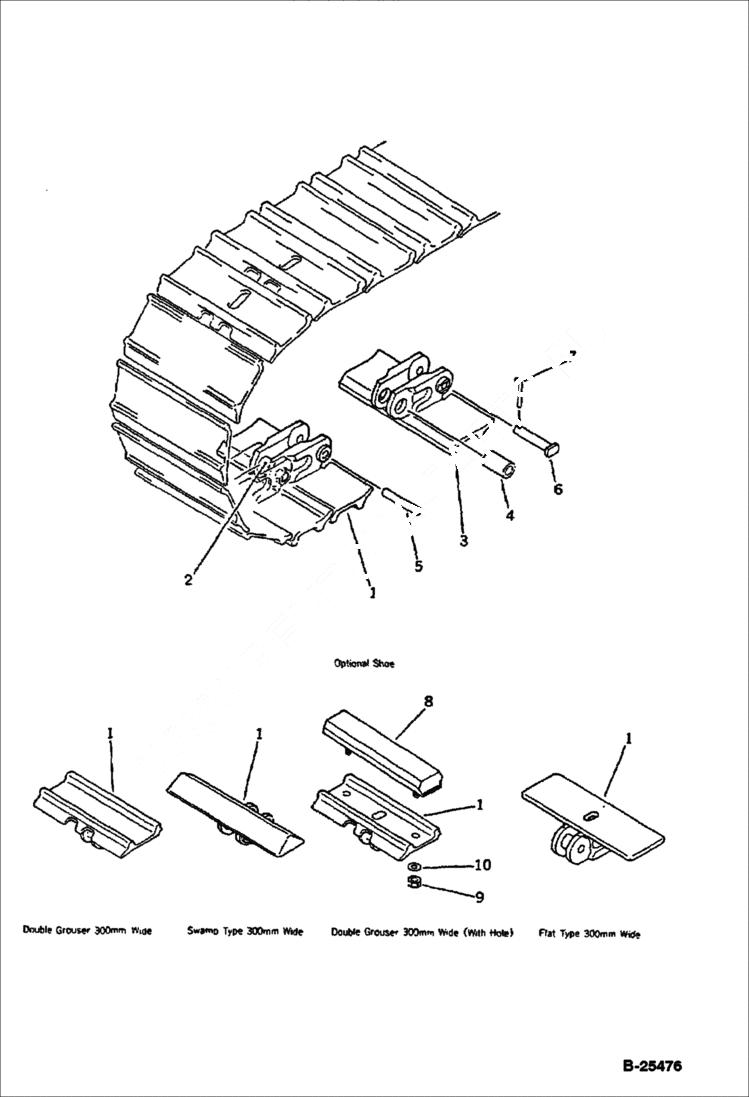

Запчасти Bobcat 76 TRACK SHOE UNDERCARRIAGE

1

6642461

TRACK ASY double grouser - 250mm wide

1

6638256

SHOE regular - double grouser - 250mm wide

1

6642458

SHOE ASSY optional - double grouser - 300mm wide

1

6645769

SHOE ASSY optional - regular -double grouser - 300mm wide

1

6642459

SHOE ASSY swamp type - 300mm wide

1

6642465

SHOE swamp type - regular - 300mm wide

2

6642464

BUSHING double grouser - 250mm wide

2

6638684

BUSHING optional - double grouser - 300mm wide

2

6638684

BUSHING swamp type - 300mm wide

3

6638258

SHOE master - double grouser - 250mm wide

3

6645770

SHOE ASSY master - double grouser - 300mm wide

3

6642466

SHOE master - swamp type - 300mm wide

4

6642464

BUSHING double grouser - 250mm wide

4

6638684

BUSHING optional - double grouser - 300mm wide

4

6638684

BUSHING swamp type - 300mm wide

5

6640923

PIN, REG regular - double grouser - 250mm wide

5

6640880

PIN, REG optional - regular - double grouser - 300mm wide

5

6640880

PIN, REG regular - swamp type - 300mm wide

6

6638257

PIN master - double grouser - 250mm wide

6

6638683

PIN optional - master - double grouser - 300mm wide

6

6638683

PIN master - swamp type - 300mm wide

7

6636159

PIN double grouser - 250mm wide

7

6638685

PIN optional - double grouser - 300mm wide

7

6638685

PIN swamp type - 300mm wide
