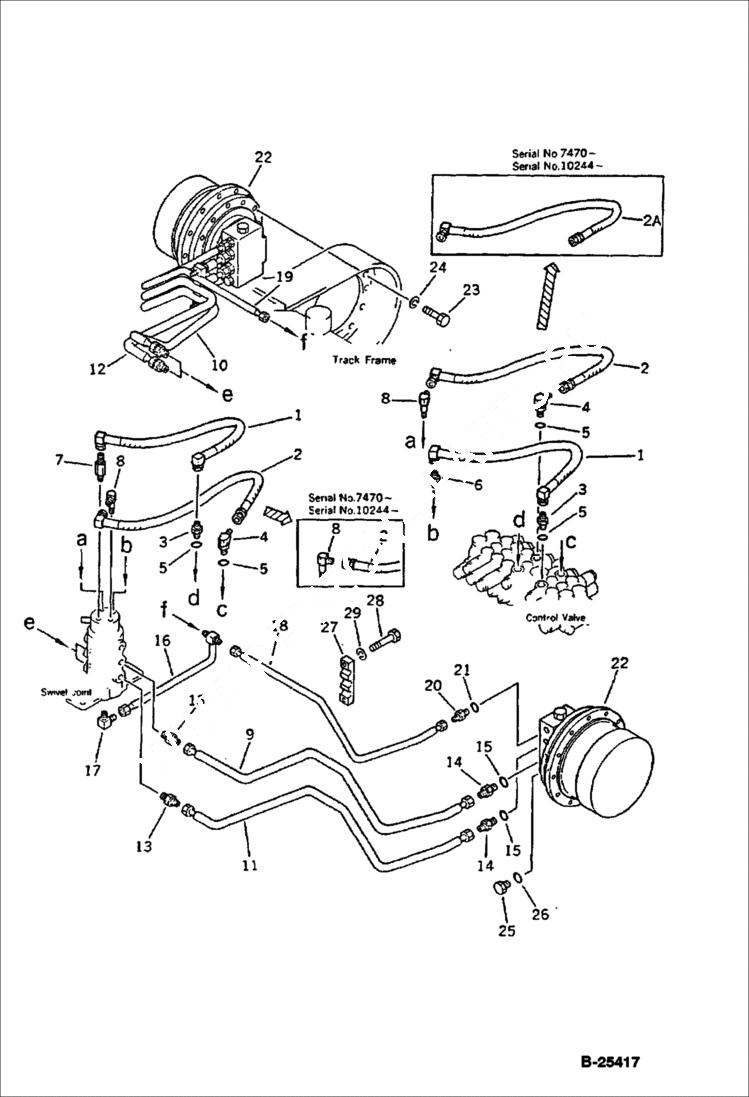

Запчасти Bobcat 76 HYDRAULIC PIPING (VALVE TO/FROM TRAVEL MOTOR) TRAVEL AND FINAL DRIVE

1

6642657

HOSE Komatsu S/N 10201-10300

1

6638424

HOSE Komatsu S/N 10301 & Abv.

2

6638425

HOSE Komatsu S/N 10201-10243

2

6642637

HOSE Komatsu S/N 10244-10300

2

6645933

HOSE Komatsu S/N 10301 & Abv.

2

6638425

HOSE Komatsu S/N 10244-10300

2

HOSE Komatsu S/N 10301 & Abv. - Was 20N-62-32631

3

6638398

NIPPLE

4

6638580

ELBOW

5

6637415

O-RING

6

6638426

NIPPLE

7

6638427

NIPPLE

8

6638433

ELBOW

9

6638402

TUBE

10

6638403

TUBE

11

6638404

TUBE

12

6638405

TUBE

13

6638411

CONNECTOR

14

6638057

NIPPLE

15

6637371

O-RING

16

6638408

TUBE

17

6638078

ELBOW

18

6642642

TUBE

19

6642643

TUBE

20

6638397

NIPPLE

21

6637369

O-RING

22

6642616

MOTOR ASSY Komatsu S/N 10201-10300

22

6638385

MTR ASSY Komatsu S/N 10301 & Abv.

23

6636980

BOLT Komatsu S/N 10201-10300

23

6636980

BOLT Komatsu S/N 10301 & Abv.

24

6637136

WASHER Komatsu S/N 10201-10300

24

6637136

WASHER Komatsu S/N 10301 & Abv.

25

6638396

PLUG

26

6637369

O-RING

27

6642636

CLAMP Komatsu S/N 10201-10300

28

6636971

BOLT Komatsu S/N 10201-10300

29

6637135

WASHER Komatsu S/N 10201-10300
