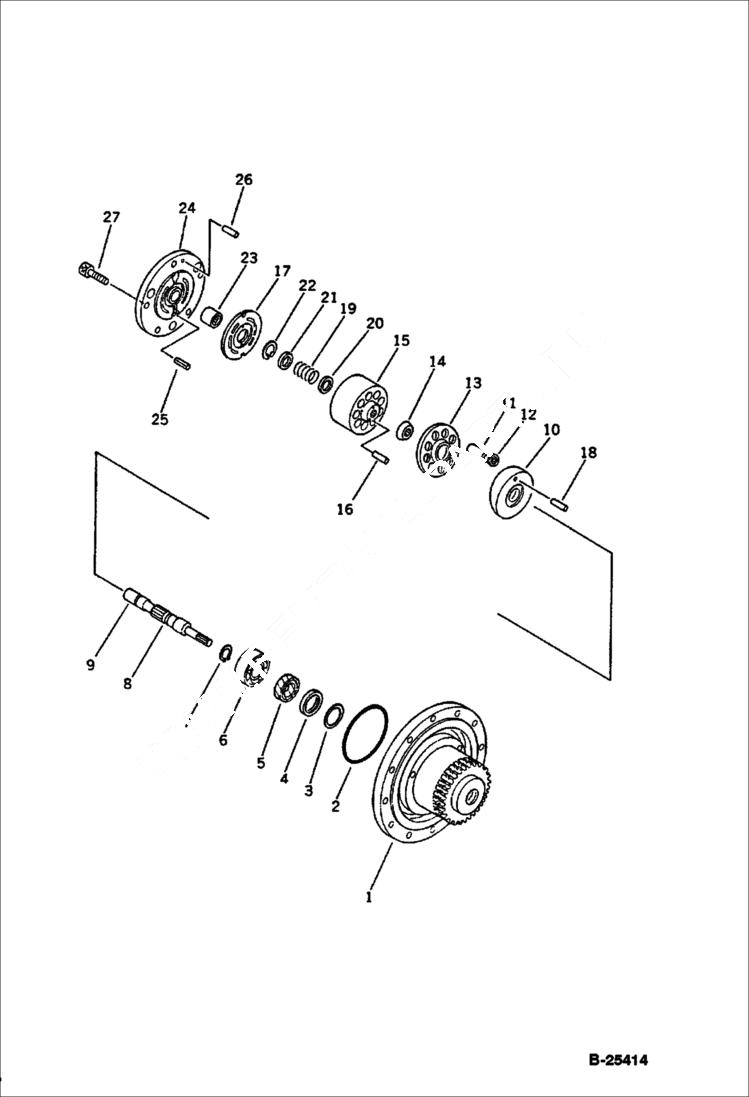

Запчасти Bobcat 76 TRAVEL MOTOR (2/3) TRAVEL AND FINAL DRIVE

1

6642616

MOTOR ASSY Komatsu S/N 10201-10300

1

6638385

MTR ASSY See Illustration TRAVEL MOTOR (3/3)/ B25415 See Illustration TRAVEL MOTOR (1/3)/ B25413 Komatsu S/N 10301 & Abv.

1

6638352

HOUSING

2

6637381

O-RING

3

6638353

RING

4

6638358

RING

5

6638378

SEAL, OIL

6

6637321

BEARING

7

6637220

RING, SNAP

8

6638362

SHAFT ASSY

8

6642617

SHAFT

9

6638379

RACE inner

10

6638372

KIT, CYL

10

6642625

PLATE

11

6642621

PISTON

12

6642622

SHOE

13

6642623

HOLDER

14

6642624

HOLDER

15

6642619

BARREL

16

6638356

PIN

17

6642620

PLATE

18

6637180

PIN

19

6638357

SPRING

20

6638355

RETAINER

21

6638354

COLLAR

22

6637229

RING, SNAP

23

6638381

BEARING

24

6638351

HOUSING

25

6637187

PIN, ROLL

26

6637174

PIN, DOWE

27

6637061

BOLT
