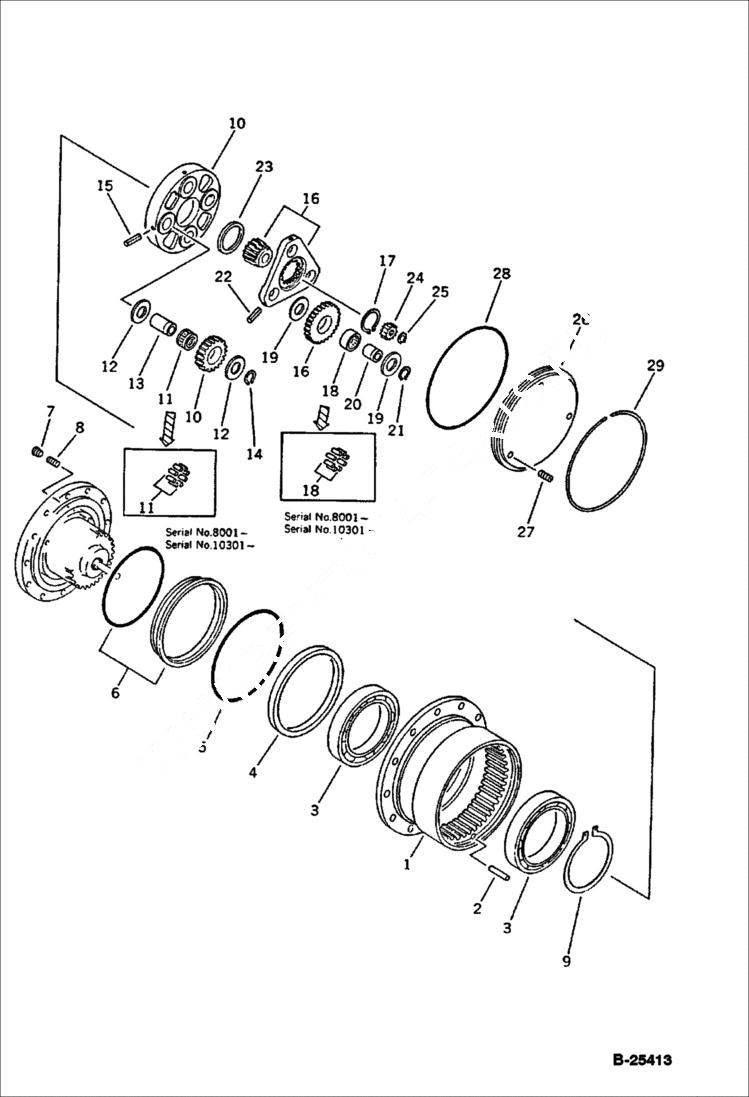

Запчасти Bobcat 76 TRAVEL MOTOR (1/3) TRAVEL AND FINAL DRIVE

1

6642616

MOTOR ASSY Komatsu S/N 10201-10300

1

6638385

MTR ASSY See Illustration TRAVEL MOTOR (3/3)/ B25415 See Illustration TRAVEL MOTOR (2/3)/ B25414 Komatsu S/N 10301 & Abv.

1

6638344

HOUSING A body - sub

2

6638368

PIN

3

6638369

BEARING

4

6638347

RING

5

6638370

O-RING

6

6638371

SEAL ASSY floating

7

6637446

PLUG

8

6638349

SCREW

9

6637237

RING, SNAP

10

6642618

CARRIER A Komatsu S/N 10201-10300

10

6638387

CARRIER A Komatsu S/N 10301 & Abv.

11

6642629

CAGE needle - Komatsu S/N 10201-10300

11

6638331

CAGE ASY needle - sub - Komatsu S/N 10301 & Abv.

11

6642634

CAGE needle - Komatsu S/N 10301 & Abv.

12

6638373

WASHER thrust

13

6638345

PIN

14

6637221

RING, SNAP

15

6637183

PIN, ROLL

16

6642626

CARRIER A sub assembly - Komatsu S/N 10201-10300

16

6638388

CARRIER A sub assembly - Komatsu S/N 10301 & Abv.

17

6637223

RING, SNAP

18

6642630

BEARING needle - Komatsu S/N 10201-10300

18

6638332

BEARING A needle - Komatsu S/N 10301 & Abv.

18

6642635

BEARING needle - Komatsu S/N 10301 & Abv.

19

6638373

WASHER thrust

20

6638346

PIN

21

6637221

RING, SNAP

22

6637183

PIN, ROLL

23

6638350

COLLAR thrust

24

6638374

GEAR

25

6638375

RING

26

6638376

COVER

27

6637447

PLUG

28

6638377

O-RING

29

6638348

RING
