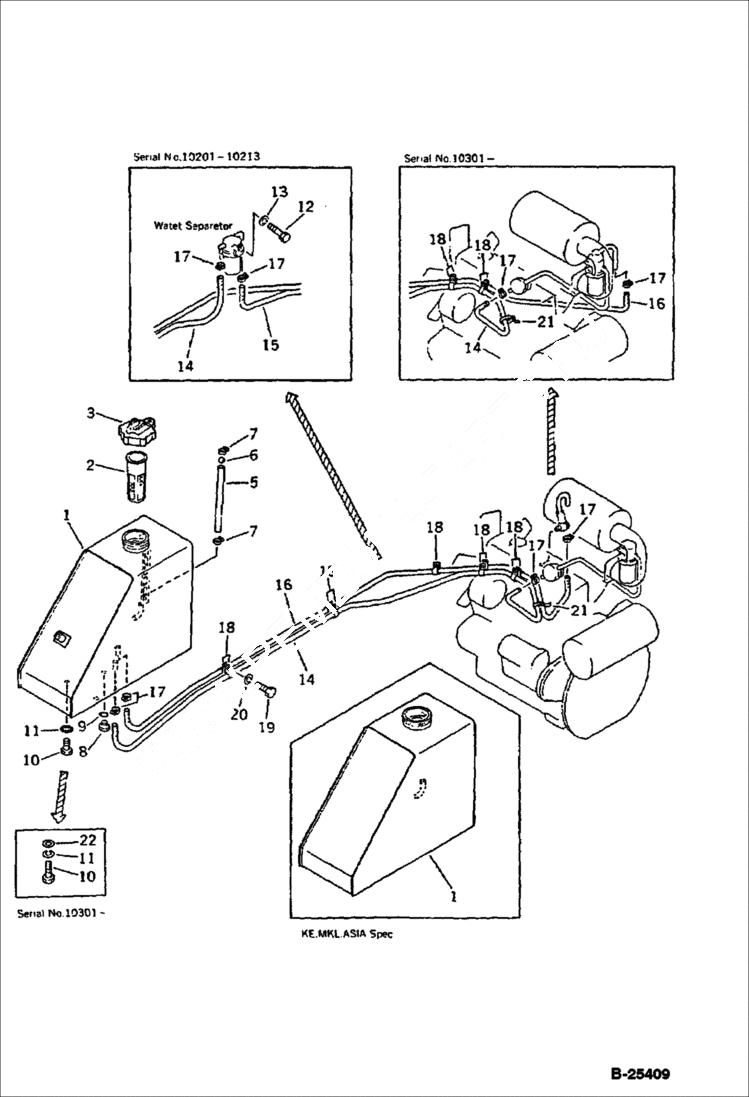

Запчасти Bobcat 76 FUEL TANK AND PIPING ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6642423

TANK ASSY (TBG, USA SPEC) Komatsu S/N 10201-10300

1

6642424

TANK ASSY (TBG, USA SPEC) Komatsu S/N 10301 & Abv.

1

6642419

TANK ASSY (KE, MKL, ASIA SPEC) Komatsu S/N 10201-10300

1

6642420

TANK ASSY (KE, MKL, ASIA SPEC) Komatsu S/N 10301 & Abv.

1

6645891

TUBE (TBG, USA SPEC) Komatsu S/N 10201-10300

1

6638227

TANK (TBG, USA SPEC) Komatsu S/N 10301 & Abv.

1

FUEL TANK (KE, MKL, ASIA SPEC) Komatsu S/N 10201-10300 - Was 20N-04-41111

1

FUEL TANK (KE, MKL, ASIA SPEC) Komatsu S/N 10301 & Abv. - Was 20N-04-41115

2

6637474

SCREEN

3

6637483

CAP (TBG, USA SPEC)

3

6637470

CAP (KE, MKL, ASIA SPEC)

5

TUBE Was 07270-01025

6

6638544

FLOAT

7

6637621

CLAMP

8

6637476

BOLT plug

9

6637408

O-RING

10

6636979

BOLT Komatsu S/N 10201-10300

10

6636980

BOLT Komatsu S/N 10301 & Abv.

11

6637139

WASHER Komatsu S/N 10201-10300

11

6637136

WASHER Komatsu S/N 10301 & Abv.

12

6636964

BOLT Komatsu S/N 10201-10213

13

6637134

WASHER Komatsu S/N 10201-10213

14

6642421

HOSE Komatsu S/N 10201-10213

14

6638226

HOSE Komatsu S/N 10214 & Abv.

15

6642422

HOSE Komatsu S/N 10201-10213

16

6638225

HOSE

17

6637620

CLAMP Komatsu S/N 10201-10213

17

6637620

CLAMP Komatsu S/N 10214 & Abv.

18

6637688

CLIP Komatsu S/N 10201-10213

18

6637688

CLIP Komatsu S/N 10214 & Abv.

19

6636966

BOLT Komatsu S/N 10201-10300

19

6636966

BOLT Komatsu S/N 10301 & Abv.

20

6637135

WASHER Komatsu S/N 10201-10300

20

6637135

WASHER Komatsu S/N 10301 & Abv.

21

6637682

BAND

22

6637158

WASHER Komatsu S/N 10301 & Abv.
