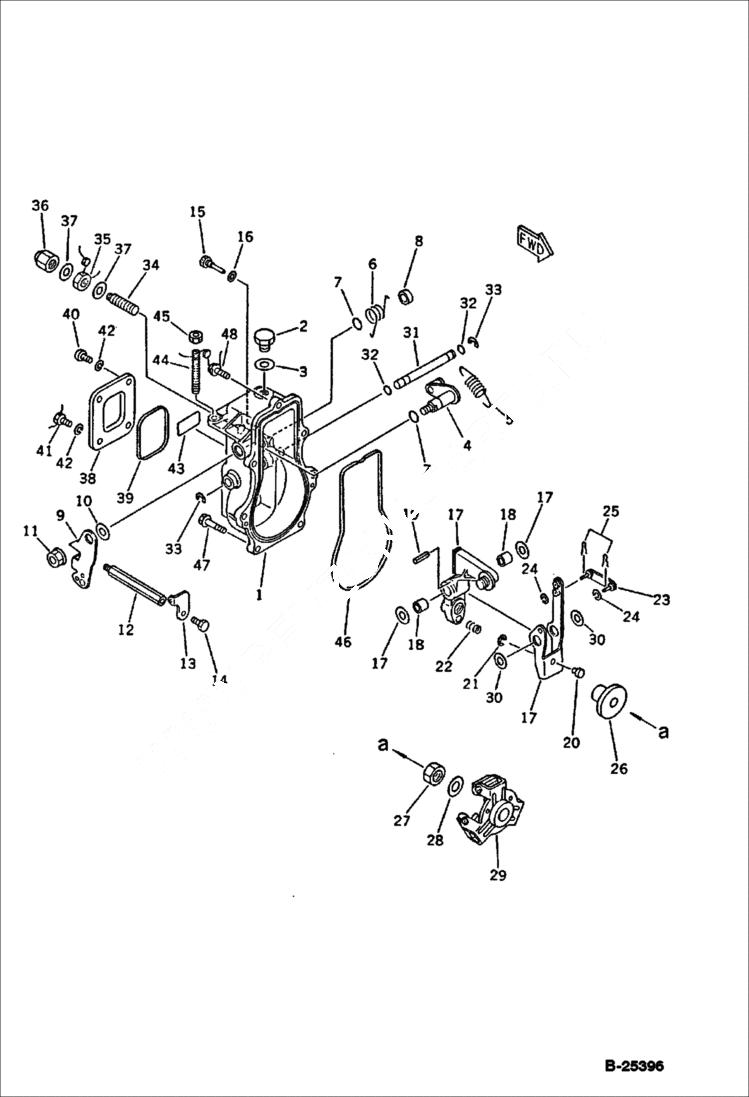

Запчасти Bobcat 76 GOVERNOR FUEL SYSTEM

1

6636713

HOUSING

2

6636815

PLUG

3

6636777

WASHER

4

6636639

HOUSING

5

6636765

SPRING

6

6636750

SPRING

7

6636728

O-RING

8

6636643

PLUG

9

6636534

LEVER control

10

6636721

WASHER

11

6636884

NUT

12

6636536

BOLT

13

6636537

HOOK

14

6636834

BOLT

15

6636727

PIN stop lever

16

6636806

GASKET

17

6636641

LEVER governor

18

6636725

BUSHING

19

6636793

PIN

20

6636726

SHIFTER

21

6636785

RING

22

6636642

SPRING fuel control

23

6636718

LINK L=28

23

6641882

LINK L=29

23

6641877

LINK L=30

23

6641878

LINK L=31

23

6641879

LINK L=32

23

6641880

LINK L=33

23

6641881

LINK L=34

24

6636774

WASHER

25

6636798

PIN

26

6636720

SLEEVE

27

6636899

LOCK NUT

28

6636788

WASHER

29

6636719

WEIGHT

30

6636723

WASHER

31

6636724

SHAFT

32

6636687

O-RING

33

6636787

RING

34

6636640

LIMITER

35

6636900

NUT

36

6636644

NUT

37

6636913

SEAL

38

6636715

COVER

39

6636716

PACKING

40

6636890

SCREW

41

6636717

BOLT

42

6636779

WASHER, SPRING

43

6636531

LABEL

44

6636722

BOLT

45

6636617

LOCK NUT

46

6636714

PACKING

47

6636865

BOLT

48

6636729

BOLT
