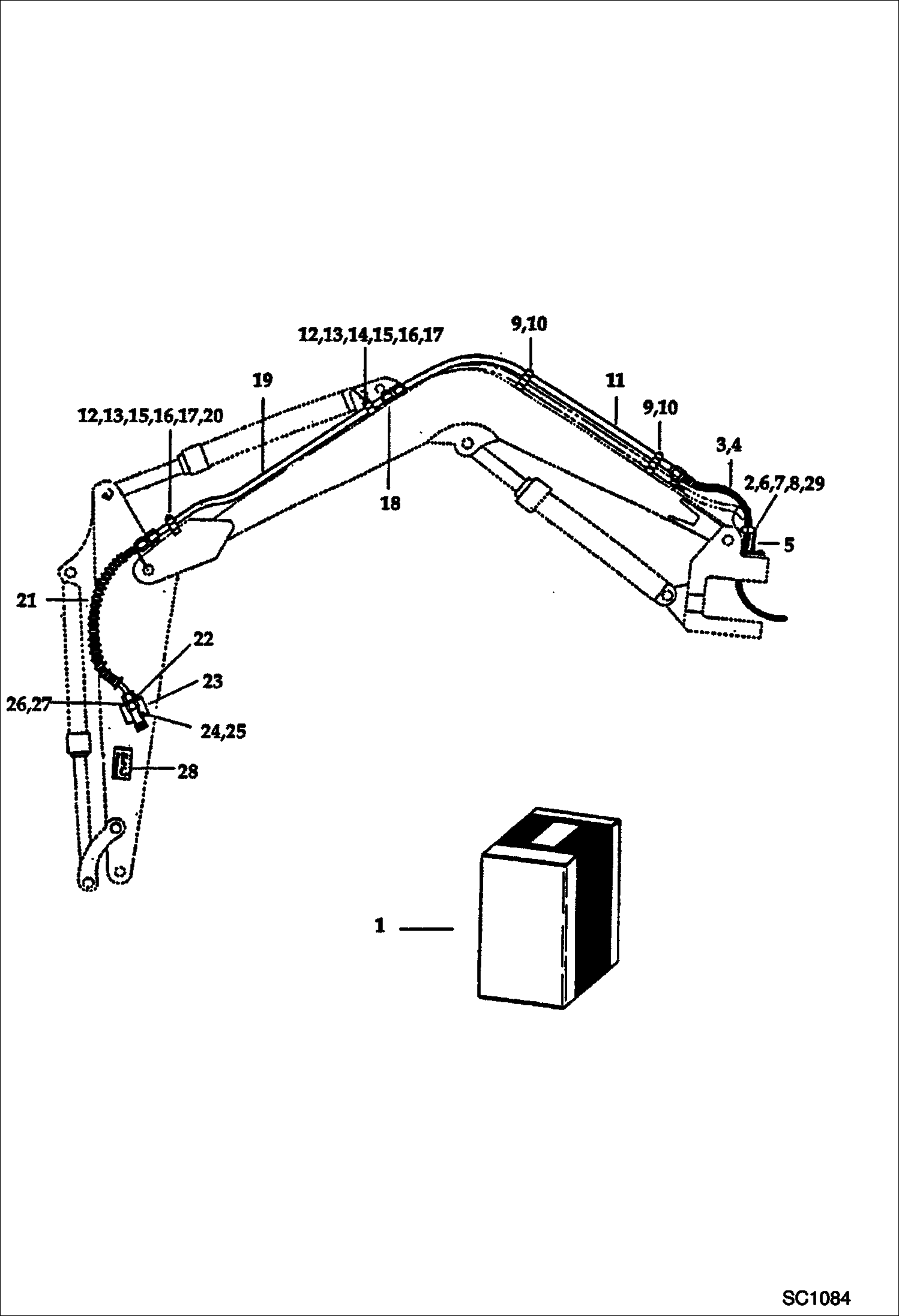

Запчасти Bobcat 76 HYDRAULIC BREAKER (1250X) (Boom Circuitry) ACCESSORIES & OPTIONS

1

KIT NLA - Order Individual Parts

2

23E5

L WASHER

3

6651999

HOSE

4

6652000

HOSE

5

6652001

CLAMP

6

6652002

CLAMP

7

6652003

CLAMP

8

17C536

BOLT

9

1CM830

BOLT

10

6652004

TUBE

11

6652005

TUBE

12

6650577

CLAMP

13

6650576

CLAMP

14

6652006

BAR

15

17C628

BOLT

16

25E18

WASHER

17

23E6

WASHER

18

6651383

ADAPTER

19

6652007

TUBE

20

6652050

CLAMP

21

6650579

HOSE

22

6651388

ADAPTER

23

6650581

BRACKET

24

6651390

COUPLER Male

25

COUPLER NLA - female - Was 6651389 - A

26

6651391

PLUG

27

6651392

CAP

28

6650580

DECAL

29

25E15

WASHER
