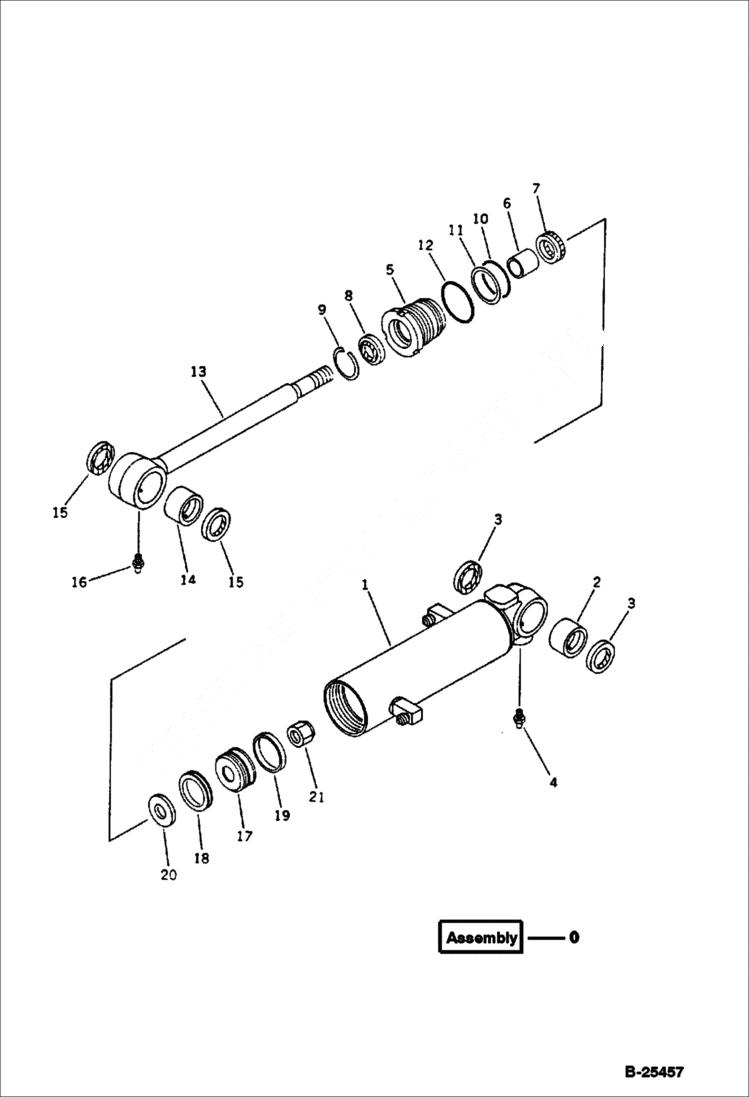

Запчасти Bobcat 76 BLADE CYLINDER WORK EQUIPMENT

0

6648872

CYL. ASY. Komatsu S/N 10501-10554

0

CYLINDER ASSY Komatsu S/N 10555 & Abv - Was 20C-63-02050

1

CYLINDER TUBE Komatsu S/N 10501-10554 - Was 20N-63-96440

1

CYLINDER TUBE Komatsu S/N 10555 & Abv - Was 20C-63-96140

2

6637526

BUSHING

3

6637532

SEAL, DUST

4

6637430

FITTING

5

6640397

CYL HEAD Komatsu S/N 10501-10554

5

HEAD, CYLINDER Komatsu S/N 10501-10554 - Was 707-29-70820

6

6637562

BUSHING

7

6640431

PACKING

8

DUST SEAL NLA - Was 6648850 - A

9

6648863

SNAPRING

10

6637377

O-RING

11

6637400

RING, BACK-UP Komatsu S/N 10501-10554

11

6648856

B.UP RING Komatsu S/N 10555 & Abv

12

6637378

O-RING Komatsu S/N 10501-10554

12

6637346

O-RING Komatsu S/N 10555 & Abv

13

ROD, PISTON Was 20N-63-96420

14

6637526

BUSHING

15

6637532

SEAL, DUST

16

6637431

FITTING Komatsu S/N 10501-10554

16

6637430

FITTING Komatsu S/N 10555 & Abv

17

PISTON Was 707-36-70940

18

6637551

RING Komatsu S/N 10501-10554

18

RING, PISTON Komatsu S/N 10555 & Abv - Was 707-44-70020

19

6648857

WEAR RING

20

6637818

RETAINER Komatsu S/N 10501-10554

20

6673127

RETAINER Komatsu S/N 10555 & Abv

21

6637554

NUT, NYLO
