BLADE ( W/O BOLT-ON CUTTING EDGE )

Запчасти Bobcat 76 BLADE ( W/O BOLT-ON CUTTING EDGE ) WORK EQUIPMENT

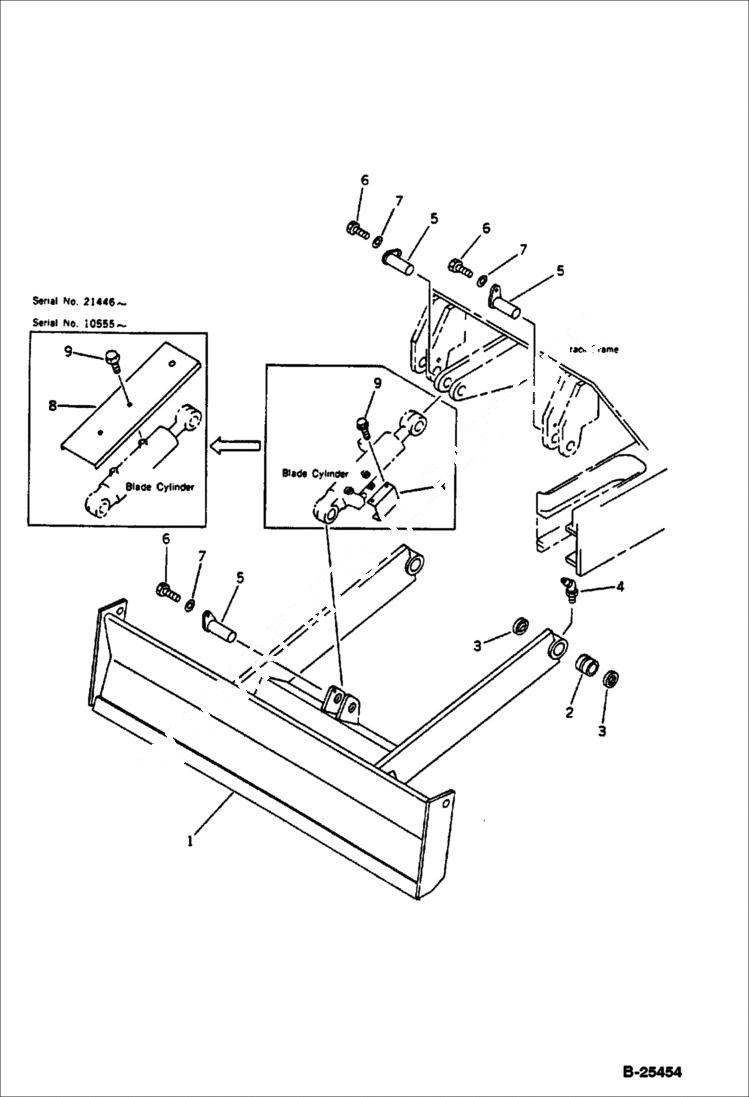

Схема запчастей Bobcat 76 - BLADE ( W/O BOLT-ON CUTTING EDGE ) WORK EQUIPMENT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BLADE ASSY Was 20N-71-41500

2

6637526

BUSHING

3

6637532

SEAL, DUST

4

6637431

FITTING

5

6664476

PIN

6

6636966

BOLT

7

6637157

WASHER

8

COVER Komatsu S/N 10501-10554 - Was 20M-71-48121

8

COVER Komatsu S/N 10555 & Abv - Was 20C-71-11310

9

6637066

BOLT Komatsu S/N 10501-10554

9

BOLT Komatsu S/N 10555 & Abv - Was 01435-01016
