HYDRAULIC PIPING ( BUCKET CYLINDER LINE )

Запчасти Bobcat 76 HYDRAULIC PIPING ( BUCKET CYLINDER LINE ) WORK EQUIPMENT

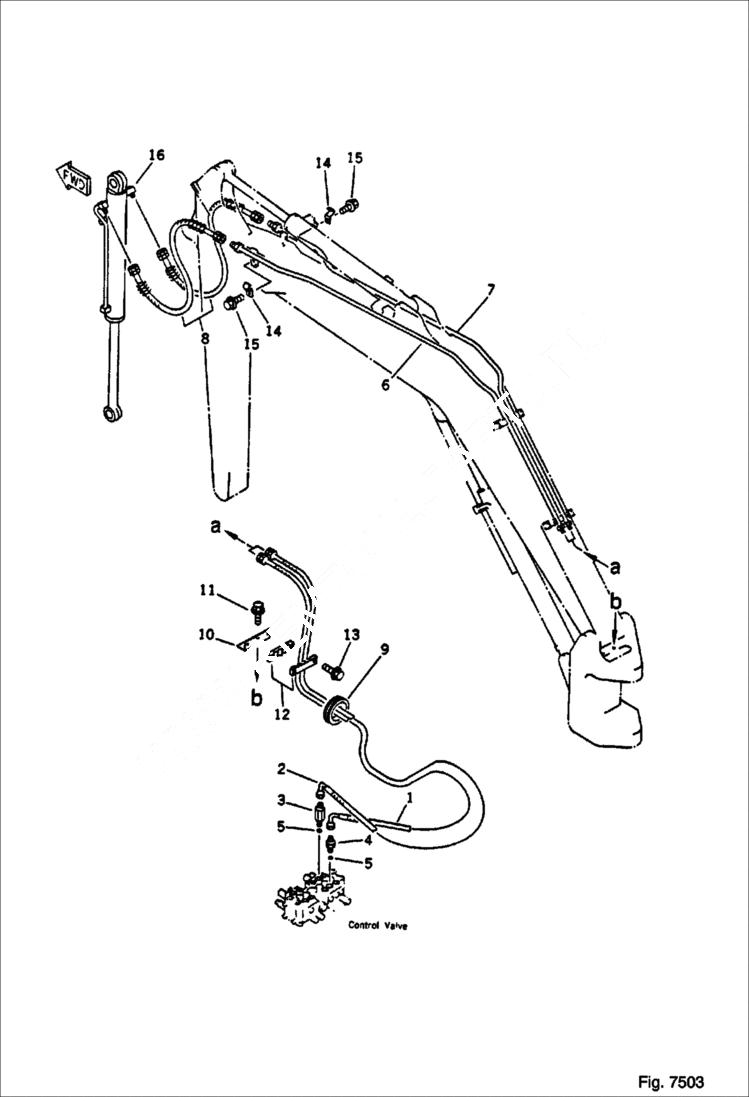

Схема запчастей Bobcat 76 - HYDRAULIC PIPING ( BUCKET CYLINDER LINE ) WORK EQUIPMENT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6649168

HOSE

2

6649167

HOSE

3

6638101

NIPPLE

4

6638398

NIPPLE

5

6637415

O-RING

6

6655034

TUBE

7

TUBE Was 20N-62-43581

8

6649161

HOSE

9

GROMMET Was 20P-62-12550

10

6649908

CLAMP

11

6637069

BOLT

12

6649909

CLAMP

13

BOLT Was 01435-01055

14

6649910

CLIP

15

6637066

BOLT

16

CYL ASSY See Illustration BUCKET CYLINDER/ B25452 NLA - Was 6649951 - A
