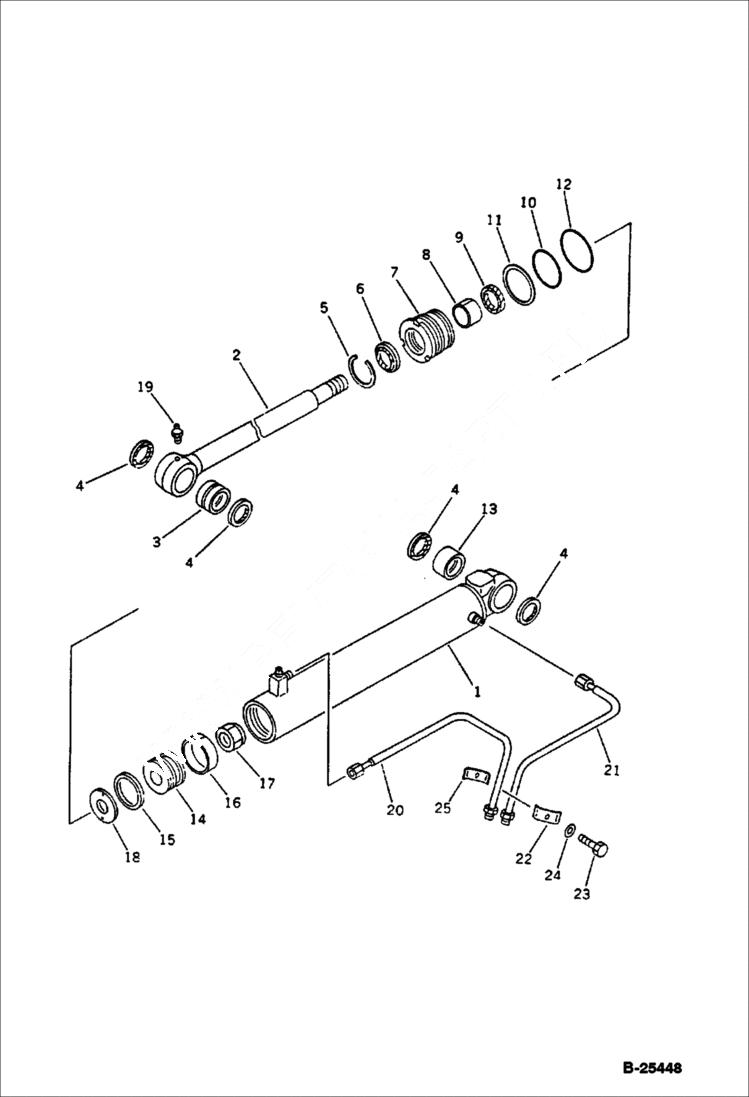

Запчасти Bobcat 76 SWING CYLINDER WORK EQUIPMENT

1

6648871

CYL ASY.

1

CYLINDER TUBE Was 20N-63-86840

2

ROD, PISTON Was 20N-63-86820

3

6637526

BUSHING

4

6637532

SEAL, DUST

5

6648863

SNAPRING

6

DUST SEAL NLA - Was 6648850 - A

7

6640397

CYL HEAD

8

6637562

BUSHING

9

6640431

PACKING

10

6637377

O-RING

11

6637400

RING, BACK-UP

12

6637346

O-RING

13

6637521

BUSHING

14

PISTON Was 707-36-70940

15

6637551

RING

16

6648857

WEAR RING

17

6637554

NUT, NYLO

18

6637818

RETAINER

19

6637430

FITTING

20

TUBE Was 20N-63-86870

21

TUBE Was 20N-63-86880

22

CLAMP Was 707-88-96790

23

6636960

BOLT

24

6637156

WASHER

25

CLAMP Was 707-88-96990
