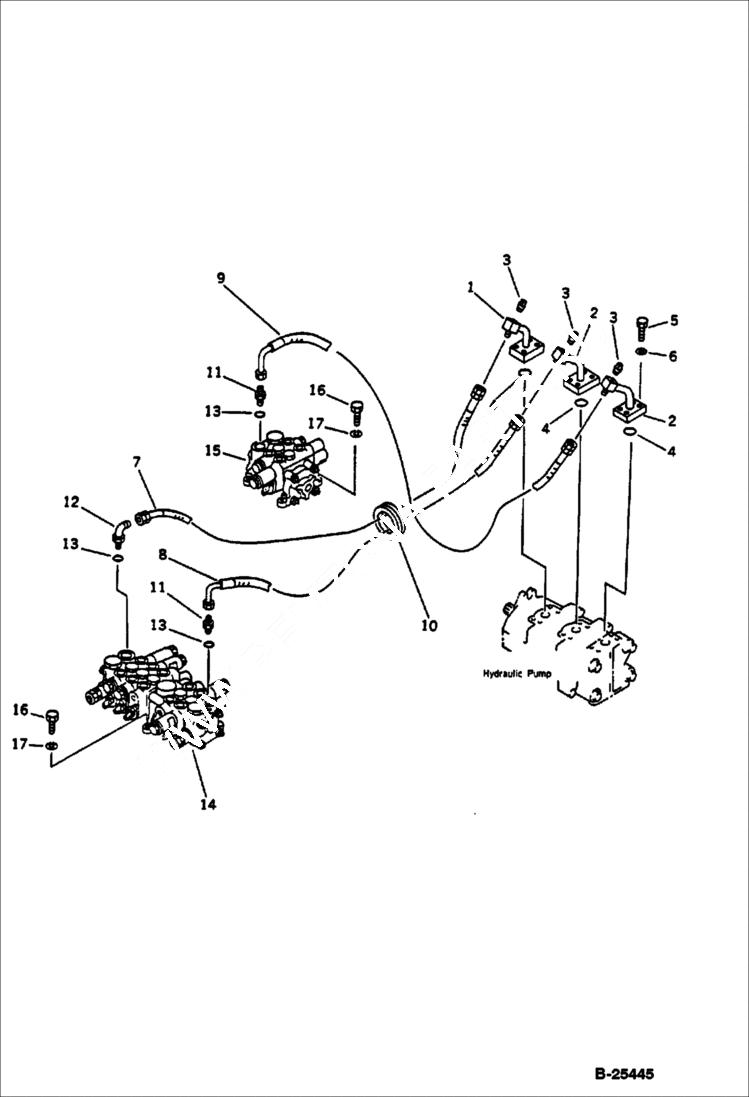

Запчасти Bobcat 76 HYDRAULIC PIPING ( PUMP TO VALVE ) WORK EQUIPMENT CONTROL SYSTEM

1

TUBE Was 20N-62-44130

2

6653465

TUBE

3

6637441

PLUG

4

6637385

O-RING

5

6636960

BOLT

6

WASHER Was 01643-50823

7

6649134

HOSE

8

6649163

HOSE

9

HOSE Was 20N-62-33180

10

6637705

GROMMET

11

6637580

NIPPLE

12

ELBOW Was 20N-62-44240

13

6637417

O-RING

14

VALVE ASSY See Illustration 5 SPOOL CONTROL VALVE/ B25465 Was 709-35-11300

15

VALVE ASSY See Illustration 2 SPOOL CONTROL VALVE/ 6211 Was 709-32-12600

16

6636960

BOLT

17

6637134

WASHER
