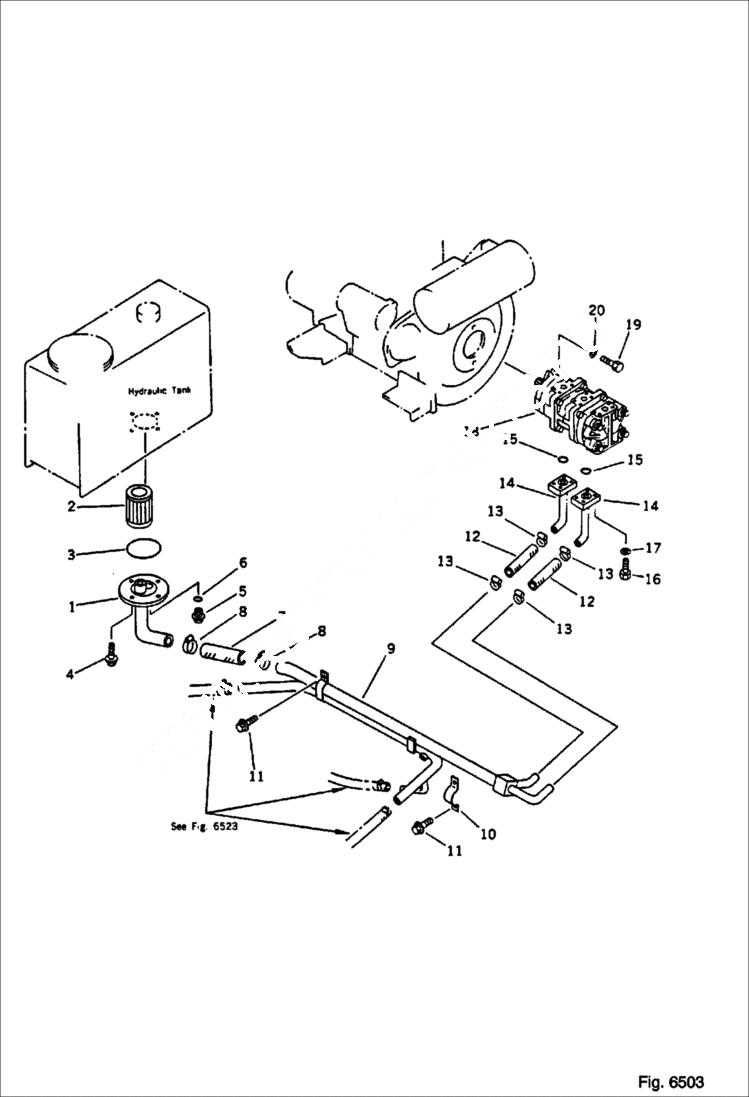

Запчасти Bobcat 76 HYDRAULIC PIPING ( TANK TO PUMP ) WORK EQUIPMENT CONTROL SYSTEM

1

6638414

TUBE

2

6638413

STRAINER

3

6637349

O-RING

4

6637066

BOLT

5

6637453

PLUG

6

6637411

O-RING

7

6642110

HOSE

8

6637626

CLAMP

9

TUBE Was 20N-62-44110

10

6637634

CLIP

11

BOLT Was 01435-01016

12

6637602

HOSE

13

6637624

CLAMP

14

TUBE Was 20N-62-44120

15

6637354

O-RING

16

6636959

BOLT

17

6637156

WASHER

18

6649201

PUMP ASSY See Illustration HYDRAULIC PUMP/ B25463

19

6636968

BOLT

20

6637157

WASHER
