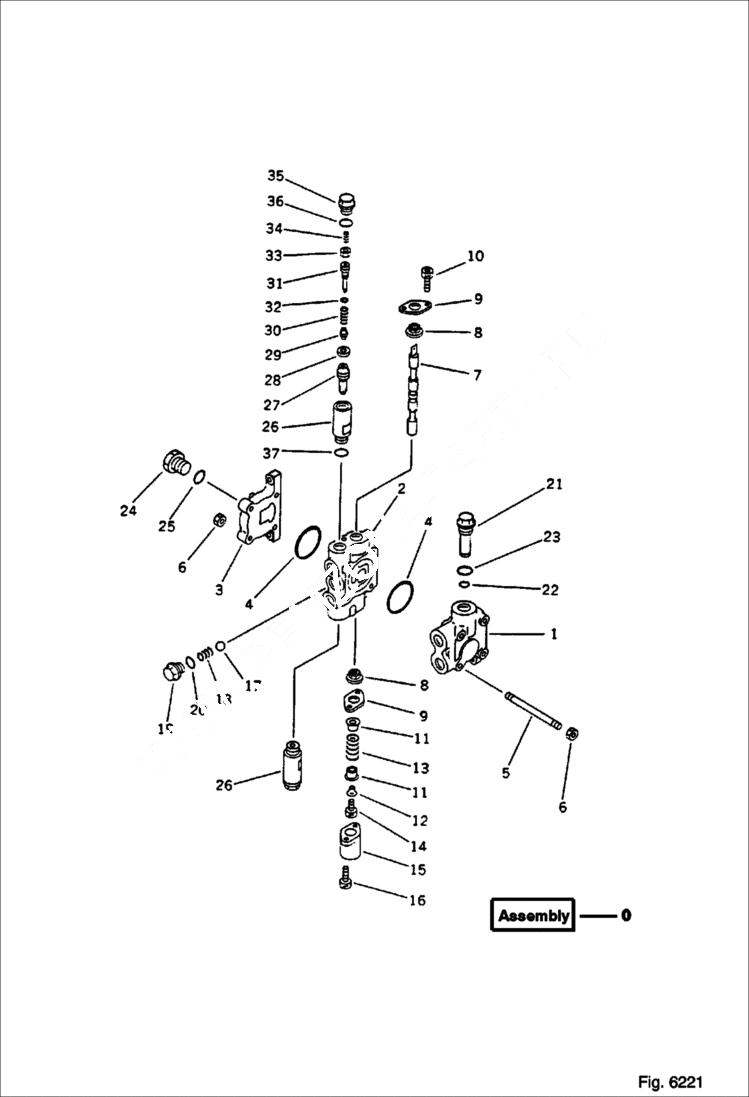

Запчасти Bobcat 76 1 SPOOL CONTROL VALVE ( FOR ATTACHMENT ) WORK EQUIPMENT CONTROL SYSTEM

0

6640570

VALVE ASSY

1

BLOCK NLA

2

BLOCK NLA

3

COVER

4

6637375

O-RING

5

6644840

STUD

6

6637107

NUT

7

SPOOL NLA

8

6640575

SEAL

9

6640576

SHIELD

10

6637049

BOLT

11

6640577

RETAINER

12

6640578

COLLAR

13

6640581

SPRING

14

6637051

BOLT

15

6640579

COVER

16

6637050

BOLT

17

6637318

BALL

18

6640583

SPRING

19

6640582

PLUG

20

6637415

O-RING

21

6646050

COVER valve

22

6637371

O-RING

23

6637411

O-RING

24

6637437

PLUG

25

6637410

O-RING

26

6640557

VALVE suction & safety

26

6640555

SLEEVE

27

VALVE NLA

28

SEAL NLA

29

POPPET NLA

30

SPRING NLA

31

PISTON NLA

32

O-RING NLA

33

NUT NLA

34

6640221

SPRING

35

6640556

PLUG

36

6637417

O-RING

37

6637410

O-RING
