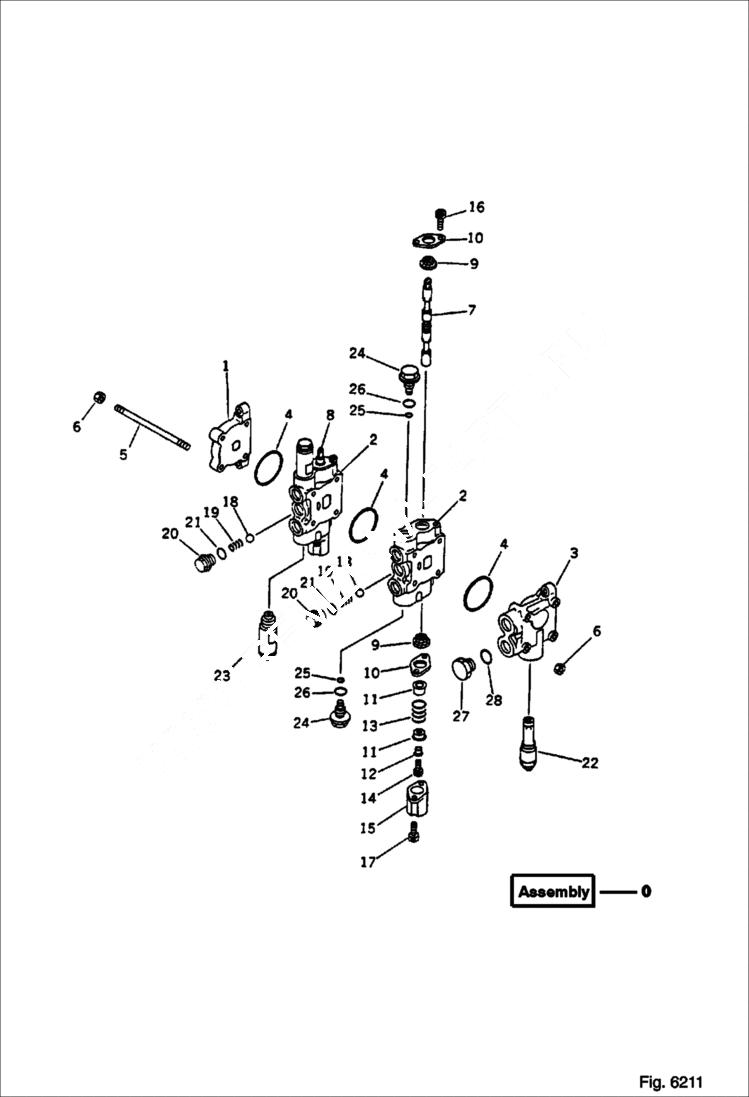

Запчасти Bobcat 76 2 SPOOL CONTROL VALVE 1 of 2 WORK EQUIPMENT CONTROL SYSTEM

0

VALVE ASSY See Illustration 2 SPOOL CONTROL VALVE/ 6212 Includes all parts in ILL. 6211 & 6212 - Was 709-32-12600

1

COVER NLA

2

BLOCK NLA

3

BLOCK NLA

4

6637375

O-RING

5

6640574

STUD

6

6637107

NUT

7

SPOOL, BLADE NLA

8

SPOOL, SWING NLA

9

6640575

SEAL

10

6640576

SHIELD

11

6640577

RETAINER

12

6640578

COLLAR

13

6640581

SPRING

14

6637051

BOLT

15

6640579

COVER

16

6637049

BOLT

17

6637050

BOLT

18

6637318

BALL

19

6640583

SPRING

20

6640582

PLUG

21

6637415

O-RING

22

6640249

VALVE Main Relief

23

VALVE NLA - Suction & Safety - Was 6640558 - A

24

6640584

PLUG

25

6640585

O-RING

26

6637410

O-RING

27

6637437

PLUG

28

6637410

O-RING
