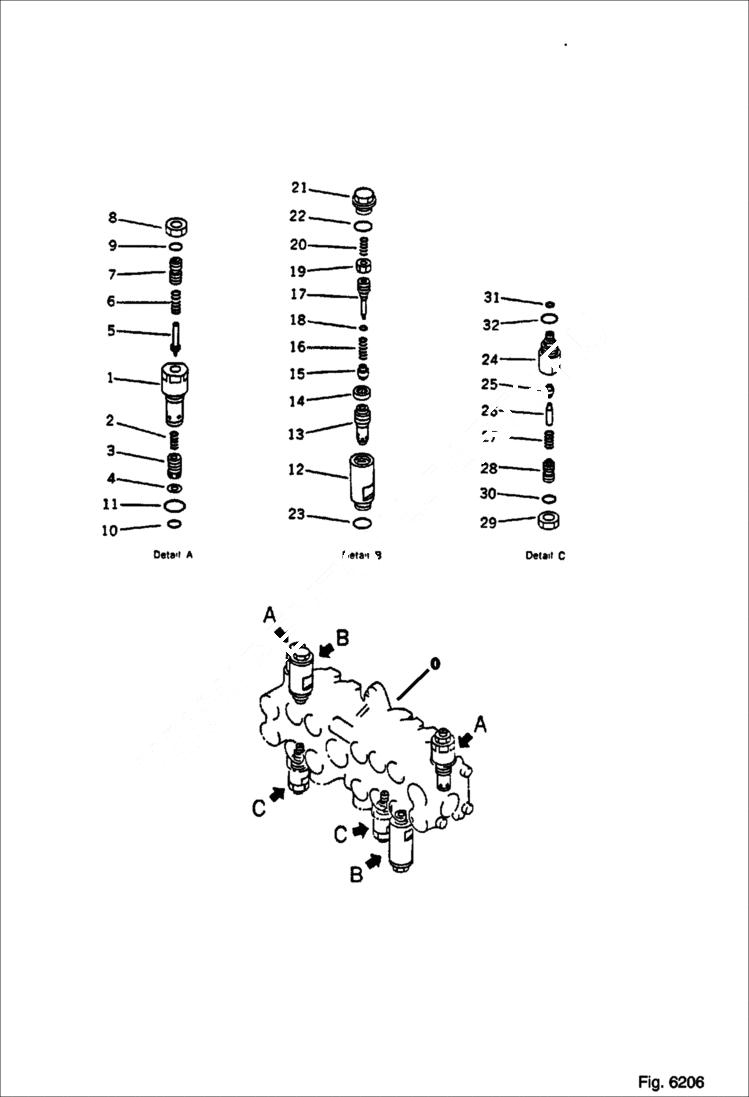

Запчасти Bobcat 76 5 SPOOL CONTROL VALVE 2 of 2 WORK EQUIPMENT CONTROL SYSTEM

0

VALVE ASSY See Illustration 5 SPOOL CONTROL VALVE/ B25465 Includes all parts in ILL. B25465 & 6206 - Was 709-35-11300

1

6640249

VALVE Main Relief - Ref. 1-11

1

SLEEVE NLA

2

6640220

SPRING

3

VALVE NLA

4

6640217

RING

5

6640258

POPPET

6

6640219

SPRING

7

6640218

SCREW

8

6637115

NUT

9

6637335

O-RING

10

6640243

O-RING

11

6637411

O-RING

12

VALVE ASY NLA - Suction & Safety - Ref. 12-23 - Was 6640558 - A

12

6640555

SLEEVE

13

VALVE NLA

14

SEAL NLA

15

POPPET NLA

16

SPRING NLA

17

PISTON NLA

18

O-RING NLA

19

NUT NLA

20

6640221

SPRING

21

6640556

PLUG

22

6637417

O-RING

23

6637410

O-RING

24

6640564

VALVE ASY Safety - Ref. 24-32

24

SLEEVE NLA

25

POPPET NLA

26

PISTON NLA

27

SPRING NLA

28

SCREW NLA

29

NUT NLA

30

O-RING NLA

31

6640585

O-RING

32

6637410

O-RING
