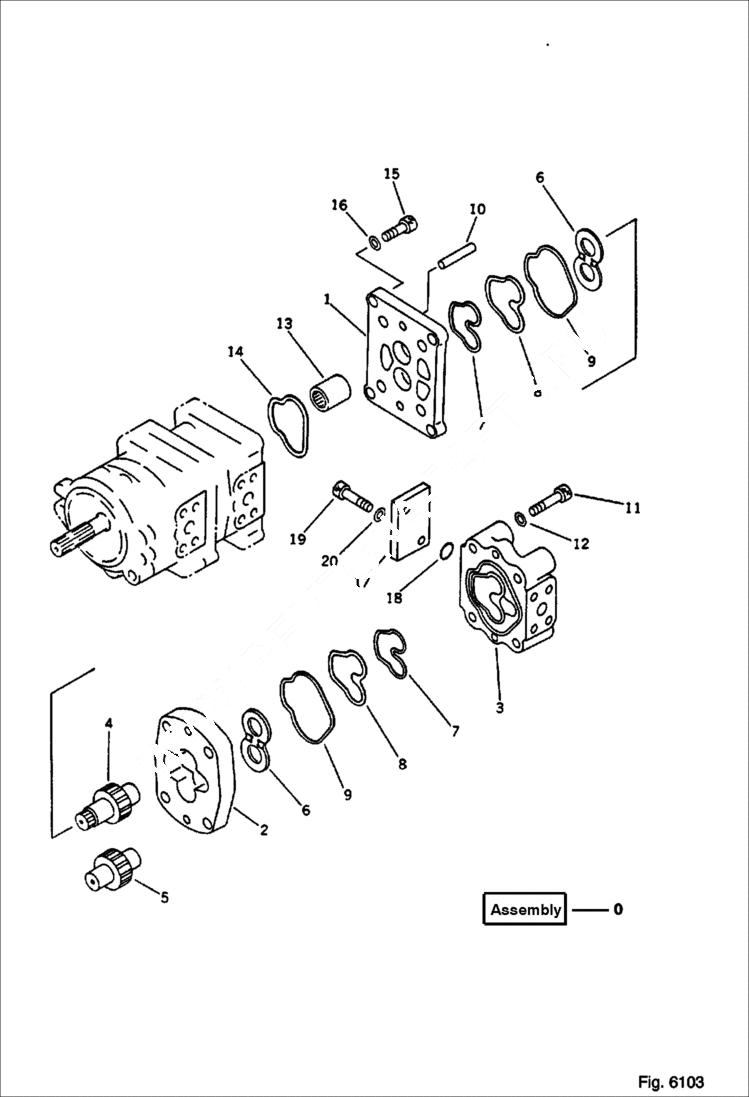

Запчасти Bobcat 76 HYDRAULIC PUMP 3 of 3 WORK EQUIPMENT CONTROL SYSTEM

0

6649201

PUMP ASSY See Illustration HYDRAULIC PUMP/ B25464 See Illustration HYDRAULIC PUMP/ B25463 Includes all parts in ILL. B25463, B25464, & 6103

0

6654203

HYD PUMP (SBR6)

1

BRACKET NLA

2

CASE, GEAR NLA

3

COVER NLA

4

GEAR, DRIVE NLA

5

GEAR, DRIVEN NLA

6

6661680

WEARPLATE side

7

6653769

RG,BK UP

8

6653770

SEAL

9

6651172

SEAL

10

6640321

PIN

11

BOLT Was 01252-31280

12

WASHER Was 01643-51232

13

6640316

COUPLING

14

6649196

SEAL

15

6637052

BOLT

16

WASHER Was 01643-50823

17

PLATE Was 705-40-80940

18

6637342

O-RING

19

6637052

BOLT

20

WASHER Was 01643-50823
