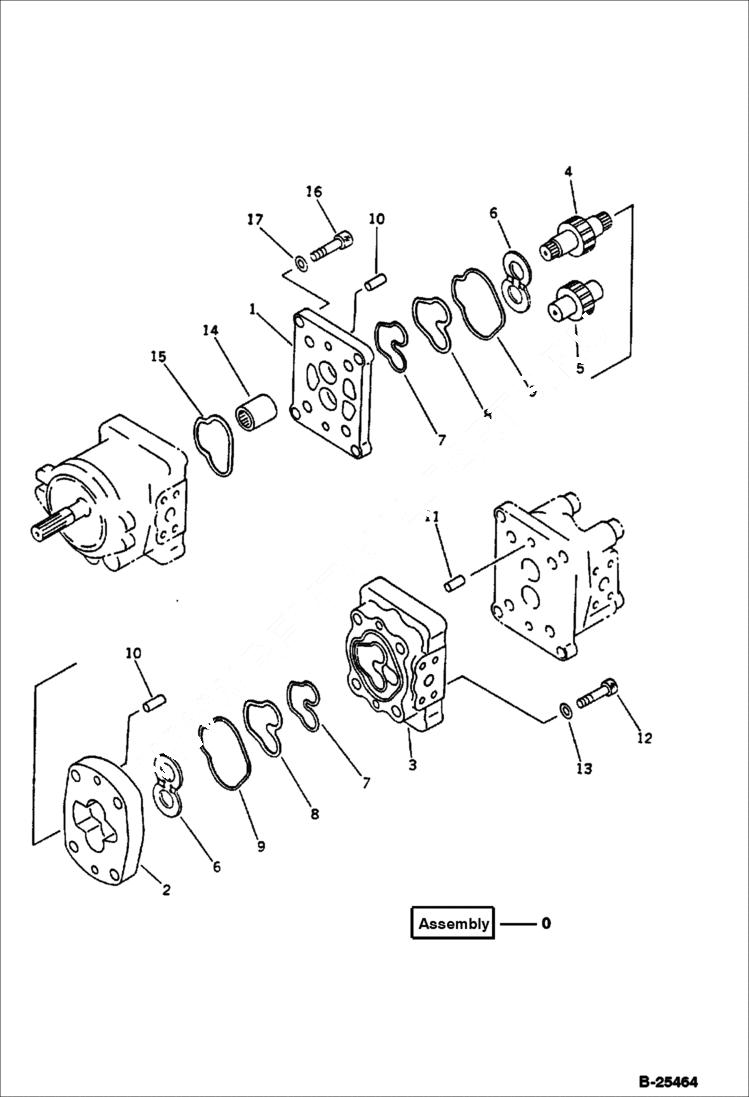

Запчасти Bobcat 76 HYDRAULIC PUMP 2 of 3 WORK EQUIPMENT CONTROL SYSTEM

0

6649201

PUMP ASSY See Illustration HYDRAULIC PUMP/ 6103 See Illustration HYDRAULIC PUMP/ B25463 Includes all parts in ILL. B25463, B25464, & 6103

0

6652829

PUMP ASY (SBR8A)

1

BRACKET NLA

2

CASE, GEAR NLA

3

CARRIER NLA

4

GEAR, DRIVE NLA

5

GEAR, DRIVEN NLA

6

6661680

WEARPLATE side

7

6653769

RG,BK UP

8

6653770

SEAL

9

6651172

SEAL

10

6637175

PIN, DOWEL

11

6640315

PIN

12

BOLT Was 01252-31265

13

WASHER Was 01643-51232

14

6640316

COUPLING

15

6649196

SEAL

16

6637052

BOLT

17

WASHER Was 01643-50823
