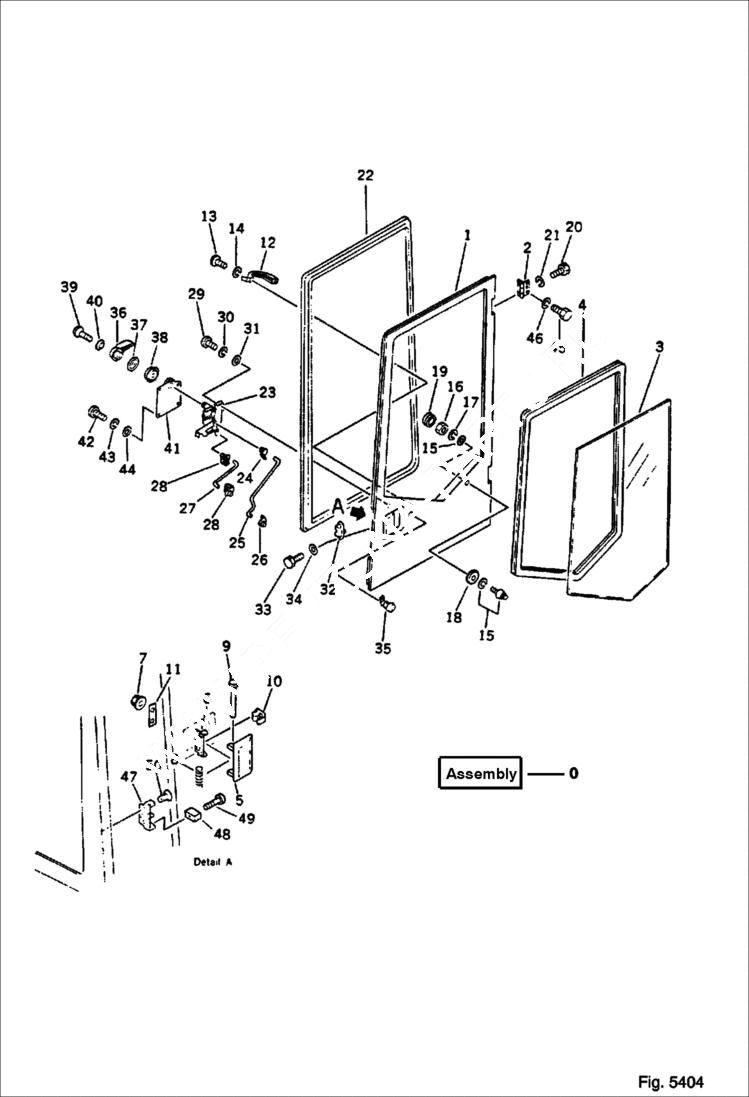

Запчасти Bobcat 76 OPERATOR 4 OF 4 GUARD

0

6642602

CAB ASS'Y See Illustration OPERATOR'S CAB/ 5401 See Illustration OPERATOR/ 5403 See Illustration OPERATOR/ 5402 Includes all parts in ILL.5401,5402,5403,5404

1

6639457

DOOR ASMY 2 Hinge

1

6641342

DOOR ASSY 3 Hinge

1

6639481

DOOR 2 Hinge

1

6646023

DOOR 3 Hinge

2

6639482

HINGE

3

6639491

GLASS

4

6639496

STRIP, WEATHER

5

6639484

HANDLE

6

6639507

BRACKET

7

NUT Was 205-54-66710

8

6639333

SPRING

9

6639334

PIN

10

6639335

CUSHION

11

6639336

PACKING

12

6638299

GRIP

13

6637032

SCREW

14

6637126

WASHER

15

6639460

CATCHER

16

6637107

NUT

17

6637134

WASHER

18

6639462

SHIM

19

6637758

CAP

20

6636946

BOLT

21

6637135

WASHER

22

6639499

SEAL

23

6639326

CONTROL

24

6639328

RING, SNAP

25

6639485

ROD

26

6639328

RING, SNAP

27

6639486

ROD

28

6639327

RING, SNAP

29

6637038

SCREW

30

6637133

WASHER

31

6637145

WASHER

32

6639319

LOCK ASY

33

6636953

BOLT

34

6637155

WASHER

35

6639316

LOCK ASSY

36

6639204

HANDLE

36

6639204

HANDLE

37

6639205

SHIELD

38

6639909

MOUNT

39

6637046

SCREW

40

6639329

WASHER

41

6639483

SHIELD

42

6637027

SCREW

43

6637125

WASHER

44

6637143

WASHER

45

6636946

BOLT

46

6637135

WASHER

47

6639320

STRIKER

48

6643089

STRIKER

49

6637029

SCREW

50

STRIP Was 203-54-43570
