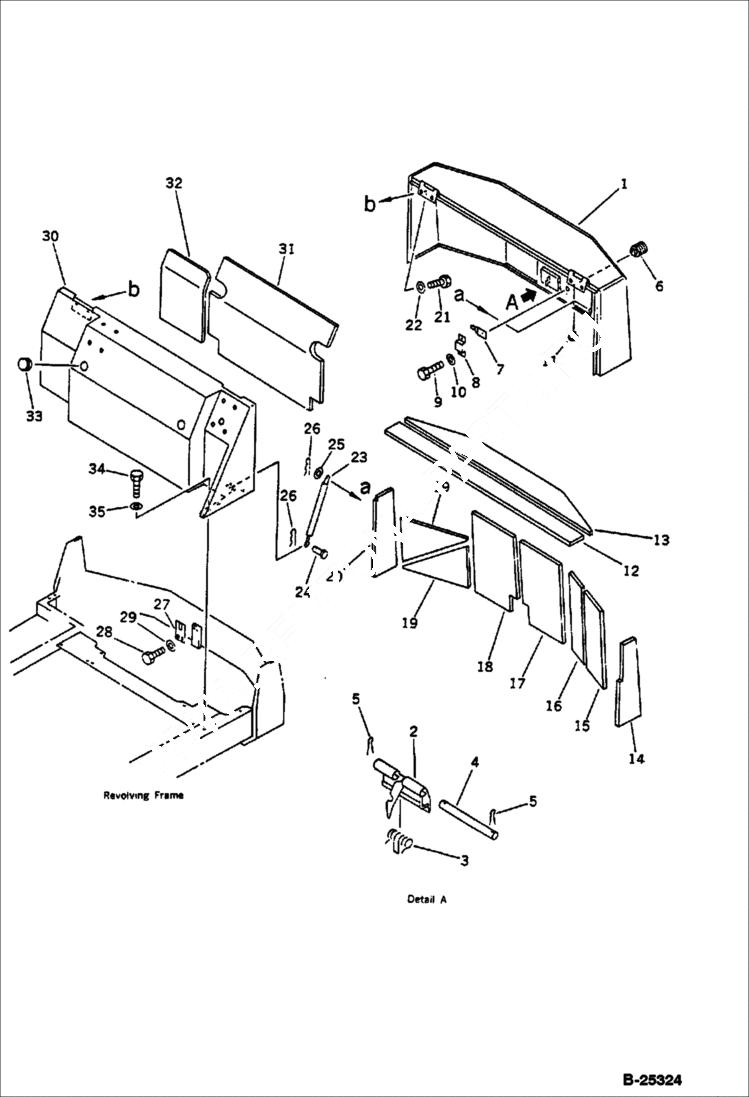

Запчасти Bobcat 76 MACHINE CAB GUARD

1

HOOD ASSY Komatsu S/N 10501-10554 - Was 20N-54-42202

1

6673126

ENG. HOOD Komatsu S/N 10555 & Abv

2

6638779

LEVER Komatsu S/N 10501-10554

2

6642839

LEVER Komatsu S/N 10555 & Abv

3

6639464

SPRING

4

6638780

PIN

5

6637198

PIN, COTTER

6

6642599

LOCK ASSY Komatsu S/N 10555 & Abv

6

STOPPER Was 20W-54-12210

7

6642783

PLATE Komatsu S/N 10555 & Abv

8

6642926

COVER Komatsu S/N 10555 & Abv

9

6636956

BOLT Komatsu S/N 10555 & Abv

10

6637156

WASHER Komatsu S/N 10555 & Abv

11

6639202

STOPPER Komatsu S/N 10555 & Abv

11

STOPPER Komatsu S/N 10501-10554 -- Was 20W-54-12210

12

SHEET Was 20N-54-42280

13

SHEET Was 20N-54-42222

14

SHEET Was 20N-54-42232

15

SHEET Was 20N-54-42242

16

SHEET Was 20N-54-42290

17

SHEET Komatsu S/N 10501-10554 - Was 20N-54-42252

17

SHEET Komatsu S/N 10501-10554 - Was 20N-54-47220

18

SHEET Was 20N-54-42310

19

SHEET Was 20N-54-42262

20

SHEET Was 20N-54-42272

21

6636967

BOLT

22

6637157

WASHER

23

6665397

SPRING

24

6637257

PIN

25

6637146

WASHER

26

6637212

PIN

27

LOCK Was 20N-54-42330

28

6636967

BOLT

29

6637157

WASHER

30

COVER ASSY Was 20N-54-47100

31

6638303

SEAT sheet

32

SHEET Was 20N-54-42120

33

6637759

CAP

34

6636967

BOLT

35

6637157

WASHER
