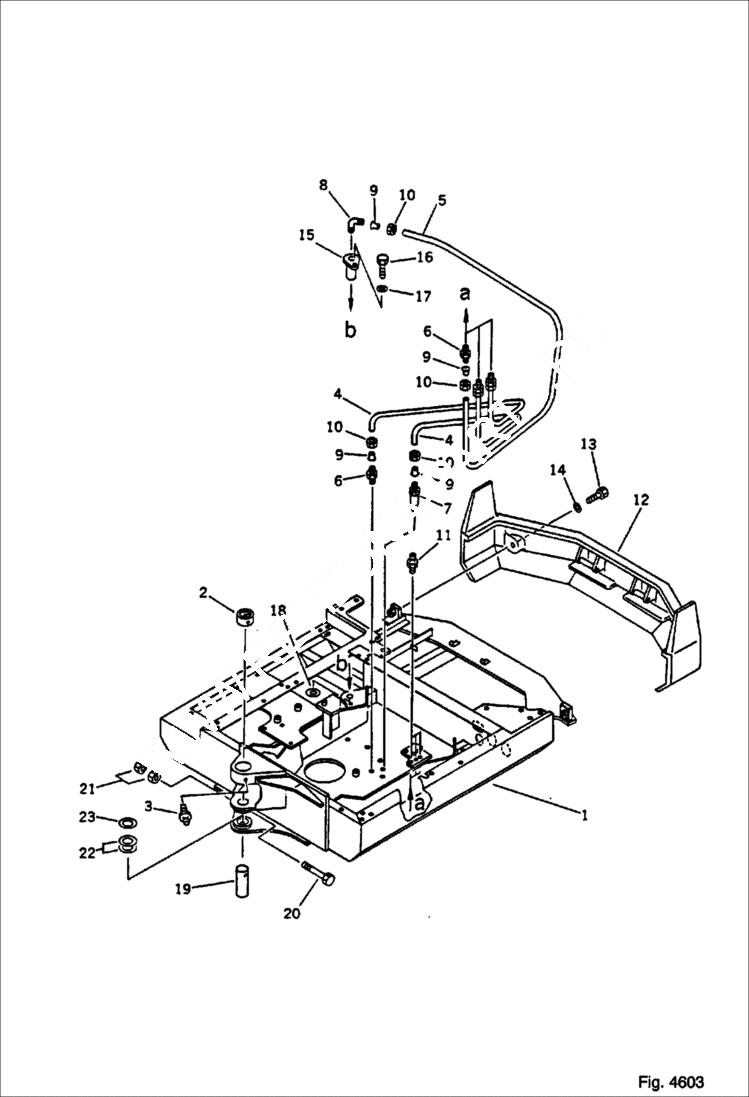

Запчасти Bobcat 76 REVOLVING FRAME AND COUNTERWEIGHT CONTROL SYSTEM AND REVOLVING FRAME

1

FRAME ASSY revolving - Was 20N-46-48500

2

6638500

BUSHING

3

6637430

FITTING

4

TUBE Was 20N-46-41590

5

6638295

TUBE

6

6638568

CONNECTOR

7

6638296

CONNECTOR

8

6638567

ELBOW

9

6637661

SLEEVE

10

6637664

NUT

11

6637430

FITTING

12

6663902

COUNT WGT

13

6636999

BOLT

14

6637160

WASHER

15

PIN Was 20N-70-44580

16

6636966

BOLT

17

6637157

WASHER

18

6642713

SPACER 1.0MM

19

6659981

PIN

20

6642011

BOLT

21

NUT Was 01580-11411

22

6638502

SHIM 1.0MM

23

6642719

SPACER 0.5MM
