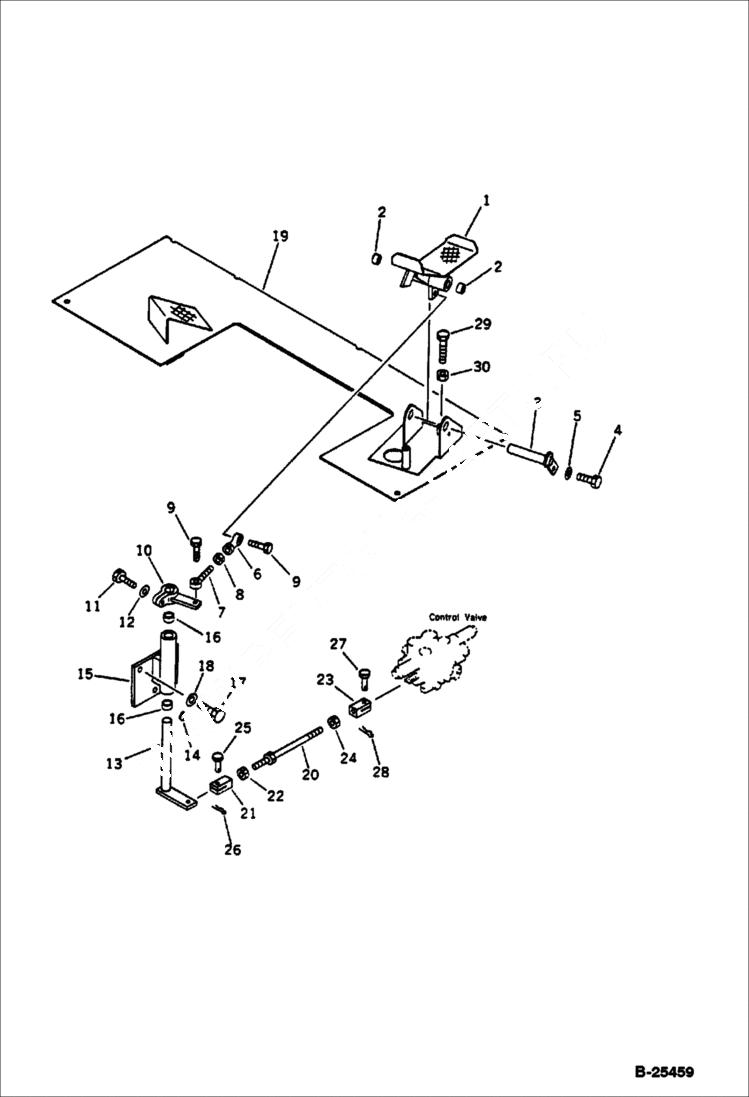

Запчасти Bobcat 76 ATTACHMENT CONTROL PEDAL CONTROL SYSTEM AND REVOLVING FRAME

1

PEDAL Was 20M-973-4510

2

6637746

BUSHING

3

6638512

SHAFT

4

6636958

BOLT

5

6637156

WASHER

6

6637309

ROD END

7

6637313

END

8

6637107

NUT

9

6636958

BOLT

10

LEVER Was 20N-973-4520

11

6636960

BOLT

12

WASHER Was 01643-50823

13

SHAFT Was 20N-973-4540

14

6637173

KEY

15

BRACKET Was 20N-973-4530

16

6637746

BUSHING

17

6636969

BOLT

18

6637157

WASHER

19

PLATE, FLOOR Was 20N-973-4610

20

ROD Was 04248-30818

21

6637263

YOKE

22

6637107

NUT

23

6638264

YOKE L.H. THREAD

24

6642030

NUT L.H. THREAD

25

6637255

PIN

26

6642055

PIN

27

6637248

PIN

28

6642053

PIN

29

6636962

BOLT

30

6637107

NUT
