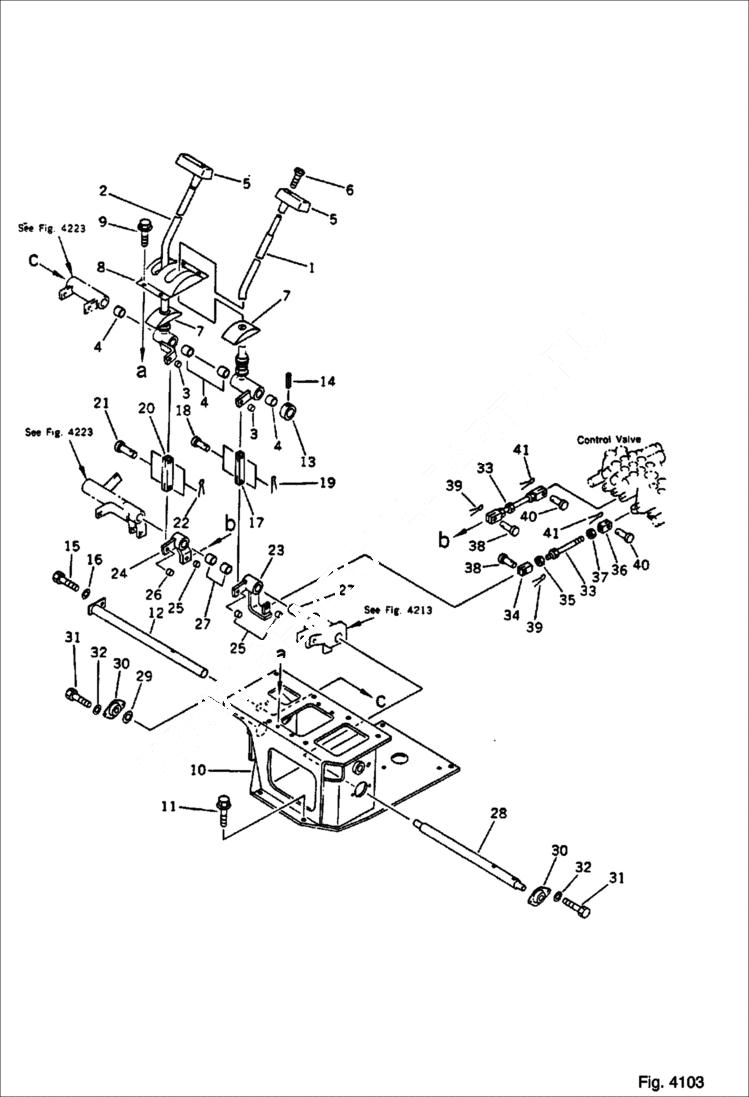

Запчасти Bobcat 76 TRAVEL CONTROL LEVER CONTROL SYSTEM AND REVOLVING FRAME

1

LEVER, L.H Was 20N-43-42341

2

LEVER, R.H. Was 20N-43-42331

3

BUSHING

4

BEARING Was 195-61-34140

5

6639172

KNOB

6

6637047

SCREW

7

6638686

COVER

8

COVER Was 21U-54-11470

9

6637066

BOLT

10

BRACKET Was 20N-43-421111

11

6637069

BOLT

12

SHAFT Was 20N-43-43211

13

STOPPER Was 20N-43-48220

14

6637191

PIN, ROLL

15

6636958

BOLT

16

6637156

WASHER

17

YOKE Was 20N-43-42591

18

6637255

PIN

19

6637197

PIN, COTTER

20

YOKE Was 20N-43-42551

21

PIN Was 04205-11026

22

6637199

PIN, COTTER

23

LEVER Was 20N-43-42451

24

LEVER Was 20N-43-42441

25

BUSHING

26

BUSHING

27

BEARING Was 195-61-34140

28

SHAFT Was 20N-43-42411

29

6642042

WASHER

30

6642496

BEARING

31

6636958

BOLT

32

6637156

WASHER

33

6645870

ROD

34

6637267

YOKE

35

6637107

NUT

36

6638264

YOKE L.H. Thread

37

6642030

NUT L.H. Thread

38

6637255

PIN

39

6637197

PIN, COTTER

40

6637248

PIN

41

6642051

PIN, COTT
