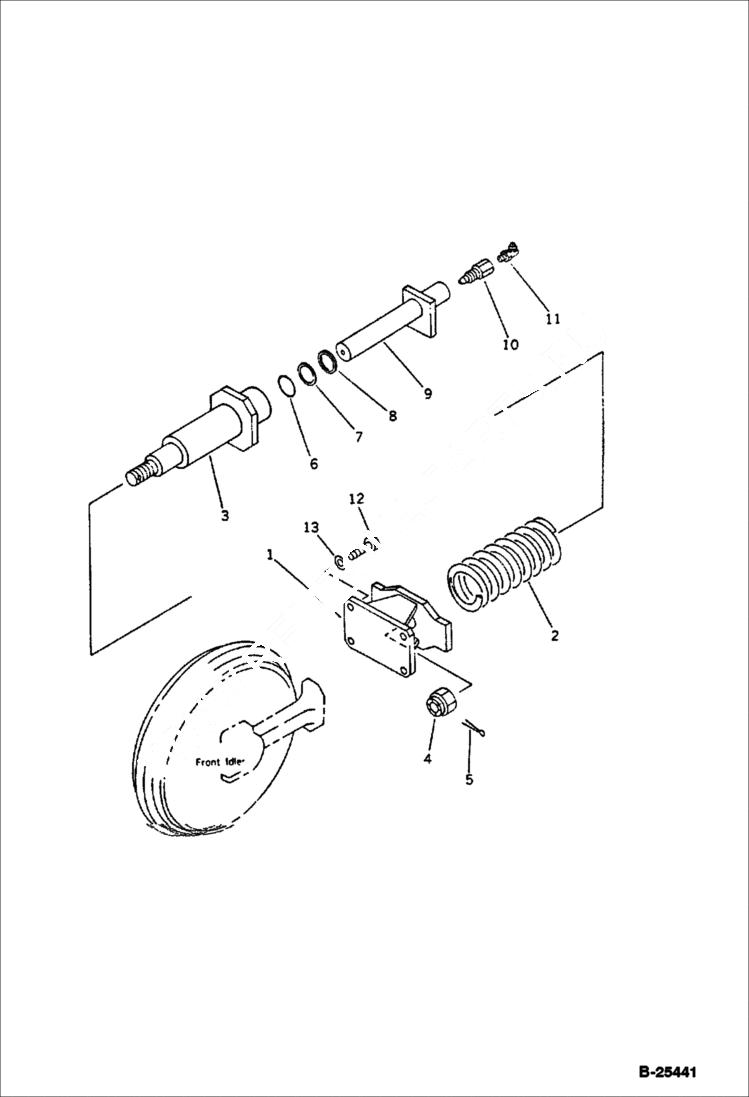

Запчасти Bobcat 76 RECOIL SPRING UNDERCARRIAGE

1

BRACKET Komatsu S/N 10501-10515 - Was 20N-30-41850

1

BRACKET Komatsu S/N 10516 & Abv - Was 20N-30-41851

2

6638560

SPRING

3

CYLINDER Komatsu S/N 10501-10515 - Was 20N-30-41812

3

6638250

CYLINDER Komatsu S/N 10516 & Abv

4

NUT Komatsu S/N 10501-10515 - Was 01590-12226

4

NUT Komatsu S/N 10516 & Abv - Was 21U-30-11130

5

PIN, COTTER Komatsu S/N 10501-10515 - Was 04050-15040

5

6637208

PIN, COTT Komatsu S/N 10516 & Abv

6

6637386

O-RING

7

6637405

RING, BACK-UP

8

6638252

SEAL, DUST

9

6637293

ROD

10

6637960

VALVE

11

6637432

FITTING

12

6636981

BOLT

13

WASHER Was 01643-51232
