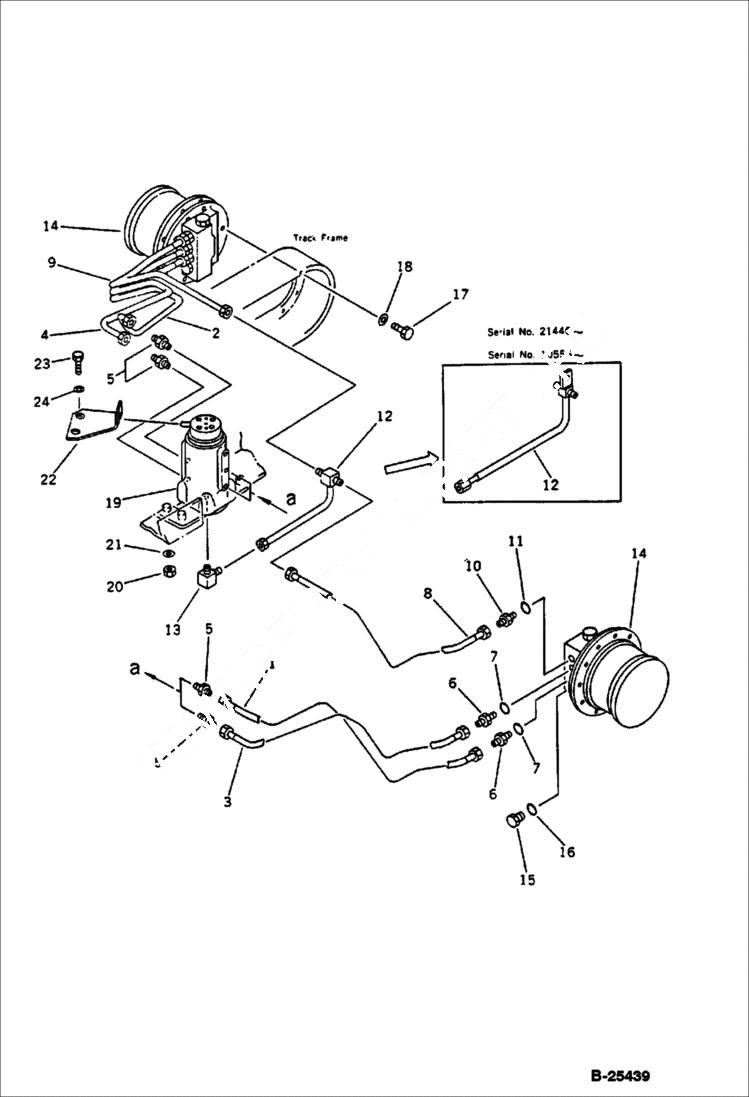

Запчасти Bobcat 76 HYDRAULIC PIPING (TRAVEL MOTOR LINE)(LOWER) UNDERCARRIAGE

1

TUBE Was 20N-62-41511

2

TUBE Was 20N-62-41521

3

TUBE Was 20N-62-41531

4

TUBE Was 20N-62-41541

5

6638411

CONNECTOR

6

6638057

NIPPLE

7

6637371

O-RING

8

6665388

TUBE

9

TUBE Was 20N-62-41561

10

6638397

NIPPLE

11

6637369

O-RING

12

6638408

TUBE Komatsu S/N 10501-10552

12

TUBE Komatsu S/N 10555 & Abv - Was 20C-62-11170

13

6638078

ELBOW

14

6649159

MOTOR ASY

15

6638396

PLUG

16

6637369

O-RING

17

6636980

BOLT

18

6637158

WASHER

19

6640262

CONNECTOR See Illustration SWIVEL JOINT/ B25444

20

NUT Was 01580-10806

21

6637156

WASHER

22

PLATE Was 20N-62-44461

23

6636966

BOLT

24

6637157

WASHER
