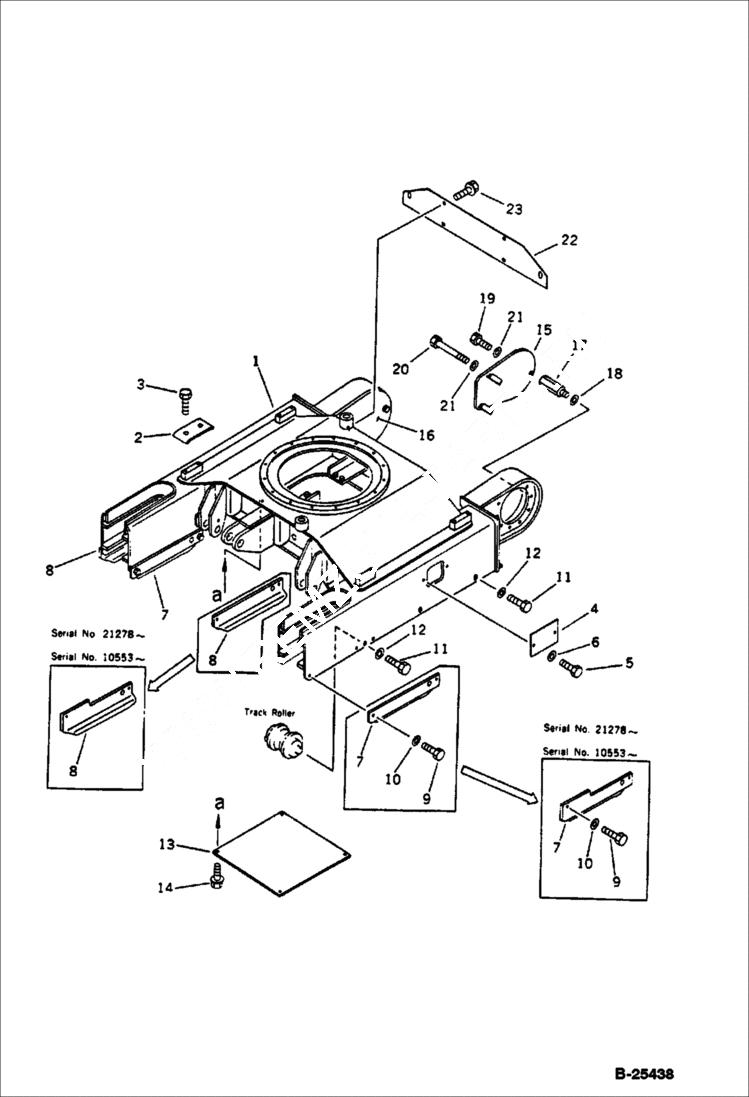

Запчасти Bobcat 76 TRACK FRAME UNDERCARRIAGE

1

FRAME, TRACK Komatsu S/N 10501-10552 - Was 20N-30-41611

1

FRAME, TRACK Komastu S/N 10553 & Abv - Was 20N-30-41612

2

6638550

SHIELD

3

6636979

BOLT

4

6638247

COVER

5

6636966

BOLT

6

6637135

WASHER

7

6661600

GUARD Komatsu S/N 10501-10552 - L.H. Outer & R.H. Inner

7

GUARD, L.H. OUTER AND R.H. INNER Komatsu S/N 10553 & Abv - Was 20N-30-41712

8

GUARD, L.H. INNER AND R.H. OUTER Komatsu S/N 10501-10552 - Was 20N-30-41721

8

GUARD, L.H INNER AND R.H. OUTER Komatsu S/N 10553 & Abv - Was 20N-30-41722

9

6636991

BOLT

10

6637159

WASHER

11

6636991

BOLT

12

6637159

WASHER

13

6642452

COVER

14

6637069

BOLT

15

COVER, L.H. Was 20N-30-41651

16

COVER, R.H. Was 20N-30-41661

17

6638246

SHIM

18

6637158

WASHER

19

6636966

BOLT

20

6636977

BOLT

21

6637157

WASHER

22

6655442

COVER

23

6637066

BOLT
